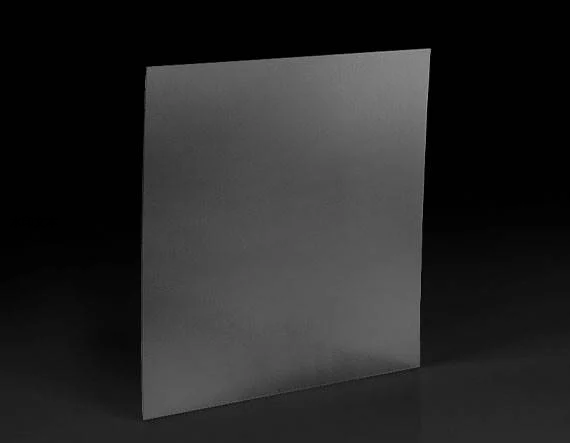

金属线栅偏振片

金属线栅偏振片

￥ 0.00
0.00

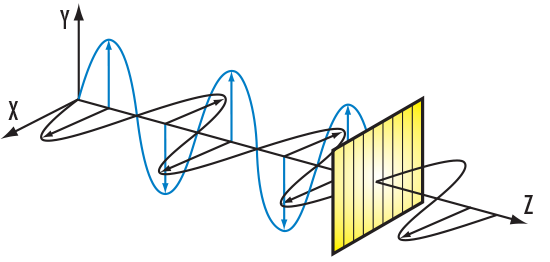

金属线栅偏振片非常适用于需要高对比度偏振的应用，包括微型投影机、偏振分光棱镜以及平视显示器。金属线栅偏振片设计用于传输所需的偏振状态同时又可反射不需要的状态。因为这些偏振片可在高达45°的入射角中实现频谱平坦性能，因此也可作为偏振分光棱镜使用。此外，金属线栅偏振片可在高温或高湿度环境中实现卓越耐久性，同时也可在400nm至1200nm的可见与近红外光谱范围中提供出色性能。


  • 高对比度，反射设计

  • 卓越的可见与近红外性能

  • 在高温与高湿度环境下实现出色的耐久性

                           产品

标题产品编码AOI (°)Dia. (mm)消光比基底工作温度 (°C)尺寸 (mm)厚度 (mm)厚度容差 (mm)透射率 (%) 类型尺寸容差 (mm)
25mm Dia. Wire Grid Polarizing Film (WG-1)70-5480 - 45 25.00 ±0.302000:1 Avg (Typical, 400-1200nm)Aluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions
0.19 ±0.30
Single: 44 Avg (Typical, 400-1200nm); Parallel: 36 Avg (Typical, 400-1200nm); Crossed: 0.02 Avg (Typical, 400-1200nm) Linear Polarizer
12.5 x 12.5mm Wire Grid Polarizing Film (WG-1) 70-5460 - 45
2000:1 Avg (Typical, 400-1200nm)Aluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions 12.50 x 12.50 ±0.300.19 ±0.30
Single: 44 Avg (Typical, 400-1200nm); Parallel: 36 Avg (Typical, 400-1200nm); Crossed: 0.02 Avg (Typical, 400-1200nm) Linear Polarizer
20 x 20mm Wire Grid Polarizing Film (WG-1)70-5470 - 45
2000:1 Avg (Typical, 400-1200nm)Aluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions 20.00 x 20.00 ±0.300.19 ±0.30
Single: 44 Avg (Typical, 400-1200nm); Parallel: 36 Avg (Typical, 400-1200nm); Crossed: 0.02 Avg (Typical, 400-1200nm) Linear Polarizer
25 x 25mm Wire Grid Polarizing Film (WG-1)70-5490 - 45
2000:1 Avg (Typical, 400-1200nm)Aluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions 25.00 x 25.00 ±0.300.19 ±0.30
Single: 44 Avg (Typical, 400-1200nm); Parallel: 36 Avg (Typical, 400-1200nm); Crossed: 0.02 Avg (Typical, 400-1200nm) Linear Polarizer
30 x 30mm Wire Grid Polarizing Film (WG-1)70-5500 - 45
2000:1 Avg (Typical, 400-1200nm)Aluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions 30.00 x 30.00 ±0.300.19 ±0.30
Single: 44 Avg (Typical, 400-1200nm); Parallel: 36 Avg (Typical, 400-1200nm); Crossed: 0.02 Avg (Typical, 400-1200nm) Linear Polarizer
50 x 50mm Wire Grid Polarizing Film (WG-1)70-5510 - 45
2000:1 Avg (Typical, 400-1200nm)Aluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions 50.00 x 50.00 ±0.500.19 ±0.30
Single: 44 Avg (Typical, 400-1200nm); Parallel: 36 Avg (Typical, 400-1200nm); Crossed: 0.02 Avg (Typical, 400-1200nm) Linear Polarizer
75 x 75mm Wire Grid Polarizing Film (WG-1)70-5520 - 45
2000:1 Avg (Typical, 400-1200nm)Aluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions 75.00 x 75.00 ±0.500.19 ±0.30
Single: 44 Avg (Typical, 400-1200nm); Parallel: 36 Avg (Typical, 400-1200nm); Crossed: 0.02 Avg (Typical, 400-1200nm) Linear Polarizer
12.5 x 12.5mm Stabilized Wire Grid Polarizing Film20-2320 - 45
>1415:1 @ 0° AOI, 550nmAluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions 12.5 x 12.5 0.19 ±0.030 84.9  (typical @ 550 nm) Linear Polarizer ±0.5
20 x 20mm Stabilized Wire Grid Polarizing Film20-2330 - 45
>1415:1 @ 0° AOI, 550nmAluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions 20 x 20 0.19 ±0.030 84.9  (typical @ 550 nm) Linear Polarizer ±0.5
25mm Dia. Stabilized Wire Grid Polarizing Film20-2340 - 45 25.00 +0/-0.3>1415:1 @ 0° AOI, 550nmAluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions
0.19 ±0.030 84.9  (typical @ 550 nm) Linear Polarizer
25 x 25mm Stabilized Wire Grid Polarizing Film20-2350 - 45
>1415:1 @ 0° AOI, 550nmAluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions 25 x 25 0.19 ±0.030 84.9  (typical @ 550 nm) Linear Polarizer ±0.5
50 x 50mm Stabilized Wire Grid Polarizing Film20-2370 - 45
>1415:1 @ 0° AOI, 550nmAluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions 50 x 50 0.19 ±0.030 84.9  (typical @ 550 nm) Linear Polarizer ±1
75 x 75mm Stabilized Wire Grid Polarizing Film20-2380 - 45
>1415:1 @ 0° AOI, 550nmAluminium Wires on COP 60 Max @ 90% RH 105 in dry conditions 75 x 75 0.19 ±0.030 84.9  (typical @ 550 nm) Linear Polarizer +0/-0.3

                          产品概览

如果您需要任何尺寸在3毫米至600毫米之间的圆形、方形或长方形的聚合物相位延迟膜，请访问我们的 偏振片定制工具。  我们会立即提供报价，并能在大约5周内按您要求的尺寸完成交付。  列出了标准制造公差和限制的完整清单。  如果想根据您的要求完全定制聚合物偏振片，请访问我们的 聚合物偏振片定制能力 专题页面。
