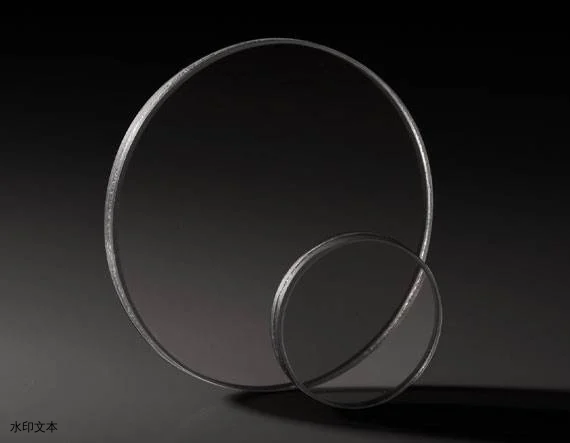

高对比度玻璃线性偏振片

高对比度玻璃线性偏振片

￥ 0.00
0.00


TECHSPEC® 高对比度玻璃线性偏振片提供卓越的消光比，并备有多种尺寸型号。在400至700nm的波长范围内，单个偏振片能透射约25%的随机偏振入射光。玻璃基底经过抗反射（AR）镀膜处理，有效减少因反射引起的光损失。TECHSPEC® 高对比度玻璃线性偏振片适用于广泛的工业和实验室应用场景。这些玻璃偏振片的直径范围涵盖6.25mm至5080mm。


  • 在 400nm-700nm 之间有极高消光比  10,000:1

  • 偏振轴带参考标记

  • 增透镀膜设计以最小化反射损失

                           产品

标题产品编码涂层Dia. (mm)消光比基底工作温度 (°C)厚度 (mm)厚度容差 (mm)透射率 (%) 传输容差 (%)类型平行度（弧分）
6.25mm直径，高性能玻璃线性偏振片66-180AR: Ravg <0.5% @ 400 - 700nm 6.25 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4
9.00mm直径，高性能玻璃线性偏振片66-181AR: Ravg <0.5% @ 400 - 700nm 9.00 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4
直径 10.0mm，高性能玻璃线性偏振片47-314AR: Ravg <0.5% @ 400 - 700nm 10.00 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4
直径12.5mm 高性能玻璃线性偏振片47-215AR: Ravg <0.5% @ 400 - 700nm 12.50 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4
15mm直径，高性能玻璃线性偏振片49-077AR: Ravg <0.5% @ 400 - 700nm 15.00 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4
直径20.0mm，高性能玻璃线性偏振片47-315AR: Ravg <0.5% @ 400 - 700nm 20.00 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4
直径25mm，高性能玻璃线性偏振片47-216AR: Ravg <0.5% @ 400 - 700nm 25.00 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4
直径25.4mm，高性能玻璃线性偏振片47-316AR: Ravg <0.5% @ 400 - 700nm 25.40 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4
30mm直径，高性能玻璃线性偏振片49-078AR: Ravg <0.5% @ 400 - 700nm 30.00 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4
40.00mm直径，高性能玻璃线性偏振片66-182AR: Ravg <0.5% @ 400 - 700nm 40.00 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4
50.80mm直径，高性能玻璃线性偏振片66-183AR: Ravg <0.5% @ 400 - 700nm 50.80 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4
直径50mm，高性能玻璃线性偏振片47-217AR: Ravg <0.5% @ 400 - 700nm 50.00 10,000:1 Polymer Film between B270 -25 to +65 2.00 ±0.2 25 (for random polarization)±2 Linear Polarizer <4

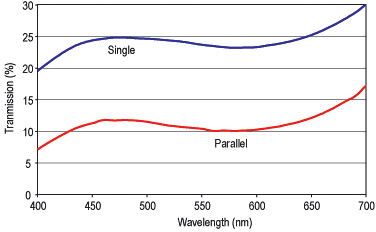

                                    技术数据
