高对比度线性偏振膜 (XP42)

高对比度线性偏振膜 (XP42)

￥ 0.00
0.00

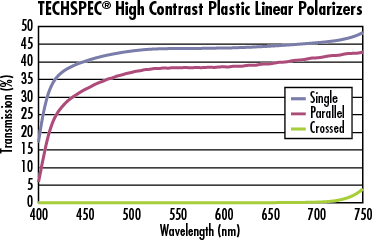

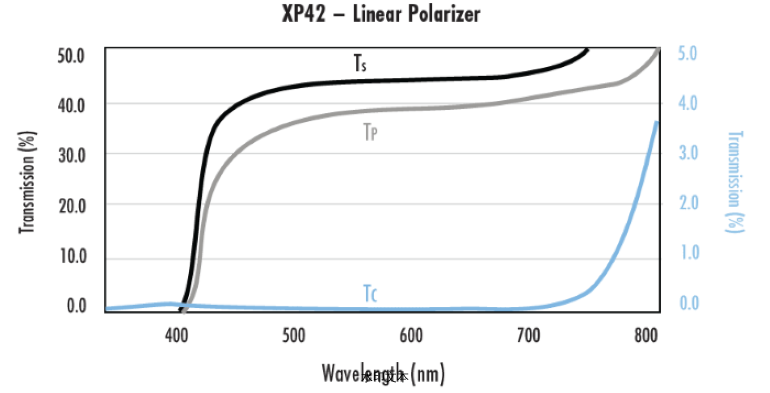

TECHSPEC®高对比度线性偏振膜 (XP42)适用于多种成像应用，具有出色的消光比和400 – 700nm范围内的高透射率。该偏振膜提供多种厚度选择；较厚的偏振膜具有更高的刚性。TECHSPEC®高对比度线性偏振膜 (XP42)以薄片状形式提供，可根据任何应用需求进行裁剪。


  • 非偏振光在400 - 700nm 波段之间的高透过率

  • 在 DWL 具有 9000:1 的出色消光比

  • 可定制尺寸

  • 高温线性偏振膜 (XP40HT) 可选

                        产品

标题产品编码涂层Dia. (mm)消光比基底工作温度 (°C)尺寸 (mm)厚度 (mm)透射率 (%) 类型构造
10mm Dia. Linear Polarizing Film (XP42-18)71-349Uncoated, protective film on both sides 10.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-18 -40 to +80
0.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
12.5mm Dia. Linear Polarizing Film (XP42-18)29-488Uncoated, Protective Film on Both Sides 12.50 +0.0/-0.39000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80
0.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
12.5mm Dia. Linear Polarizing Film (XP42-18)19-003
12.50 +0.0/-0.39000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80
0.19 ±0.03Single: 42 ±2   Parallel: 36.4   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
15mm Dia. Linear Polarizing Film (XP42-18)71-350Uncoated, protective film on both sides 15.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-18 -40 to +80
0.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
20mm Dia. Linear Polarizing Film (XP42-18)71-351Uncoated, protective film on both sides 20.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-18 -40 to +80
0.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
25mm Dia. Linear Polarizing Film (XP42-18)29-489Uncoated, Protective Film on Both Sides 25.00 +0.0/-0.39000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80
0.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
25mm Dia. Linear Polarizing Film (XP42-18)19-004
25.00 +0.0/-0.39000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80
0.19 ±0.03Single: 42 ±2   Parallel: 36.4   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
30mm Dia. Linear Polarizing Film (XP42-18)71-352Uncoated, protective film on both sides 30.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-18 -40 to +80
0.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
40mm Dia. Linear Polarizing Film (XP42-18)71-353Uncoated, protective film on both sides 40.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-18 -40 to +80
0.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
50mm Dia. Linear Polarizing Film (XP42-18)29-490Uncoated, Protective Film on Both Sides 50.00 +0.0/-0.59000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80
0.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
50 x 50mm Linear Polarizing Film (XP42-18)29-480Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 50.0 x 50.0 +0.0/-0.50.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
50 x 50mm，0.18mm厚度，偏振片86-178

9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 50.0 x 50.0 +0.0/-0.50.19 ±0.03Single: 42   Parallel: 36   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
100 x 100mm Linear Polarizing Film (XP42-18)29-481Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 100.0 x 100.0 +1.0/-1.00.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
150 x 150mm Linear Polarizing Film (XP42-18)29-482Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 150.0 x 150.0 +1.0/-1.00.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
200 x 200mm Linear Polarizing Film (XP42-18)29-483Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 200.0 x 200.0 +1.0/-1.00.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
250 x 250mm Linear Polarizing Film (XP42-18)29-484Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 250.0 x 250.0 +1.0/-1.00.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
300 x 300mm Linear Polarizing Film (XP42-18)29-485Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 300.0 x 300.0 ±3.00.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
300 x 300mm，0.18mm厚度，偏振片86-183

9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 300.0 x 300.0 ±3.00.19 ±0.03Single: 42   Parallel: 36   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
600 x 500mm Linear Polarizing Film (XP42-18)29-486Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 600.0 x 500.0 +5.0/0.00.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
600 x 1000mm Linear Polarizing Film (XP42-18) with Adhesive29-491Pressure Sensitive Adhesive (PSA) one-sided
9000:1 (nominal at 555nm)Polymer Film XP42-18
600.0 x 1000.0 +5.0/0.00.22 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
600 x 1000mm Linear Polarizing Film (XP42-18)29-487Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 600.0 x 1000.0 +5.0/0.00.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
1000 x 600mm，0.18mm厚度，偏振片86-185

9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 600.0 x 1000.0 +5.0/0.00.19 ±0.03Single: 42   Parallel: 36   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
50mm Dia. Linear Polarizing Film (XP42-75)19-017
50.00 +0.0/-0.59000:1 (nominal at 555nm)Polymer Film XP42-75 -40 to +80
0.77 ±0.08Single: 42 ±2   Parallel: 36.4   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
150 x 150mm，0.75mm厚度，偏振片86-188

9000:1 (nominal at 555nm)Polymer Film XP42-75 -40 to +80 150.0 x 150.0 +1.0/-1.00.77 ±0.08Single: 42   Parallel: 36   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
10mm Dia. Linear Polarizing Film (XP42-40)71-354Uncoated, protective film on both sides 10.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-40 -10 to +60
0.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
12.5mm Dia. Linear Polarizing Film (XP42-40)29-500Uncoated, Protective Film on Both Sides 12.50 +0.0/-0.39000:1 (nominal at 555nm)Polymer Film XP42-40

0.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
12.5mm Dia. Linear Polarizing Film (XP42-40)19-011
12.50 +0.0/-0.39000:1 (nominal at 555nm)Polymer Film XP42-40 -40 to +80
0.40 ±0.05Single: 42 ±2   Parallel: 36.4   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
15mm Dia. Linear Polarizing Film (XP42-40)71-355Uncoated, protective film on both sides 15.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-40 -10 to +60
0.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
20mm Dia. Linear Polarizing Film (XP42-40)71-356Uncoated, protective film on both sides 20.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-40 -10 to +60
0.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
25mm Dia. Linear Polarizing Film (XP42-40)29-501Uncoated, Protective Film on Both Sides 25.00 +0.0/-0.39000:1 (nominal at 555nm)Polymer Film XP42-40

0.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
25mm Dia. Linear Polarizing Film (XP42-40)19-012
25.00 +0.0/-0.39000:1 (nominal at 555nm)Polymer Film XP42-40 -40 to +80
0.40 ±0.05Single: 42 ±2   Parallel: 36.4   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
25 x 25mm Linear Polarizing Film (XP42-40)29-492Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-40
25.0 x 25.0 +0.0/-0.30.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
30mm Dia. Linear Polarizing Film (XP42-40)71-357Uncoated, protective film on both sides 30.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-40 -10 to +60
0.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
40mm Dia. Linear Polarizing Film (XP42-40)71-358Uncoated, protective film on both sides 40.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-40 -10 to +60
0.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
50mm Dia. Linear Polarizing Film (XP42-40)29-502Uncoated, Protective Film on Both Sides 50.00 +0.0/-0.59000:1 (nominal at 555nm)Polymer Film XP42-40

0.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
50mm Dia. Linear Polarizing Film (XP42-40)19-013
50.00 +0.0/-0.59000:1 (nominal at 555nm)Polymer Film XP42-40 -40 to +80
0.40 ±0.05Single: 42 ±2   Parallel: 36.4   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
50 x 50mm Linear Polarizing Film (XP42-40)29-493Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-40
50.0 x 50.0 +0.0/-0.50.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
100 x 100mm Linear Polarizing Film (XP42-40)29-494Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-40
100.0 x 100.0 ±1.00.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
100 x 100mm Linear Polarizing Film (XP42-40)19-008

9000:1 (nominal at 555nm)Polymer Film XP42-40 -40 to +80 100.0 x 100.0 ±1.00.40 ±0.05Single: 42 ±2   Parallel: 36.4   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
150 x 150mm Linear Polarizing Film (XP42-40)29-495Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-40
150.0 x 150.0 ±1.00.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
200 x 200mm Linear Polarizing Film (XP42-40)29-496Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-40
200.0 x 200.0 ±1.00.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
300 x 300mm Linear Polarizing Film (XP42-40)29-497Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-40
300.0 x 300.0 ±3.00.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
600 x 450mm Linear Polarizing Film (XP42-40)29-498Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-40
600.0 x 450.0 ±5.00.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
600 x 450mm Linear Polarizing Film (XP42-40)14-343

9000:1 (nominal at 555nm)Polymer Film XP42-40 -40 to +80 600.0 x 450.0 ±5.00.40 ±0.05Single: 42 ±2   Parallel: 36.4   Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film
600 x 900mm Linear Polarizing Film (XP42-40)29-499Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-40
600.0 x 900.0 ±5.00.40 ±0.05Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
10mm Dia. Linear Polarizing Film (XP42-70)71-359Uncoated, protective film on both sides 10.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-40 -10 to +60
0.72 ±0.1Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
12.5mm Dia. Linear Polarizer (XP42-70)19-940
12.50 +0.0/-0.3up to 9000:1 (nominal at 555nm)Polymer Film XP42-70 -10 to +60
0.72 ±0.1Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
15mm Dia. Linear Polarizing Film (XP42-70)71-360Uncoated, protective film on both sides 15.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-40 -10 to +60
0.72 ±0.1Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
20mm Dia. Linear Polarizing Film (XP42-70)71-361Uncoated, protective film on both sides 20.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-70 -10 to +60
0.72 ±0.1Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
25mm Dia. Linear Polarizer (XP42-70)19-941
25.00 +0.0/-0.3up to 9000:1 (nominal at 555nm)Polymer Film XP42-70 -10 to +60
0.72 ±0.1Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
30mm Dia. Linear Polarizing Film (XP42-70)71-362Uncoated, protective film on both sides 30.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-70 -10 to +60
0.72 ±0.1Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
40mm Dia. Linear Polarizing Film (XP42-70)71-363Uncoated, protective film on both sides 40.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-70 -10 to +60
0.72 ±0.1Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
50mm Dia. Linear Polarizer (XP42-70)19-942
50.00 +0.0/-0.5up to 9000:1 (nominal at 555nm)Polymer Film XP42-70 -10 to +60
0.72 ±0.1Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
50 x 50mm Linear Polarizer (XP42-70)19-943

up to 9000:1 (nominal at 555nm)Polymer Film XP42-70 -10 to +60 50.0 x 50.0 +0.0/-0.50.72 ±0.1Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
100 x 100mm Linear Polarizer (XP42-70)19-944

up to 9000:1 (nominal at 555nm)Polymer Film XP42-70 -10 to +60 100.0 x 100.0 +1.0/-1.00.72 ±0.1Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
150 x 150mm Linear Polarizer (XP42-70)19-945

up to 9000:1 (nominal at 555nm)Polymer Film XP42-70 -10 to +60 150.0 x 150.0 +1.0/-1.00.72 ±0.1Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
200 x 200mm Linear Polarizer (XP42-70)19-946

up to 9000:1 (nominal at 555nm)Polymer Film XP42-70 -10 to +60 200.0 x 200.0 +1.0/-1.00.72 ±0.1Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
250 x 250mm Linear Polarizer (XP42-70)19-947

up to 9000:1 (nominal at 555nm)Polymer Film XP42-70 -10 to +60 250.0 x 250.0 +1.0/-1.00.72 ±0.1Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
300 x 300mm Linear Polarizer (XP42-70)19-948

up to 9000:1 (nominal at 555nm)Polymer Film XP42-70 -10 to +60 300.0 x 300.0 ±3.00.72 ±0.1Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
600 x 450mm Linear Polarizer (XP42-70)19-949

up to 9000:1 (nominal at 555nm)Polymer Film XP42-70 -10 to +60 600.0 x 450.0 ±5.00.72 ±0.1Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
600 x 900mm Linear Polarizer (XP42-70)19-950

up to 9000:1 (nominal at 555nm)Polymer Film XP42-70 -10 to +60 600.0 x 900.0 ±5.00.72 ±0.1Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
10mm Dia. Linear Polarizing Film (XP42-100)71-364Uncoated, protective film on both sides 10.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-100 -10 to +60
1.02 ±0.25Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
12.5mm Dia. Linear Polarizer (XP42-100)19-951
12.50 +0.0/-0.3up to 9000:1 (nominal at 555nm)Polymer Film XP42-100 -10 to +60
1.02 ±0.25Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
15mm Dia. Linear Polarizing Film (XP42-100)71-365Uncoated, protective film on both sides 15.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-100 -10 to +60
1.02 ±0.25Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
20mm Dia. Linear Polarizing Film (XP42-100)71-366Uncoated, protective film on both sides 20.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-100 -10 to +60
1.02 ±0.25Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
25mm Dia. Linear Polarizer (XP42-100)19-952
25.00 +0.0/-0.3up to 9000:1 (nominal at 555nm)Polymer Film XP42-100 -10 to +60
1.02 ±0.25Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
30mm Dia. Linear Polarizing Film (XP42-100)71-367Uncoated, protective film on both sides 30.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-100 -10 to +60
1.02 ±0.25Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
40mm Dia. Linear Polarizing Film (XP42-100)71-368Uncoated, protective film on both sides 40.00 +0.0/-0.39000:1 (nominal at 555nm) Polymer Film XP42-100 -10 to +60
1.02 ±0.25Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film on PMMA
50mm Dia. Linear Polarizer (XP42-100)19-953
50.00 +0.0/-0.5up to 9000:1 (nominal at 555nm)Polymer Film XP42-100 -10 to +60
1.02 ±0.25Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
50 x 50mm Linear Polarizer (XP42-100)19-954

up to 9000:1 (nominal at 555nm)Polymer Film XP42-100 -10 to +60 50.0 x 50.0 +0.0/-0.51.02 ±0.25Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
100 x 100mm Linear Polarizer (XP42-100)19-955

up to 9000:1 (nominal at 555nm)Polymer Film XP42-100 -10 to +60 100.0 x 100.0 +1.0/-1.01.02 ±0.25Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
150 x 150mm Linear Polarizer (XP42-100)19-956

up to 9000:1 (nominal at 555nm)Polymer Film XP42-100 -10 to +60 150.0 x 150.0 +1.0/-1.01.02 ±0.25Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
200 x 200mm Linear Polarizer (XP42-100)19-957

up to 9000:1 (nominal at 555nm)Polymer Film XP42-100 -10 to +60 200.0 x 200.0 +1.0/-1.01.02 ±0.25Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA
25 x 25mm Linear Polarizing Film (XP42-18)29-479Uncoated, Protective Film on Both Sides
9000:1 (nominal at 555nm)Polymer Film XP42-18 -40 to +80 25.0 x 25.0 +0.0/-0.30.19 ±0.03Single: 42 ±2 Parallel: 36.4 Crossed: <0.004 (nominal at 555nm) Linear Polarizer Polarizing Film
300 x 300mm Linear Polarizer (XP42-100)19-958

up to 9000:1 (nominal at 555nm)Polymer Film XP42-100 -10 to +60 300.0 x 300.0 ±3.01.02 ±0.25Single: 42 ±2    Parallel: 36.4    Crossed: <0.004 (nominal at 555nm)Linear Polarizer Polarizing Film on PMMA

                               产品概览

如果您需要定制任何尺寸在3毫米至600毫米之间的圆形、方形或长方形的TECHSPEC高对比度线性偏振膜 (XP42)，请访问我们的 偏振片定制工具。  我们会立即提供报价，并能在大约3周内按您要求的尺寸完成交付。  列出了标准制造公差和限制的完整清单。  如果想根据您的要求完全定制聚合物偏振片，请访问我们的 聚合物偏振片定制能力 专题页面。

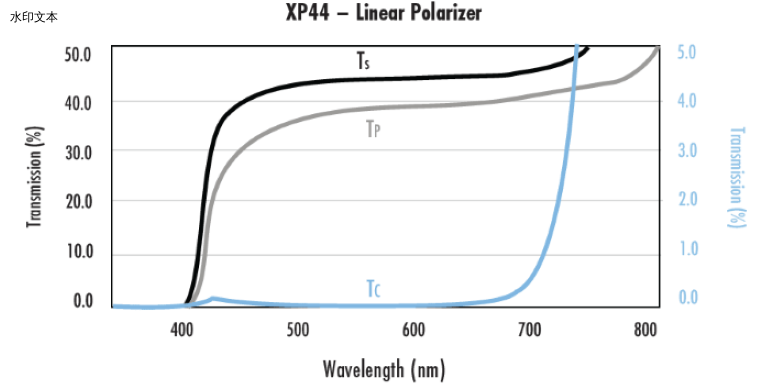

                              技术数据
