小直径塑料非球面透镜

小直径塑料非球面透镜

￥ 0.00
0.00

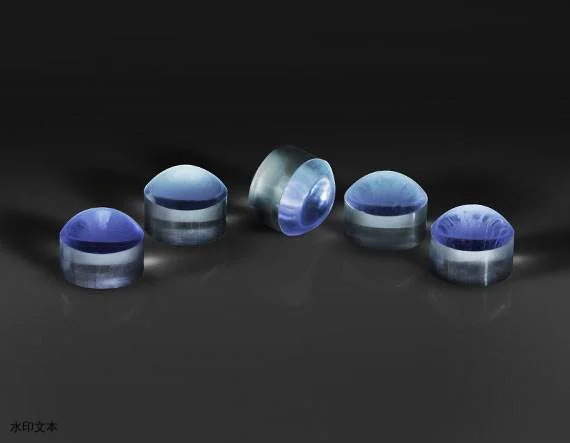

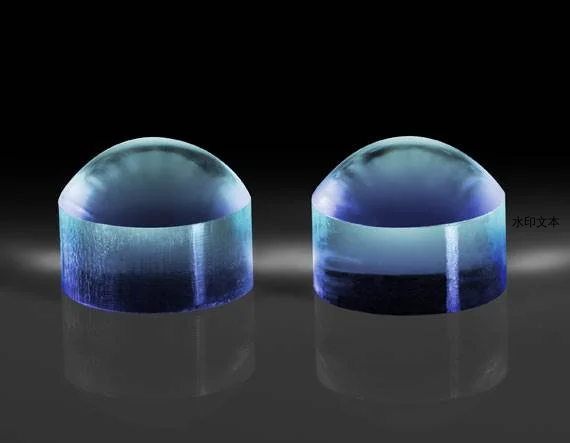

小直径塑料非球面透镜在设计时考虑到了OEM集成因素。因为具有小直径、轻质材料和高数值孔径等特点，所以这些镜片是医疗设备、诊断仪器或可穿戴应用设施的理想选择。可以提供完整的规格数据，帮助设计集成。


  • 小直径使OEM集成更容易

  • 高数值孔径

  • 是医疗和诊断仪器的理想选择

                           产品

标题产品编码Dia. (mm)EFL (mm)NABFL (mm)基底FL Tolerance (%)Aspheric DWL (nm)涂层表面质量CA (mm)
3mm Dia. x 2.99mm FL, Small Diameter Plastic Aspheric Lens15-2713.00 ±0.202.99 0.50 0.97 Acrylic V825 ±1.5 550 Uncoated 60-40 3.00
ASPHERE PLASTIC 6 X 18 UNCTD TS36-6296.00 ±0.2018.00 @ 550nm0.17 14.93 Acrylic V825 ±1.5 550 Uncoated 60-40 5
ASPHERE PLASTIC 6 X 12 UNCTD TS36-6286.00 ±0.2012.00 @ 550nm0.25 9.09 Acrylic V825 ±1.5 550 Uncoated 60-40 5.00
ASPHERE PLASTIC 6 X 9 UNCTD TS36-6276.00 ±0.209.00 @ 550nm0.33 6.16 Acrylic V825 ±1.5 550 Uncoated 60-40 5.00
ASPHERE PLASTIC 6 X 6 UNCTD TS36-6266.00 ±0.206.00 @ 550nm0.50 2.94 Acrylic V825 ±1.5 550 Uncoated 60-40 5.00
7mm Dia. x 7.32mm FL, Small Diameter Plastic Aspheric Lens15-2727.00 ±0.207.32 0.48 6.58 Acrylic V825 ±1.5 550 Uncoated 60-40 5.60
8mm Dia. x 5.9mm FL, Small Diameter Plastic Aspheric Lens15-2738.00 ±0.205.90 0.68 4.7 Polycarbonate ±1.5 550 Uncoated 60-40 7.00
8mm Dia. x 6.5mm FL, Small Diameter Plastic Aspheric Lens15-2748.00 ±0.206.50 0.62 5.1 Zeonex E48R ±1.5 550 Uncoated 60-40 7.00
8mm Dia. x 6.9mm FL, Small Diameter Plastic Aspheric Lens14-5728.00 ±0.206.90 @ 550nm0.58 6.11 Acrylic V825 ±1.5 550 Uncoated 60-40 7.00
12mm Dia. x 12mm FL, Small Diameter Plastic Aspheric Lens15-27512.00 ±0.2012.00 0.50 6.99 Acrylic V825 ±1.5 550 Uncoated 60-40 12.00
12mm Dia. x 18mm FL, Small Diameter Plastic Aspheric Lens15-27612.00 ±0.2018.01 0.33 14.19 Acrylic V825 ±1.5 550 Uncoated 60-40 12.00
