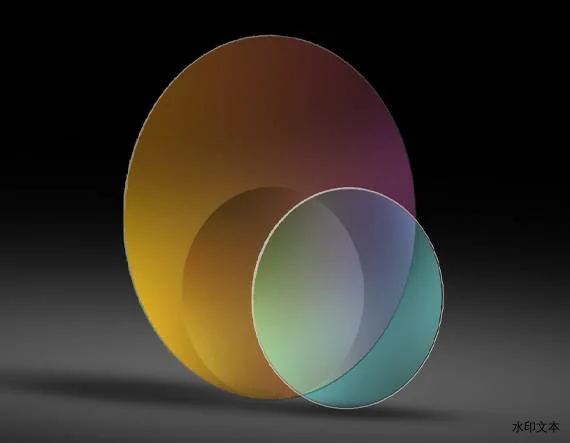

薄熔融石英平凸 (PCX) 激光透镜
￥ 0.00
0.00
TECHSPEC®薄熔融石英平凸 (PCX) 激光透镜的设计采用超薄中心厚度，以实现更轻、更紧凑的光学系统。这些透镜具有涵盖可见光与近红外 (NIR) 光谱的离子束溅射 (IBS) 增透 (AR) 膜。TECHSPEC 薄熔融石英平凸 (PCX) 激光透镜具有标准英制尺寸，有效焦距从 50mm 到 2000mm。如需使用我们标准尺寸的无镀膜薄熔融石英 PCX 激光透镜进行定制镀膜，请 联系我们
超薄中心厚度
UV 或 IR 熔融石英基片
低损耗宽带 IBS 增透膜
产品
| 标题 | 产品编码 | Dia. (mm) | EFL (mm) | BFL (mm) | 涂层 | 涂层规格 | 基底 | 表面质量 | Power (P-V) @ 632.8nm | Irregularity (P-V) @ 632.8nm | FL Tolerance (%) |
| 12.7mm Diameter x 50mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-711 | 12.70 +0.00/-0.10 | 50.06 @ 587.6nm | 49.03 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 50mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-671 | 12.70 +0.00/-0.10 | 50.06 @ 587.6nm | 49.03 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 50mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-652 | 12.70 +0.00/-0.10 | 50.06 @ 587.6nm | 49.03 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 50mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-633 | 12.70 +0.00/-0.10 | 50.06 @ 587.6nm | 49.03 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 50mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-692 | 12.70 +0.00/-0.10 | 50.06 @ 587.6nm | 49.03 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 50mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-614 | 12.70 +0.00/-0.10 | 50.06 | 49.03 | BBAR (1900-2200nm) | Rabs <0.1% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 75mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-712 | 12.70 +0.00/-0.10 | 75.09 @ 587.6nm | 74.06 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 75mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-672 | 12.70 +0.00/-0.10 | 75.09 @ 587.6nm | 74.06 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 75mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-653 | 12.70 +0.00/-0.10 | 75.09 @ 587.6nm | 74.06 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 75mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-634 | 12.70 +0.00/-0.10 | 75.09 @ 587.6nm | 74.06 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 75mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-693 | 12.70 +0.00/-0.10 | 75.09 @ 587.6nm | 74.06 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 75mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-615 | 12.70 +0.00/-0.10 | 75.09 @ 587.6nm | 74.06 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 100mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-713 | 12.70 +0.00/-0.10 | 100.12 @ 587.6nm | 99.09 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 100mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-673 | 12.70 +0.00/-0.10 | 100.12 @ 587.6nm | 99.09 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 100mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-654 | 12.70 +0.00/-0.10 | 100.12 @ 587.6nm | 99.09 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 100mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-635 | 12.70 +0.00/-0.10 | 100.12 @ 587.6nm | 99.09 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 100mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-694 | 12.70 +0.00/-0.10 | 100.12 @ 587.6nm | 99.09 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 100mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-616 | 12.70 +0.00/-0.10 | 100.12 @ 587.6nm | 99.09 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 125mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-714 | 12.70 +0.00/-0.10 | 125.16 @ 587.6nm | 124.13 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 125mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-674 | 12.70 +0.00/-0.10 | 125.16 @ 587.6nm | 124.13 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 125mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-655 | 12.70 +0.00/-0.10 | 125.16 @ 587.6nm | 124.13 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 125mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-636 | 12.70 +0.00/-0.10 | 125.16 @ 587.6nm | 124.13 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 125mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-695 | 12.70 +0.00/-0.10 | 125.16 @ 587.6nm | 124.13 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 125mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-617 | 12.70 +0.00/-0.10 | 125.16 @ 587.6nm | 124.13 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 150mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-715 | 12.70 +0.00/-0.10 | 150.17 @ 587.6nm | 149.15 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 150mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-675 | 12.70 +0.00/-0.10 | 150.17 @ 587.6nm | 149.15 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 150mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-656 | 12.70 +0.00/-0.10 | 150.17 @ 587.6nm | 149.15 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 150mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-637 | 12.70 +0.00/-0.10 | 150.17 @ 587.6nm | 149.15 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 150mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-696 | 12.70 +0.00/-0.10 | 150.17 @ 587.6nm | 149.15 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 150mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-618 | 12.70 +0.00/-0.10 | 150.17 @ 587.6nm | 149.15 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 200mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-716 | 12.70 +0.00/-0.10 | 200.23 @ 587.6nm | 199.20 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 200mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-676 | 12.70 +0.00/-0.10 | 200.23 @ 587.6nm | 199.20 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 200mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-657 | 12.70 +0.00/-0.10 | 200.23 @ 587.6nm | 199.20 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 200mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-638 | 12.70 +0.00/-0.10 | 200.23 @ 587.6nm | 199.20 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 200mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-697 | 12.70 +0.00/-0.10 | 200.23 @ 587.6nm | 199.20 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 200mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-619 | 12.70 +0.00/-0.10 | 200.23 @ 587.6nm | 199.20 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 250mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-717 | 12.70 +0.00/-0.10 | 250.29 @ 587.6nm | 249.26 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 250mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-677 | 12.70 +0.00/-0.10 | 250.29 @ 587.6nm | 249.26 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 250mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-658 | 12.70 +0.00/-0.10 | 250.29 @ 587.6nm | 249.26 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 250mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-639 | 12.70 +0.00/-0.10 | 250.29 @ 587.6nm | 249.26 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 250mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-698 | 12.70 +0.00/-0.10 | 250.29 @ 587.6nm | 249.26 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 250mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-620 | 12.70 +0.00/-0.10 | 250.29 @ 587.6nm | 249.26 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 300mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-718 | 12.70 +0.00/-0.10 | 300.35 @ 587.6nm | 299.32 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 300mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-678 | 12.70 +0.00/-0.10 | 300.35 @ 587.6nm | 299.32 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 300mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-659 | 12.70 +0.00/-0.10 | 300.35 @ 587.6nm | 299.32 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 300mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-640 | 12.70 +0.00/-0.10 | 300.35 @ 587.6nm | 299.32 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 12.7mm Diameter x 300mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-699 | 12.70 +0.00/-0.10 | 300.35 @ 587.6nm | 299.32 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 12.7mm Diameter x 300mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-621 | 12.70 +0.00/-0.10 | 300.35 @ 587.6nm | 299.32 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 200mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-719 | 25.40 +0.00/-0.10 | 200.23 @ 587.6nm | 199.14 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 200mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-679 | 25.40 +0.00/-0.10 | 200.23 @ 587.6nm | 199.14 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 200mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-660 | 25.40 +0.00/-0.10 | 200.23 @ 587.6nm | 199.14 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 200mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-641 | 25.40 +0.00/-0.10 | 200.23 @ 587.6nm | 199.14 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 200mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-700 | 25.40 +0.00/-0.10 | 200.23 @ 587.6nm | 199.14 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 200mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-622 | 25.40 +0.00/-0.10 | 200.23 | 199.14 | BBAR (1900-2200nm) | Rabs <0.1% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 250mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-720 | 25.40 +0.00/-0.10 | 250.29 @ 587.6nm | 249.19 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 250mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-680 | 25.40 +0.00/-0.10 | 250.29 @ 587.6nm | 249.19 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 250mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-661 | 25.40 +0.00/-0.10 | 250.29 @ 587.6nm | 249.19 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 250mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-642 | 25.40 +0.00/-0.10 | 250.29 @ 587.6nm | 249.19 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 250mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-701 | 25.40 +0.00/-0.10 | 250.29 @ 587.6nm | 249.19 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 250mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-623 | 25.40 +0.00/-0.10 | 250.29 @ 587.6nm | 249.19 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 300mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-721 | 25.40 +0.00/-0.10 | 300.35 @ 587.6nm | 299.25 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 300mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-681 | 25.40 +0.00/-0.10 | 300.35 @ 587.6nm | 299.25 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 300mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-662 | 25.40 +0.00/-0.10 | 300.35 @ 587.6nm | 299.25 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 300mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-643 | 25.40 +0.00/-0.10 | 300.35 @ 587.6nm | 299.25 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 300mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-702 | 25.40 +0.00/-0.10 | 300.35 @ 587.6nm | 299.25 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 300mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-624 | 25.40 +0.00/-0.10 | 300.35 @ 587.6nm | 299.25 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 350mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-722 | 25.40 +0.00/-0.10 | 350.41 @ 587.6nm | 349.31 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 350mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-682 | 25.40 +0.00/-0.10 | 350.41 @ 587.6nm | 349.31 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 350mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-663 | 25.40 +0.00/-0.10 | 350.41 @ 587.6nm | 349.31 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 350mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-644 | 25.40 +0.00/-0.10 | 350.41 @ 587.6nm | 349.31 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 350mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-703 | 25.40 +0.00/-0.10 | 350.41 @ 587.6nm | 349.31 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 350mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-625 | 25.40 +0.00/-0.10 | 350.41 @ 587.6nm | 349.31 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 400mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-723 | 25.40 +0.00/-0.10 | 400.47 @ 587.6nm | 399.37 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 400mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-683 | 25.40 +0.00/-0.10 | 400.47 @ 587.6nm | 399.37 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 400mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-664 | 25.40 +0.00/-0.10 | 400.47 @ 587.6nm | 399.37 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 400mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-645 | 25.40 +0.00/-0.10 | 400.47 @ 587.6nm | 399.37 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 400mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-704 | 25.40 +0.00/-0.10 | 400.47 @ 587.6nm | 399.37 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 400mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-626 | 25.40 +0.00/-0.10 | 400.47 @ 587.6nm | 399.37 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 450mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-724 | 25.40 +0.00/-0.10 | 450.52 @ 587.6nm | 449.43 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 450mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-684 | 25.40 +0.00/-0.10 | 450.52 @ 587.6nm | 449.43 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 450mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-665 | 25.40 +0.00/-0.10 | 450.52 @ 587.6nm | 449.43 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 450mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-646 | 25.40 +0.00/-0.10 | 450.52 @ 587.6nm | 449.43 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 450mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-705 | 25.40 +0.00/-0.10 | 450.52 @ 587.6nm | 449.43 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 450mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-627 | 25.40 +0.00/-0.10 | 450.52 @ 587.6nm | 499.49 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 500mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-725 | 25.40 +0.00/-0.10 | 500.58 @ 587.6nm | 499.49 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 500mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-685 | 25.40 +0.00/-0.10 | 500.58 @ 587.6nm | 499.49 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 500mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-666 | 25.40 +0.00/-0.10 | 500.58 @ 587.6nm | 499.49 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 500mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-647 | 25.40 +0.00/-0.10 | 500.58 @ 587.6nm | 499.49 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 500mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-706 | 25.40 +0.00/-0.10 | 500.58 @ 587.6nm | 499.49 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 500mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-628 | 25.40 +0.00/-0.10 | 500.58 @ 587.6nm | 499.49 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 750mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-726 | 25.40 +0.00/-0.10 | 750.87 @ 587.6nm | 749.78 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 750mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-686 | 25.40 +0.00/-0.10 | 750.00 @ 587.6nm | 749.72 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 750mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-667 | 25.40 +0.00/-0.10 | 750.87 @ 587.6nm | 749.78 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 750mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-648 | 25.40 +0.00/-0.10 | 750.87 @ 587.6nm | 749.78 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 750mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-707 | 25.40 +0.00/-0.10 | 750.87 @ 587.6nm | 749.78 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 750mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-629 | 25.40 +0.00/-0.10 | 750.87 @ 587.6nm | 749.78 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 1000mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-727 | 25.40 +0.00/-0.10 | 1,001.17 @ 587.6nm | 1000.07 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 1000mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-687 | 25.40 +0.00/-0.10 | 1,000.00 @ 587.6nm | 999.99 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 1000mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-668 | 25.40 +0.00/-0.10 | 1,001.17 @ 587.6nm | 1000.07 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 1000mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-649 | 25.40 +0.00/-0.10 | 1,001.17 @ 587.6nm | 1000.07 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 1000mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-708 | 25.40 +0.00/-0.10 | 1,001.17 @ 587.6nm | 1000.07 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 1000mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-630 | 25.40 +0.00/-0.10 | 1,001.17 @ 587.6nm | 1000.07 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 1500mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-728 | 25.40 +0.00/-0.10 | 1,501.75 @ 587.6nm | 1500.65 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 1500mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-688 | 25.40 +0.00/-0.10 | 1,500.00 @ 587.6nm | 1500.54 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 1500mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-669 | 25.40 +0.00/-0.10 | 1,501.75 @ 587.6nm | 1500.65 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 1500mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-650 | 25.40 +0.00/-0.10 | 1,501.75 @ 587.6nm | 1500.65 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 1500mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-709 | 25.40 +0.00/-0.10 | 1,501.75 @ 587.6nm | 1500.65 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 1500mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-631 | 25.40 +0.00/-0.10 | 1,501.75 @ 587.6nm | 1500.65 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 2000mm FL, Uncoated, Ultrafast Thin PCX Lens | 11-729 | 25.40 +0.00/-0.10 | 2,002.33 @ 587.6nm | 2001.23 | Uncoated | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 2000mm FL, 370-550nm Coated, Ultrafast Thin PCX Lens | 11-689 | 25.40 +0.00/-0.10 | 2,000.00 @ 587.6nm | 2001.08 | BBAR (370-550nm) | R<0.5% @ 370 - 550nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 2000mm FL, 700-900nm Coated, Ultrafast Thin PCX Lens | 11-670 | 25.40 +0.00/-0.10 | 2,002.33 @ 587.6nm | 2001.23 | BBAR (700-900nm) | Rabs <0.2% @ 700 - 900nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 2000mm FL, 950-1150nm Coated, Ultrafast Thin PCX Lens | 11-651 | 25.40 +0.00/-0.10 | 2,002.33 @ 587.6nm | 2001.23 | BBAR (950-1150nm) | Rabs <0.15% @ 950 - 1150nm | Fused Silica (Corning 7980) | 20-10 | 1.5λ | λ/8 | ±1 |
| 25.4mm Diameter x 2000mm FL, Uncoated, IR Ultrafast Thin PCX Lens | 11-710 | 25.40 +0.00/-0.10 | 2,002.33 @ 587.6nm | 2001.23 | Uncoated | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 | |
| 25.4mm Diameter x 2000mm FL, 1900-2200nm Coated, IR Ultrafast Thin PCX Lens | 11-632 | 25.40 +0.00/-0.10 | 2,002.33 @ 587.6nm | 2001.23 | BBAR (1900-2200nm) | Rabs <0.15% @ 1900 - 2200nm | Fused Silica IR Grade | 20-10 | 1.5λ | λ/8 | ±1 |
