高精度非球面透镜

高精度非球面透镜

￥ 0.00
0.00

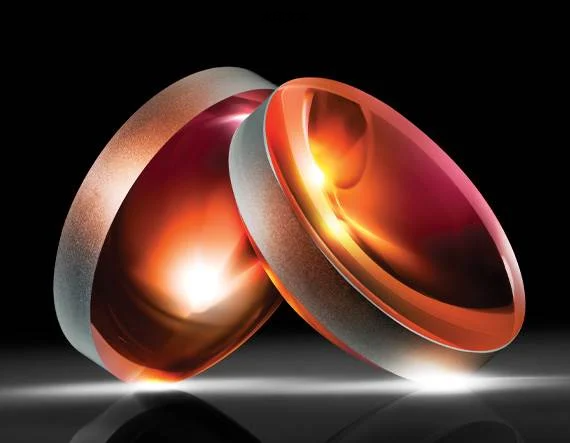

TECHSPEC® 高精度非球面透镜保证非球面面型误差优于 λ/40 。这些非球面透镜通过精密的磁流变抛光 (MRF) 而实现，能提供直径介于 15 至 50mm 的高数值孔径，非常适用于各种成像和微光应用。提供适用于可见光和近红外 (NIR) 波长的宽带增透 (BBAR) 膜选项。 每个 TECHSPEC 高精度非球面透镜都经过单独测量。无镀膜版本提供 3D 表面轮廓。如需为特定 Nd:YAG 激光波长而设计的衍射极限非球面透镜，请参阅我们的 TECHSPEC 高精度激光级非球面透镜。


  • 具有高精度非球面表面

  • 未镀膜透镜带有 3D 表面轮廓

  • 可选未镀膜和反射比 <0.25% 的 V 型镀膜


                                              产品

标题产品编码Dia. (mm)EFL (mm)NABFL (mm)基底Aspheric DWL (nm)Asphere Figure Error涂层涂层规格非球面图形误差 (µm RMS)
15mm Dia x 15mm FL, Uncoated, High Precision Aspheric Lens12-42815.00 +0.00/-0.02515.00 @ 587.6nm0.50 10.22 N-SF6 587.6 λ/40 Uncoated

15mm Dia x 18.75mm FL, Uncoated, High Precision Aspheric Lens12-42915.00 +0.00/-0.02518.75 @ 587.6nm0.40 14.32 N-SF6 587.6 λ/40 Uncoated

15mm Dia x 22.5mm FL, Uncoated, High Precision Aspheric Lens12-43015.00 +0.00/-0.02522.50 @ 587.6nm0.33 16.71 N-BK7 587.6 λ/40 Uncoated

25mm Dia x 25mm FL, Uncoated, 1550nm High Precision Aspheric Lens17-42025.00 +0.0/-0.02525.00 @ 1550nm0.50 20.18 @ 1550nmN-SF6 1550 λ/40 Uncoated

25mm Dia x 37.5mm FL, Uncoated, High Precision Aspheric Lens12-43825.00 +0.00/-0.02537.50 @ 587.6nm0.33 31.09 N-BK7 587.6 λ/40 Uncoated

25mm Dia x 50mm FL, Uncoated, High Precision Aspheric Lens12-43925.00 +0.00/-0.02550.00 @ 587.6nm0.25 45.23 N-BK7 587.6 λ/40 Uncoated

25mm Dia 0.23 NA, λ/40 未镀膜, UV 熔融石英非球面透镜17-32925.00 +0/-0.02550.00 @ 355nm0.23 45.10 Fused Silica (Corning 7980)355 λ/40 Uncoated

25mm Dia 0.15 NA, λ/40 未镀膜, UV 熔融石英非球面透镜17-33125.00 +0/-0.02575.00 @ 355nm0.15 70.90 Fused Silica (Corning 7980)355 λ/40 Uncoated

25mm Dia 0.11 NA, λ/40 未镀膜, UV 熔融石英非球面透镜17-33325.00 +0/-0.025100.00 @ 355nm0.11 96.30 Fused Silica (Corning 7980)355 λ/40 Uncoated

40mm Dia x 40mm FL, Uncoated, High Precision Aspheric Lens12-44540.00 +0.00/-0.02540.00 @ 587.6nm0.50 31.21 N-SF5 587.6 λ/40 Uncoated

50mm Dia x 50mm FL, Uncoated, High Precision Aspheric Lens12-44850.00 +0.00/-0.02550.00 @ 587.6nm0.50 42.77 N-SF6 587.6 λ/40 Uncoated

25mm Dia x 25mm FL, V-Coated, High Precision Aspheric Lens22-94125.00 +0.0/-0.02525.00 @ 1550nm0.50 20.18 @ 1500nmN-SF6 1550 λ/40 1550nm V-Coat Rabs < 0.25% @ 1550nm @ 0° AOI 0.016
15mm Dia x 15mm FL, VIS EXT+, High Precision Aspheric Lens22-88915.00 +0.00/-0.02515.00 @ 587.6nm0.50 10.22 N-SF6 587.6 λ/40 VIS-EXT+ (350-700nm) Ravg <0.5% @ 350 - 700nm @ ±30° AOI Rabs <1.5% @ 350 - 700nm @ ±30° AOI
15mm Dia x 18.75mm FL, VIS EXT+, High Precision Aspheric Lens22-89015.00 +0.00/-0.02518.75 @ 587.6nm0.40 14.32 N-SF6 587.6 λ/40 VIS-EXT+ (350-700nm) Ravg <0.5% @ 350 - 700nm @ ±30° AOI Rabs <1.5% @ 350 - 700nm @ ±30° AOI
15mm Dia x 22.5mm FL, VIS EXT+, High Precision Aspheric Lens22-89115.00 +0.00/-0.02522.50 @ 587.6nm0.33 16.71 N-BK7 587.6 λ/40 VIS-EXT+ (350-700nm) Ravg <0.5% @ 350 - 700nm @ ±30° AOI Rabs <1.5% @ 350 - 700nm @ ±30° AOI
25mm Dia x 37.5mm FL, VIS EXT+, High Precision Aspheric Lens22-89225.00 +0.00/-0.02537.50 @ 587.6nm0.33 31.09 N-BK7 587.6 λ/40 VIS-EXT+ (350-700nm) Ravg <0.5% @ 350 - 700nm @ ±30° AOI Rabs <1.5% @ 350 - 700nm @ ±30° AOI
25mm Dia x 50mm FL, VIS EXT+, High Precision Aspheric Lens22-89325.00 +0.00/-0.02550.00 @ 587.6nm0.25 45.23 N-BK7 587.6 λ/40 VIS-EXT+ (350-700nm) Ravg <0.5% @ 350 - 700nm @ ±30° AOI Rabs <1.5% @ 350 - 700nm @ ±30° AOI
40mm Dia x 40mm FL, VIS EXT+, High Precision Aspheric Lens22-89440.00 +0.00/-0.02540.00 @ 587.6nm0.50 31.21 N-SF5 587.6 λ/40 VIS-EXT+ (350-700nm) Ravg <0.5% @ 350 - 700nm @ ±30° AOI Rabs <1.5% @ 350 - 700nm @ ±30° AOI
50mm Dia x 50mm FL, VIS EXT+, High Precision Aspheric Lens22-89550.00 +0.00/-0.02550.00 @ 587.6nm0.50 42.77 N-SF6 587.6 λ/40 VIS-EXT+ (350-700nm) Ravg <0.5% @ 350 - 700nm @ ±30° AOI Rabs <1.5% @ 350 - 700nm @ ±30° AOI
15mm Dia x 15mm FL, SWIR+, High Precision Aspheric Lens22-89615.00 +0.00/-0.02515.00 @ 587.6nm0.50 10.22 N-SF6 587.6 λ/40 SWIR+ (900-1700nm) Ravg <0.5% @ 900 - 1700nm @ ±30° AOI Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
15mm Dia x 18.75mm FL, SWIR+, High Precision Aspheric Lens22-89715.00 +0.00/-0.02518.75 @ 587.6nm0.40 14.32 N-SF6 587.6 λ/40 SWIR+ (900-1700nm) Ravg <0.5% @ 900 - 1700nm @ ±30° AOI Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
15mm Dia x 22.5mm FL, SWIR+, High Precision Aspheric Lens22-89815.00 +0.00/-0.02522.50 @ 587.6nm0.33 16.71 N-BK7 587.6 λ/40 SWIR+ (900-1700nm) Ravg <0.5% @ 900 - 1700nm @ ±30° AOI Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
25mm Dia x 37.5mm FL, SWIR+, High Precision Aspheric Lens22-89925.00 +0.00/-0.02537.50 @ 587.6nm0.33 31.09 N-BK7 587.6 λ/40 SWIR+ (900-1700nm) Ravg <0.5% @ 900 - 1700nm @ ±30° AOI Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
25mm Dia x 50mm FL, SWIR+, High Precision Aspheric Lens22-90025.00 +0.00/-0.02550.00 @ 587.6nm0.25 45.23 N-BK7 587.6 λ/40 SWIR+ (900-1700nm) Ravg <0.5% @ 900 - 1700nm @ ±30° AOI Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
40mm Dia x 40mm FL, SWIR+, High Precision Aspheric Lens22-90140.00 +0.00/-0.02540.00 @ 587.6nm0.50 31.21 N-SF5 587.6 λ/40 SWIR+ (900-1700nm) Ravg <0.5% @ 900 - 1700nm @ ±30° AOI Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
50mm Dia x 50mm FL, SWIR+, High Precision Aspheric Lens22-90250.00 +0.00/-0.02550.00 @ 587.6nm0.50 42.77 N-SF6 587.6 λ/40 SWIR+ (900-1700nm) Ravg <0.5% @ 900 - 1700nm @ ±30° AOI Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
15mm Dia x 15mm FL, NIR+, High Precision Aspheric Lens22-90315.00 +0.00/-0.02515.00 @ 587.6nm0.50 10.22 N-SF6 587.6 λ/40 NIR+ (600-1050nm) Ravg <0.5% @ 600 - 1050nm @ ±30° AOI Rabs <1.5% @ 600 - 1050nm @ ±30° AOI
15mm Dia x 18.75mm FL, NIR+, High Precision Aspheric Lens22-90415.00 +0.00/-0.02518.75 @ 587.6nm0.40 14.32 N-SF6 587.6 λ/40 NIR+ (600-1050nm) Ravg <0.5% @ 600 - 1050nm @ ±30° AOI Rabs <1.5% @ 600 - 1050nm @ ±30° AOI
15mm Dia x 22.5mm FL, NIR+, High Precision Aspheric Lens22-90515.00 +0.00/-0.02522.50 @ 587.6nm0.33 16.71 N-BK7 587.6 λ/40 NIR+ (600-1050nm) Ravg <0.5% @ 600 - 1050nm @ ±30° AOI Rabs <1.5% @ 600 - 1050nm @ ±30° AOI
25mm Dia x 37.5mm FL, NIR+, High Precision Aspheric Lens22-90625.00 +0.00/-0.02537.50 @ 587.6nm0.33 31.09 N-BK7 587.6 λ/40 NIR+ (600-1050nm) Ravg <0.5% @ 600 - 1050nm @ ±30° AOI Rabs <1.5% @ 600 - 1050nm @ ±30° AOI
25mm Dia x 50mm FL, NIR+, High Precision Aspheric Lens22-90725.00 +0.00/-0.02550.00 @ 587.6nm0.25 45.23 N-BK7 587.6 λ/40 NIR+ (600-1050nm) Ravg <0.5% @ 600 - 1050nm @ ±30° AOI Rabs <1.5% @ 600 - 1050nm @ ±30° AOI
40mm Dia x 40mm FL, NIR+, High Precision Aspheric Lens22-90840.00 +0.00/-0.02540.00 @ 587.6nm0.50 31.21 N-SF5 587.6 λ/40 NIR+ (600-1050nm) Ravg <0.5% @ 600 - 1050nm @ ±30° AOI Rabs <1.5% @ 600 - 1050nm @ ±30° AOI
50mm Dia x 50mm FL, NIR+, High Precision Aspheric Lens22-90950.00 +0.00/-0.02550.00 @ 587.6nm0.50 42.77 N-SF6 587.6 λ/40 NIR+ (600-1050nm) Ravg <0.5% @ 600 - 1050nm @ ±30° AOI Rabs <1.5% @ 600 - 1050nm @ ±30° AOI
