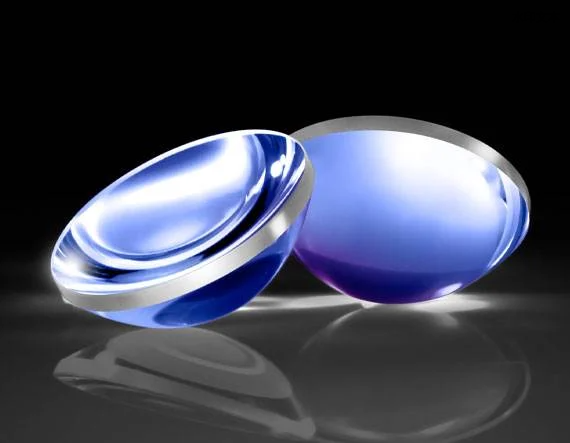

激光线镀膜非球面透镜

激光线镀膜非球面透镜

￥ 0.00
0.00


TECHSPEC® 激光线镀膜非球面透镜经过精心设计，可在高功率Nd：YAG激光应用中发挥最大性能。非球面设计可使球面像差减到最小，以减少激光光斑大小并在单位面积上保持高功率。经优化后，TECHSPEC激光线镀膜非球面透镜适用于热门的Nd:YAG激光波长并具有高损伤阈值，UV级熔融石英基片可有效抵抗热膨胀。


  • 专为 Nd:YAG 激光波长设计和镀膜

  • 激光损伤阈值高

  • 热膨胀系数低


                               产品

标题产品编码Dia. (mm)EFL (mm)NABFL (mm)基底Aspheric DWL (nm)Asphere Figure Error涂层涂层规格中心偏（弧分）表面质量CA (mm)
ASPHERE LASER FS 15X12.5MM 355NM33-00915.00 +0.0/-0.112.50 @ 587.6nm0.60 6.33 Fused Silica (Corning 7980)355 1.2λ Laser V-Coat (355nm) Rabs <0.25% @ 355nm ≤5 60-40 13.5
ASPHERE LASER FS 15X12.5MM 532NM33-01315.00 +0.0/-0.112.50 @ 587.6nm0.60 6.33 Fused Silica (Corning 7980)532 1.2λ Laser V-Coat (532nm) Rabs <0.25% @ 532nm ≤5 60-40 13.5
ASPHERE LASER FS 15X12.5MM 1064NM33-01715.00 +0.0/-0.112.50 @ 587.6nm0.60 6.33 Fused Silica (Corning 7980)1064 1.2λ Laser V-Coat (1064nm) Rabs ≤0.25% @ 1064nm ≤5 60-40 13.5
ASPHERE LASER FS 15X15MM 355NM33-01015.00 +0.0/-0.115.00 @ 587.6nm0.50 10.03 Fused Silica (Corning 7980)355 1.2λ Laser V-Coat (355nm) Rabs <0.25% @ 355nm ≤5 60-40 13.5
ASPHERE LASER FS 15X15MM 532NM33-01415.00 +0.0/-0.115.00 @ 587.6nm0.50 10.03 Fused Silica (Corning 7980)532 1.2λ Laser V-Coat (532nm) Rabs <0.25% @ 532nm ≤5 60-40 13.5
ASPHERE LASER FS 15X15MM 1064NM33-01815.00 +0.0/-0.115.00 @ 587.6nm0.50 10.03 Fused Silica (Corning 7980)1064 1.2λ Laser V-Coat (1064nm) Rabs ≤0.25% @ 1064nm ≤5 60-40 13.5
ASPHERE LASER FS 25X25MM 355NM33-01125.00 +0.0/-0.125.00 @ 587.6nm0.50 18.32 Fused Silica (Corning 7980)355 1.2λ Laser V-Coat (355nm) Rabs <0.25% @ 355nm ≤5 60-40 22.5
ASPHERE LASER FS 25X25MM 532NM33-01525.00 +0.0/-0.125.00 @ 587.6nm0.50 18.32 Fused Silica (Corning 7980)532 1.2λ Laser V-Coat (532nm) Rabs <0.25% @ 532nm ≤5 60-40 22.5
ASPHERE LASER FS 25X25MM 1064NM33-01925.00 +0.0/-0.125.00 @ 587.6nm0.50 18.32 Fused Silica (Corning 7980)1064 1.2λ Laser V-Coat (1064nm) Rabs ≤0.25% @ 1064nm ≤5 60-40 22.5
ASPHERE LASER FS 25X30MM 355NM33-01225.00 +0.0/-0.130.00 @ 587.6nm0.42 24.17 Fused Silica (Corning 7980)355 1.2λ Laser V-Coat (355nm) Rabs <0.25% @ 355nm ≤5 60-40 22.5
ASPHERE LASER FS 25X30MM 532NM33-01625.00 +0.0/-0.130.00 @ 587.6nm0.42 24.17 Fused Silica (Corning 7980)532 1.2λ Laser V-Coat (532nm) Rabs <0.25% @ 532nm ≤5 60-40 22.5
ASPHERE LASER FS 25X30MM 1064NM33-02025.00 +0.0/-0.130.00 @ 587.6nm0.42 24.17 Fused Silica (Corning 7980)1064 1.2λ Laser V-Coat (1064nm) Rabs ≤0.25% @ 1064nm ≤5 60-40 22.5
