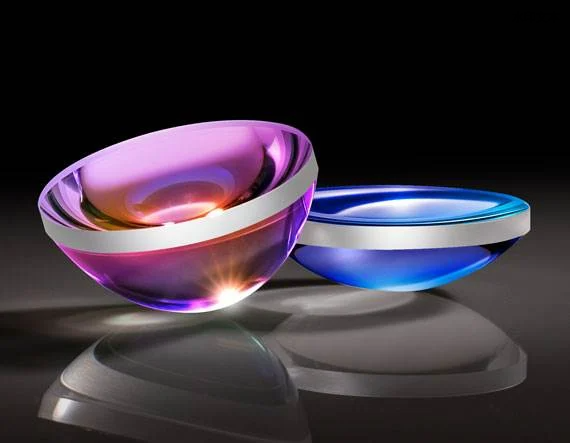

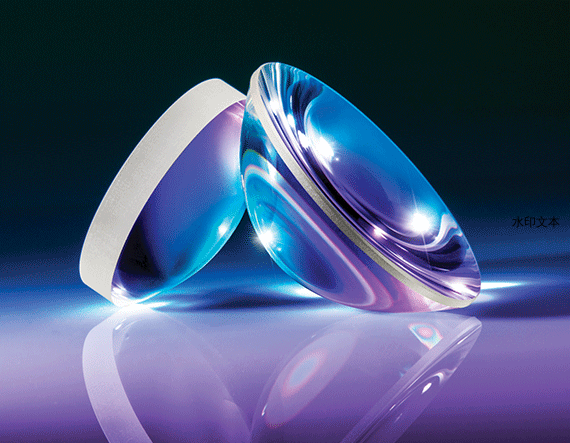

TECHSPEC® UV（紫外）熔融石英非球面透镜以一个非球面元件为基础，采用最先进的研磨和抛光设备加工而成。可提供相关规格数据，使熔融石英光学件易于设计，同样易于集成到复杂的光学系统中。这款透镜拥有低f/＃，可提供最佳聚光能力和对焦性能。这款熔融石英透镜经过电脑优化可以消除球差，并尽可能地减少高阶像差。紫外线熔融石英光学基片具备低的热膨胀系数。
热膨胀系数低
可选精密和高精密版本
高数值孔径可使光通量最大化
产品

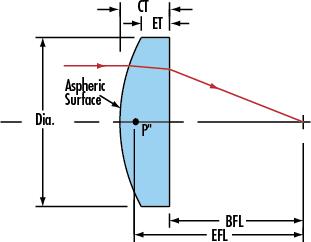

| 标题 | 产品编码 | Dia. (mm) | EFL (mm) | NA | BFL (mm) | 基底 | Aspheric DWL (nm) | Asphere Figure Error | 涂层 | 涂层规格 | 中心偏（弧分） |
| 10mm Dia 0.63 NA, 未镀膜, UV 熔融石英非球面透镜 | 87-973 | 10.00 +0.0/-0.1 | 8.00 @ 587.6nm | 0.63 | 2.52 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 10mm Dia 0.63 NA, UV 镀膜, UV 熔融石英非球面透镜 | 87-977 | 10.00 +0.0/-0.1 | 8.00 @ 587.6nm | 0.63 | 2.52 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 10mm Dia 0.63 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 87-981 | 10.00 +0.0/-0.1 | 8.00 @ 587.6nm | 0.63 | 2.52 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 10mm Dia 0.63 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 87-985 | 10.00 +0.0/-0.1 | 8.00 @ 587.6nm | 0.63 | 2.52 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg <1.5% @ 425 - 675nm | ≤5 |
| 10mm Dia 0.63 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 87-989 | 10.00 +0.0/-0.1 | 8.00 @ 587.6nm | 0.63 | 2.52 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 10mm Dia 0.50 NA, 未镀膜, UV 熔融石英非球面透镜 | 87-974 | 10.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.50 | 5.89 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 10mm Dia 0.50 NA, UV 镀膜, UV 熔融石英非球面透镜 | 87-978 | 10.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.50 | 5.89 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 10mm Dia 0.50 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 87-982 | 10.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.50 | 5.89 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 10mm Dia 0.50 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 87-986 | 10.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.50 | 5.89 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg <1.5% @ 425 - 675nm | ≤5 |
| 10mm Dia 0.50 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 87-990 | 10.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.50 | 5.89 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 12.5mm Dia 0.63 NA, 未镀膜, UV 熔融石英非球面透镜 | 87-975 | 12.50 +0.0/-0.1 | 10.00 @ 587.6nm | 0.63 | 4.52 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 12.5mm Dia 0.63 NA, UV 镀膜, UV 熔融石英非球面透镜 | 87-979 | 12.50 +0.0/-0.1 | 10.00 @ 587.6nm | 0.63 | 4.52 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 12.5mm Dia 0.63 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 87-983 | 12.50 +0.0/-0.1 | 10.00 @ 587.6nm | 0.63 | 4.52 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 12.5mm Dia 0.63 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 87-987 | 12.50 +0.0/-0.1 | 10.00 @ 587.6nm | 0.63 | 4.52 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg <1.5% @ 425 - 675nm | ≤5 |
| 12.5mm Dia 0.63 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 87-991 | 12.50 +0.0/-0.1 | 10.00 @ 587.6nm | 0.63 | 4.52 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 12.5mm Dia 0.58 NA, 未镀膜, UV 熔融石英非球面透镜 | 17-321 | 12.50 +0/-0.025 | 10.00 @ 355nm | 0.58 | 4.06 | Fused Silica (Corning 7980) | 355 | 0.4λ | Uncoated | <3 | |
| 12.5mm Dia 0.58 NA, UV 镀膜, UV 熔融石英非球面透镜 | 21-908 | 12.50 +0/-0.025 | 10.00 @ 355nm | 0.58 | 4.06 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | <3 |
| 12.5mm Dia 0.58 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 21-909 | 12.50 +0/-0.025 | 10.00 @ 355nm | 0.58 | 4.06 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | <3 |
| 12.5mm Dia 0.50 NA, 未镀膜, UV 熔融石英非球面透镜 | 87-976 | 12.50 +0.0/-0.1 | 12.50 @ 587.6nm | 0.50 | 8.39 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 12.5mm Dia 0.50 NA, UV 镀膜, UV 熔融石英非球面透镜 | 87-980 | 12.50 +0.0/-0.1 | 12.50 @ 587.6nm | 0.50 | 8.39 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 12.5mm Dia 0.50 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 87-984 | 12.50 +0.0/-0.1 | 12.50 @ 587.6nm | 0.50 | 8.39 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 12.5mm Dia 0.50 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 87-988 | 12.50 +0.0/-0.1 | 12.50 @ 587.6nm | 0.50 | 8.39 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg <1.5% @ 425 - 675nm | ≤5 |
| 12.5mm Dia 0.50 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 87-992 | 12.50 +0.0/-0.1 | 12.50 @ 587.6nm | 0.50 | 8.39 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 15mm Dia 0.75 NA, 未镀膜, UV 熔融石英非球面透镜 | 33-947 | 15.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.75 | 2.69 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 15mm Dia 0.75 NA, UV 镀膜, UV 熔融石英非球面透镜 | 33-951 | 15.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.75 | 2.69 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 15mm Dia 0.75 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 33-955 | 15.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.75 | 2.69 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 15mm Dia 0.75 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 33-959 | 15.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.75 | 2.69 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 15mm Dia 0.75 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 33-963 | 15.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.75 | 2.69 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 15mm Dia 0.60 NA, 未镀膜, UV 熔融石英非球面透镜 | 67-264 | 15.00 +0.0/-0.1 | 12.50 @ 587.6nm | 0.60 | 6.33 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 15mm Dia 0.60 NA, UV 镀膜, UV 熔融石英非球面透镜 | 67-269 | 15.00 +0.0/-0.1 | 12.50 @ 587.6nm | 0.60 | 6.33 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 15mm Dia 0.60 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 84-334 | 15.00 +0.0/-0.1 | 12.50 @ 587.6nm | 0.60 | 6.33 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 15mm Dia 0.60 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 67-274 | 15.00 +0.0/-0.1 | 12.50 @ 587.6nm | 0.60 | 6.33 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 15mm Dia 0.60 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 67-279 | 15.00 +0.0/-0.1 | 12.50 @ 587.6nm | 0.60 | 6.33 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 15mm Dia 0.50 NA, 未镀膜, UV 熔融石英非球面透镜 | 48-534 | 15.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.50 | 10.029 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 15mm Dia 0.50 NA, UV 镀膜, UV 熔融石英非球面透镜 | 49-693 | 15.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.50 | 10.029 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 15mm Dia 0.50 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 84-335 | 15.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.50 | 10.029 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 15mm Dia 0.50 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 49-587 | 15.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.50 | 10.029 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 15mm Dia 0.50 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 49-591 | 15.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.50 | 10.029 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 15mm Dia 0.38 NA, 未镀膜, UV 熔融石英非球面透镜 | 48-535 | 15.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.38 | 15.89 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 15mm Dia 0.38 NA, UV 镀膜, UV 熔融石英非球面透镜 | 49-694 | 15.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.38 | 15.89 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 15mm Dia 0.38 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 84-336 | 15.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.38 | 15.89 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 15mm Dia 0.38 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 49-588 | 15.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.38 | 15.89 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 15mm Dia 0.38 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 49-592 | 15.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.38 | 15.89 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 15mm Dia 0.30 NA, 未镀膜, UV 熔融石英非球面透镜 | 33-948 | 15.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.30 | 22.01 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 15mm Dia 0.30 NA, UV 镀膜, UV 熔融石英非球面透镜 | 33-952 | 15.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.30 | 22.01 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 15mm Dia 0.30 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 33-956 | 15.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.30 | 22.01 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 15mm Dia 0.30 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 33-960 | 15.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.30 | 22.01 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 15mm Dia 0.30 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 33-964 | 15.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.30 | 22.01 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 25mm Dia 0.69 NA, 未镀膜, UV 熔融石英非球面透镜 | 33-949 | 25.00 +0.0/-0.1 | 17.50 @ 587.6nm | 0.69 | 8.37 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 25mm Dia 0.69 NA, UV 镀膜, UV 熔融石英非球面透镜 | 33-953 | 25.00 +0.0/-0.1 | 17.50 @ 587.6nm | 0.69 | 8.37 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 25mm Dia 0.69 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 33-957 | 25.00 +0.0/-0.1 | 17.50 @ 587.6nm | 0.69 | 8.37 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 25mm Dia 0.69 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 33-961 | 25.00 +0.0/-0.1 | 17.50 @ 587.6nm | 0.69 | 8.37 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 25mm Dia 0.69 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 33-965 | 25.00 +0.0/-0.1 | 17.50 @ 587.6nm | 0.69 | 8.37 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 25mm Dia 0.63 NA, 未镀膜, UV 熔融石英非球面透镜 | 67-265 | 25.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.63 | 10.40 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 25mm Dia 0.63 NA, UV 镀膜, UV 熔融石英非球面透镜 | 67-270 | 25.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.63 | 10.40 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 25mm Dia 0.63 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 84-337 | 25.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.63 | 10.40 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 25mm Dia 0.63 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 67-275 | 25.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.63 | 10.40 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 25mm Dia 0.63 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 67-280 | 25.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.63 | 10.40 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 25mm Dia 0.50 NA, 未镀膜, UV 熔融石英非球面透镜 | 48-536 | 25.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.50 | 18.32 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 25mm Dia 0.50 NA, UV 镀膜, UV 熔融石英非球面透镜 | 49-695 | 25.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.50 | 18.32 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 25mm Dia 0.50 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 84-338 | 25.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.50 | 18.32 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 25mm Dia 0.50 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 49-589 | 25.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.50 | 18.32 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 25mm Dia 0.50 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 49-593 | 25.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.50 | 18.32 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 25mm Dia 0.48 NA, 未镀膜, UV 熔融石英非球面透镜 | 17-325 | 25.00 +0/-0.025 | 25.00 @ 285nm | 0.48 | 17.00 | Fused Silica (Corning 7980) | 285 | 0.4λ | Uncoated | <1 | |
| 25mm Dia 0.48 NA, UV 镀膜, UV 熔融石英非球面透镜 | 21-912 | 25.00 +0/-0.025 | 25.00 @ 285nm | 0.48 | 17.00 @ 285nm | Fused Silica (Corning 7980) | 285 | 0.4λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | <1 |
| 25mm Dia 0.48 NA, UV-VIS, UV 熔融石英非球面透镜 | 21-913 | 25.00 +0/-0.025 | 25.00 @ 285nm | 0.48 | 17.00 @ 285nm | Fused Silica (Corning 7980) | 285 | 0.4λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | <1 |
| 25mm Dia 0.42 NA, 未镀膜, UV 熔融石英非球面透镜 | 48-537 | 25.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.42 | 24.17 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 25mm Dia 0.42 NA, UV 镀膜, UV 熔融石英非球面透镜 | 49-696 | 25.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.42 | 24.17 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 25mm Dia 0.42 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 84-339 | 25.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.42 | 24.17 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 25mm Dia 0.42 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 49-590 | 25.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.42 | 24.17 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 25mm Dia 0.42 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 49-594 | 25.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.42 | 24.17 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 25mm Dia 0.25 NA, 未镀膜, UV 熔融石英非球面透镜 | 33-950 | 25.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.25 | 46.50 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 25mm Dia 0.25 NA, UV 镀膜, UV 熔融石英非球面透镜 | 33-954 | 25.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.25 | 46.50 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 25mm Dia 0.25 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 33-962 | 25.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.25 | 46.50 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 25mm Dia 0.25 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 33-966 | 25.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.25 | 46.50 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 25mm Dia 0.25 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 33-958 | 25.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.25 | 46.50 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 25mm Dia 0.23 NA, λ/40 未镀膜, UV 熔融石英非球面透镜 | 17-329 | 25.00 +0/-0.025 | 50.00 @ 355nm | 0.23 | 45.10 | Fused Silica (Corning 7980) | 355 | λ/40 | Uncoated | <1 | |
| 25mm Dia 0.23 NA, 未镀膜, UV 熔融石英非球面透镜 | 17-328 | 25.00 +0/-0.025 | 50.00 @ 355nm | 0.23 | 45.10 | Fused Silica (Corning 7980) | 355 | 0.4λ | Uncoated | <1 | |
| 25mm Dia 0.23 NA, UV 镀膜, UV 熔融石英非球面透镜 | 21-916 | 25.00 +0/-0.025 | 50.00 @ 355nm | 0.23 | 45.10 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | <1 |
| 25mm Dia 0.23 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 21-917 | 25.00 +0/-0.025 | 50.00 @ 355nm | 0.23 | 45.10 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | <1 |
| 25mm Dia 0.15 NA, 未镀膜, UV 熔融石英非球面透镜 | 17-330 | 25.00 +0/-0.025 | 75.00 @ 355nm | 0.15 | 70.90 | Fused Silica (Corning 7980) | 355 | 0.4λ | Uncoated | <1 | |
| 25mm Dia 0.15 NA, λ/40 未镀膜, UV 熔融石英非球面透镜 | 17-331 | 25.00 +0/-0.025 | 75.00 @ 355nm | 0.15 | 70.90 | Fused Silica (Corning 7980) | 355 | λ/40 | Uncoated | <1 | |
| 25mm Dia 0.15 NA, UV 镀膜, UV 熔融石英非球面透镜 | 21-924 | 25.00 +0/-0.025 | 75.00 @ 355nm | 0.15 | 70.90 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | <1 |
| 25mm Dia 0.15 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 21-925 | 25.00 +0/-0.025 | 75.00 @ 355nm | 0.15 | 70.90 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | <1 |
| 25mm Dia 0.11 NA, 未镀膜, UV 熔融石英非球面透镜 | 17-332 | 25.00 +0/-0.025 | 100.00 @ 355nm | 0.11 | 96.30 | Fused Silica (Corning 7980) | 355 | 0.4λ | Uncoated | <1 | |
| 25mm Dia 0.11 NA, λ/40 未镀膜, UV 熔融石英非球面透镜 | 17-333 | 25.00 +0/-0.025 | 100.00 @ 355nm | 0.11 | 96.30 | Fused Silica (Corning 7980) | 355 | λ/40 | Uncoated | <1 | |
| 25mm Dia 0.11 NA, UV 镀膜, UV 熔融石英非球面透镜 | 21-932 | 25.00 +0/-0.025 | 100.00 @ 355nm | 0.11 | 96.30 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | <1 |
| 25mm Dia 0.11 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 21-933 | 25.00 +0/-0.025 | 100.00 @ 355nm | 0.11 | 96.30 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | <1 |
| 50mm Dia 0.63 NA, 未镀膜, UV 熔融石英非球面透镜 | 67-266 | 50.00 +0.0/-0.1 | 40.00 @ 587.6nm | 0.63 | 21.15 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 50mm Dia 0.63 NA, UV 镀膜, UV 熔融石英非球面透镜 | 67-271 | 50.00 +0.0/-0.1 | 40.00 @ 587.6nm | 0.63 | 21.15 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 50mm Dia 0.63 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 84-340 | 50.00 +0.0/-0.1 | 40.00 @ 587.6nm | 0.63 | 21.15 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 50mm Dia 0.63 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 67-276 | 50.00 +0.0/-0.1 | 40.00 @ 587.6nm | 0.63 | 21.15 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 50mm Dia 0.63 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 67-281 | 50.00 +0.0/-0.1 | 40.00 @ 587.6nm | 0.63 | 21.15 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 50mm Dia 0.50 NA, 未镀膜, UV 熔融石英非球面透镜 | 67-267 | 50.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.50 | 36.63 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 50mm Dia 0.50 NA, UV 镀膜, UV 熔融石英非球面透镜 | 67-272 | 50.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.50 | 36.63 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 50mm Dia 0.50 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 84-341 | 50.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.50 | 36.63 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 50mm Dia 0.50 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 67-277 | 50.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.50 | 36.63 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 50mm Dia 0.50 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 67-282 | 50.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.50 | 36.63 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 50mm Dia 0.48 NA, 未镀膜, UV 熔融石英非球面透镜 | 17-334 | 50.00 +0/-0.025 | 50.00 @ 355nm | 0.48 | 37.00 | Fused Silica (Corning 7980) | 355 | 0.4λ | Uncoated | <1 | |
| 50mm Dia 0.48 NA, UV 镀膜, UV 熔融石英非球面透镜 | 21-940 | 50.00 +0/-0.025 | 50.00 @ 355nm | 0.48 | 37.00 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | <1 |
| 50mm Dia 0.48 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 21-941 | 50.00 +0/-0.025 | 50.00 @ 355nm | 0.48 | 37.00 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | <1 |
| 50mm Dia 0.42 NA, 未镀膜, UV 熔融石英非球面透镜 | 67-268 | 50.00 +0.0/-0.1 | 60.00 @ 587.6nm | 0.42 | 48.34 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | Uncoated | ≤5 | |
| 50mm Dia 0.42 NA, UV 镀膜, UV 熔融石英非球面透镜 | 67-273 | 50.00 +0.0/-0.1 | 60.00 @ 587.6nm | 0.42 | 48.34 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | ≤5 |
| 50mm Dia 0.42 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 84-342 | 50.00 +0.0/-0.1 | 60.00 @ 587.6nm | 0.42 | 48.34 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | ≤5 |
| 50mm Dia 0.42 NA, VIS 镀膜, UV 熔融石英非球面透镜 | 67-278 | 50.00 +0.0/-0.1 | 60.00 @ 587.6nm | 0.42 | 48.34 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | VIS (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 |
| 50mm Dia 0.42 NA, NIR 镀膜, UV 熔融石英非球面透镜 | 67-283 | 50.00 +0.0/-0.1 | 60.00 @ 587.6nm | 0.42 | 48.34 | Fused Silica (Corning 7980) | 587.6 | 1.2λ | NIR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 |
| 50mm Dia 0.23 NA, 未镀膜, UV 熔融石英非球面透镜 | 17-337 | 50.00 +0/-0.025 | 100.00 @ 355nm | 0.23 | 91.50 | Fused Silica (Corning 7980) | 355 | 0.4λ | Uncoated | <1 | |
| 50mm Dia 0.23 NA, UV 镀膜, UV 熔融石英非球面透镜 | 21-944 | 50.00 +0/-0.025 | 100.00 @ 355nm | 0.23 | 91.50 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV (250-425nm) | Ravg ≤1.5% @ 250 - 425nm | <1 |
| 50mm Dia 0.23 NA, UV-VIS 镀膜, UV 熔融石英非球面透镜 | 21-945 | 50.00 +0/-0.025 | 100.00 @ 355nm | 0.23 | 91.50 @ 355nm | Fused Silica (Corning 7980) | 355 | 0.4λ | UV-VIS (250-700nm) | Ravg <2.5% @ 250 - 700nm | <1 |
技术数据
