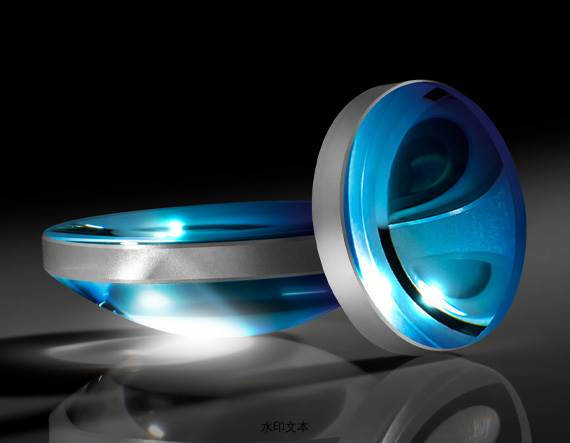

近红外 (NIR) 非球面透镜

近红外 (NIR) 非球面透镜

￥ 0.00
0.00


TECHSPEC® 近红外 (NIR) 非球面透镜设计规格为 780nm，并进行了优化以消除球面像差。这些非球面透镜用 S-LAH64 或 N-BK7 基片制造，并通过计算机数控 (CNC) 工艺进行抛光，可在整个 NIR 光谱中实现高精度的性能。TECHSPEC近红外(NIR)非球面透镜可提供低数值孔径设计版本，用于保持光束形状的应用，以及用于聚光应用的高数值孔径设计版本。如需定制设计的 CNC 抛光非球面透镜，请与我们联系。


  • 针对 NIR 应用进行了优化

  • 可选未镀膜或增透镀膜版本

  • 多种设计波长可选

                          产品

标题产品编码Dia. (mm)EFL (mm)NABFL (mm)基底Aspheric DWL (nm)Asphere Figure Error涂层涂层规格
10mm Dia., 0.63 NA, Uncoated, NIR Aspheric Lens13-49610.00 +0.00/-0.108.00 @ 780nm0.63 5.92 S-LAH64 780 1.2λ Uncoated
10mm Dia., 0.63 NA, 350-700nm Coated, NIR Aspheric Lens16-26610.00 +0.00/-0.108.00 @ 780nm0.63 5.92 S-LAH64 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
10mm Dia., 0.63 NA, 600-1050nm Coated, NIR Aspheric Lens16-27810.00 +0.00/-0.108.00 @ 780nm0.63 5.92 S-LAH64 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
10mm Dia., 0.63 NA, 900-1700nm Coated, NIR Aspheric Lens16-29010.00 +0.00/-0.108.00 @ 780nm0.63 5.92 S-LAH64 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
12.5mm Dia., 0.25 NA, Uncoated, NIR Aspheric Lens13-49812.50 +0.00/-0.1025.00 @ 780nm0.25 22.35 N-BK7 780 1.2λ Uncoated
12.5mm Dia., 0.25 NA, 350-700nm Coated, NIR Aspheric Lens16-26812.50 +0.00/-0.1025.00 @ 780nm0.25 22.35 N-BK7 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
12.5mm Dia., 0.25 NA, 600-1050nm Coated, NIR Aspheric Lens16-28012.50 +0.00/-0.1025.00 @ 780nm0.25 22.35 N-BK7 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
12.5mm Dia., 0.25 NA, 900-1700nm Coated, NIR Aspheric Lens16-29212.50 +0.00/-0.1025.00 @ 780nm0.25 22.35 N-BK7 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
12.5mm Dia., 0.63 NA, Uncoated, NIR Aspheric Lens13-49712.50 +0.00/-0.1010.00 @ 780nm0.63 7.61 S-LAH64 780 1.2λ Uncoated
12.5mm Dia., 0.63 NA, 350-700nm Coated, NIR Aspheric Lens16-26712.50 +0.00/-0.1010.00 @ 780nm0.63 7.61 S-LAH64 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
12.5mm Dia., 0.63 NA, 600-1050nm Coated, NIR Aspheric Lens16-27912.50 +0.00/-0.1010.00 @ 780nm0.63 7.61 S-LAH64 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
12.5mm Dia., 0.63 NA, 900-1700nm Coated, NIR Aspheric Lens16-29112.50 +0.00/-0.1010.00 @ 780nm0.63 7.61 S-LAH64 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
15mm Dia., 0.25 NA, Uncoated 1550nm NIR Aspheric Lens17-41715.00 +0.0/-0.02530.00 @ 1550nm0.25 25.65 @ 587.6nmN-SF6 1550
Uncoated
15mm Dia., 0.25 NA, BBAR Coated 1550nm SWIR+ Aspheric Lens29-98715.00 +0.0/-0.02530.00 @ 1550nm0.25 25.65 N-SF6 1550
SWIR+ Ravg <0.5% @ 900 - 1700nm @ ±30° AOI  Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
15mm Dia., 0.25 NA, V-Coated 1550nm NIR Aspheric Lens22-93715.00 +0.0/-0.02530.00 @ 1550nm0.25 25.65 @ 587.6nmN-SF6 1550
1550nm V-Coat Rabs < 0.25% @ 1550nm @ 0° AOI
15mm Dia., 0.5 NA, Uncoated, NIR Aspheric Lens18-74915.00 +0.00/-0.1015.00 @ 2000nm0.5 10.303 N-FK58 2000 1.2λ Uncoated
15mm Dia., 0.50 NA, Uncoated 1550nm NIR Aspheric Lens17-41615.00 +0.0/-0.02515.00 @ 1550nm0.5 11.44 @ 587.6nmN-SF6 1550
Uncoated
15mm Dia., 0.50 NA, BBAR Coated 1550nm SWIR+ Aspheric Lens29-98615.00 +0.0/-0.02515.00 @ 1550nm0.5 11.44 N-SF6 1550
SWIR+ Ravg <0.5% @ 900 - 1700nm @ ±30° AOI  Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
15mm Dia., 0.50 NA, V-Coated 1550nm NIR Aspheric Lens22-93615.00 +0.0/-0.02515.00 @ 1550nm0.5 11.44 @ 587.6nmN-SF6 1550
1550nm V-Coat Rabs < 0.25% @ 1550nm @ 0° AOI
15mm Dia., 0.63 NA, Uncoated, NIR Aspheric Lens13-49915.00 +0.00/-0.1012.00 @ 780nm0.63 9.02 S-LAH64 780 1.2λ Uncoated
15mm Dia., 0.63 NA, 350-700nm Coated, NIR Aspheric Lens16-26915.00 +0.00/-0.1012.00 @ 780nm0.63 9.02 S-LAH64 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
15mm Dia., 0.63 NA, 600-1050nm Coated, NIR Aspheric Lens16-28115.00 +0.00/-0.1012.00 @ 780nm0.63 9.02 S-LAH64 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
15mm Dia., 0.63 NA, 900-1700nm Coated, NIR Aspheric Lens16-29315.00 +0.00/-0.1012.00 @ 780nm0.63 9.02 S-LAH64 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
15mm Dia., 0.67 NA, Uncoated 1550nm NIR Aspheric Lens17-41515.00 +0.0/-0.02511.25 @ 1550nm0.67 7.88 @ 587.6nmN-SF6 1550
Uncoated
15mm Dia., 0.67 NA, BBAR Coated 1550nm SWIR+ Aspheric Lens29-98515.00 +0.0/-0.02511.25 @ 1550nm0.67 7.88 N-SF6 1550
SWIR+ Ravg <0.5% @ 900 - 1700nm @ ±30° AOI  Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
15mm Dia., 0.67 NA, V-Coated 1550nm NIR Aspheric Lens22-93515.00 +0.0/-0.02511.25 @ 1550nm0.67 7.88 @ 587.6nmN-SF6 1550
1550nm V-Coat Rabs < 0.25% @ 1550nm @ 0° AOI
18mm Dia., 0.60 NA, Uncoated, NIR Aspheric Lens13-50018.00 +0.00/-0.1015.00 @ 780nm0.60 11.51 S-LAH64 780 1.2λ Uncoated
18mm Dia., 0.60 NA, 350-700nm Coated, NIR Aspheric Lens16-27018.00 +0.00/-0.1015.00 @ 780nm0.60 11.51 S-LAH64 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
18mm Dia., 0.60 NA, 600-1050nm Coated, NIR Aspheric Lens16-28218.00 +0.00/-0.1015.00 @ 780nm0.60 11.51 S-LAH64 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
18mm Dia., 0.60 NA, 900-1700nm Coated, NIR Aspheric Lens16-29418.00 +0.00/-0.1015.00 @ 780nm0.60 11.51 S-LAH64 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
20mm Dia., 0.56 NA, Uncoated, NIR Aspheric Lens13-50120.00 +0.00/-0.1017.99 @ 780nm0.56 14.00 S-LAH64 780 1.2λ Uncoated
20mm Dia., 0.56 NA, 350-700nm Coated, NIR Aspheric Lens16-27120.00 +0.00/-0.1017.99 @ 780nm0.56 14.00 S-LAH64 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
20mm Dia., 0.56 NA, 600-1050nm Coated, NIR Aspheric Lens16-28320.00 +0.00/-0.1017.99 @ 780nm0.56 14.00 S-LAH64 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
20mm Dia., 0.56 NA, 900-1700nm Coated, NIR Aspheric Lens16-29520.00 +0.00/-0.1017.99 @ 780nm0.56 14.00 S-LAH64 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
25mm Dia., 0.25 NA, Uncoated, NIR Aspheric Lens13-50325.00 +0.00/-0.1050.00 @ 780nm0.25 46.03 N-BK7 780 1.2λ Uncoated
25mm Dia., 0.25 NA, Uncoated 1550nm NIR Aspheric Lens17-42125.00 +0.0/-0.02550.00 @ 1550nm0.25 42.65 @ 587.6nmN-SF6 1550
Uncoated
25mm Dia., 0.25 NA, 350-700nm Coated, NIR Aspheric Lens16-27325.00 +0.00/-0.1050.00 @ 780nm0.25 46.03 N-BK7 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
25mm Dia., 0.25 NA, 600-1050nm Coated, NIR Aspheric Lens16-28525.00 +0.00/-0.1050.00 @ 780nm0.25 46.03 N-BK7 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
25mm Dia., 0.25 NA, 900-1700nm Coated, NIR Aspheric Lens16-29725.00 +0.00/-0.1050.00 @ 780nm0.25 46.03 N-BK7 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
25mm Dia., 0.25 NA, BBAR Coated 1550nm SWIR+ Aspheric Lens29-99025.00 +0.0/-0.02550.00 @ 1550nm0.25 42.65 N-SF6 1550
SWIR+ Ravg <0.5% @ 900 - 1700nm @ ±30° AOI  Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
25mm Dia., 0.25 NA, V-Coated 1550nm NIR Aspheric Lens22-94025.00 +0.0/-0.02550.00 @ 1550nm0.25 42.65 @ 587.6nmN-SF6 1550
1550nm V-Coat Rabs < 0.25% @ 1550nm @ 0° AOI
25mm Dia., 0.50 NA, Uncoated 1550nm NIR Aspheric Lens17-41925.00 +0.0/-0.02525.00 @ 1550nm0.5 18.97 @ 587.6nmN-SF6 1550
Uncoated
25mm Dia., 0.50 NA, BBAR Coated 1550nm SWIR+ Aspheric Lens29-98925.00 +0.0/-0.02525.00 @ 1550nm0.5 18.97 N-SF6 1550
SWIR+ Ravg <0.5% @ 900 - 1700nm @ ±30° AOI  Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
25mm Dia., 0.50 NA, V-Coated 1550nm NIR Aspheric Lens22-93925.00 +0.0/-0.02525.00 @ 1550nm0.5 18.97 @ 587.6nmN-SF6 1550
1550nm V-Coat Rabs < 0.25% @ 1550nm @ 0° AOI
25mm Dia., 0.63 NA, Uncoated, NIR Aspheric Lens13-50225.00 +0.00/-0.1020.00 @ 780nm0.63 15.73 S-LAH64 780 1.2λ Uncoated
25mm Dia., 0.63 NA, 350-700nm Coated, NIR Aspheric Lens16-27225.00 +0.00/-0.1020.00 @ 780nm0.63 15.73 S-LAH64 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
25mm Dia., 0.63 NA, 600-1050nm Coated, NIR Aspheric Lens16-28425.00 +0.00/-0.1020.00 @ 780nm0.63 15.73 S-LAH64 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
25mm Dia., 0.63 NA, 900-1700nm Coated, NIR Aspheric Lens16-29625.00 +0.00/-0.1020.00 @ 780nm0.63 15.73 S-LAH64 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
25mm Dia., 0.83 NA, Uncoated 1550nm NIR Aspheric Lens17-41825.00 +0.0/-0.02515.00 @ 1550nm0.83 8.67 @ 587.6nmN-SF6 1550
Uncoated
25mm Dia., 0.83 NA, BBAR Coated 1550nm SWIR+ Aspheric Lens29-98825.00 +0.0/-0.02515.00 @ 1550nm0.83 8.67 N-SF6 1550
SWIR+ Ravg <0.5% @ 900 - 1700nm @ ±30° AOI  Rabs <1.5% @ 900 - 1700nm @ ±30° AOI
25mm Dia., 0.83 NA, V-Coated 1550nm NIR Aspheric Lens22-93825.00 +0.0/-0.02515.00 @ 1550nm0.83 8.67 @ 587.6nmN-SF6 1550
1550nm V-Coat Rabs < 0.25% @ 1550nm @ 0° AOI
30mm Dia., 0.58 NA, Uncoated, NIR Aspheric Lens13-50430.00 +0.00/-0.1026.00 @ 780nm0.58 20.57 S-LAH64 780 1.2λ Uncoated
30mm Dia., 0.58 NA, 350-700nm Coated, NIR Aspheric Lens16-27430.00 +0.00/-0.1026.00 @ 780nm0.58 20.57 S-LAH64 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
30mm Dia., 0.58 NA, 600-1050nm Coated, NIR Aspheric Lens16-28630.00 +0.00/-0.1026.00 @ 780nm0.58 20.57 S-LAH64 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
30mm Dia., 0.58 NA, 900-1700nm Coated, NIR Aspheric Lens16-29830.00 +0.00/-0.1026.00 @ 780nm0.58 20.57 S-LAH64 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
45mm Dia., 0.70 NA, Uncoated, NIR Aspheric Lens13-50545.00 +0.00/-0.1032.00 @ 780nm0.70 24.18 S-LAH64 780 1.2λ Uncoated
45mm Dia., 0.70 NA, 350-700nm Coated, NIR Aspheric Lens16-27545.00 +0.00/-0.1032.00 @ 780nm0.70 24.18 S-LAH64 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
45mm Dia., 0.70 NA, 600-1050nm Coated, NIR Aspheric Lens16-28745.00 +0.00/-0.1032.00 @ 780nm0.70 24.18 S-LAH64 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
45mm Dia., 0.70 NA, 900-1700nm Coated, NIR Aspheric Lens16-29945.00 +0.00/-0.1032.00 @ 780nm0.70 24.18 S-LAH64 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
50mm Dia., 0.25 NA, Uncoated, NIR Aspheric Lens13-50750.00 +0.00/-0.10100.00 @ 780nm0.25 93.39 N-BK7 780 1.2λ Uncoated
50mm Dia., 0.25 NA, 350-700nm Coated, NIR Aspheric Lens16-27750.00 +0.00/-0.10100.00 @ 780nm0.25 93.39 N-BK7 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
50mm Dia., 0.25 NA, 600-1050nm Coated, NIR Aspheric Lens16-28950.00 +0.00/-0.10100.00 @ 780nm0.25 93.39 N-BK7 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
50mm Dia., 0.25 NA, 900-1700nm Coated, NIR Aspheric Lens16-30150.00 +0.00/-0.10100.00 @ 780nm0.25 93.39 N-BK7 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
50mm Dia., 0.63 NA, Uncoated, NIR Aspheric Lens13-50650.00 +0.00/-0.1040.00 @ 780nm0.63 31.28 S-LAH64 780 1.2λ Uncoated
50mm Dia., 0.63 NA, 350-700nm Coated, NIR Aspheric Lens16-27650.00 +0.00/-0.1040.00 @ 780nm0.63 31.28 S-LAH64 780 1.2λ VIS+ (350-700nm) Ravg < 0.5% @ 350 - 700nm @ 0° ±30° AOI Rabs < 1.5% @ 350 - 700nm @ 0° ±30° AOI
50mm Dia., 0.63 NA, 600-1050nm Coated, NIR Aspheric Lens16-28850.00 +0.00/-0.1040.00 @ 780nm0.63 31.28 S-LAH64 780 1.2λ NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
50mm Dia., 0.63 NA, 900-1700nm Coated, NIR Aspheric Lens16-30050.00 +0.00/-0.1040.00 @ 780nm0.63 31.28 S-LAH64 780 1.2λ SWIR+ (900-1700nm) Ravg < 0.5% @ 900 - 1700nm @ 0° ±30° AOI Rabs < 1% @ 900 - 1700nm @ 0° ±30° AOI
75mm Dia., 0.25 NA, Uncoated, NIR Aspheric Lens13-50975.00 +0.00/-0.10150.00 @ 780nm0.25 140.08 N-BK7 780 1.2λ Uncoated
75mm Dia., 0.25 NA, 600-1050nm Coated, NIR Aspheric Lens28-91675.00 +0.00/-0.10150.00 @ 780nm0.25 140.08 N-BK7 780
NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
100mm Dia., 0.50 NA, 600-1050nm Coated, NIR Aspheric Lens28-917100.00 +0.00/-0.10100.00 @ 780nm0.50 76.18 N-BK7 780
NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
75mm Dia., 0.63 NA, Uncoated, NIR Aspheric Lens13-50875.00 +0.00/-0.1060.00 @ 780nm0.63 36.51 N-BK7 780 1.2λ Uncoated
75mm Dia., 0.63 NA, 600-1050nm Coated, NIR Aspheric Lens28-91575.00 +0.00/-0.1060.00 @ 780nm0.63 36.51 N-BK7 780
NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
100mm Dia., 0.25 NA, Uncoated, NIR Aspheric Lens13-511100.00 +0.00/-0.10200.00 @ 780nm0.25 187.43 N-BK7 780 1.2λ Uncoated
100mm Dia., 0.25 NA, 600-1050nm Coated, NIR Aspheric Lens28-918100.00 +0.00/-0.10200.00 @ 780nm0.25 187.43 N-BK7 780
NIR+ (600-1050nm) Ravg < 0.5% @ 600 - 1050nm @ 0° ±30° AOI Rabs < 1.5% @ 600 - 1050nm @ 0° ±30° AOI
100mm Dia., 0.50 NA, Uncoated, NIR Aspheric Lens13-510100.00 +0.00/-0.10100.00 @ 780nm0.50 76.18 N-BK7 780 1.2λ Uncoated
