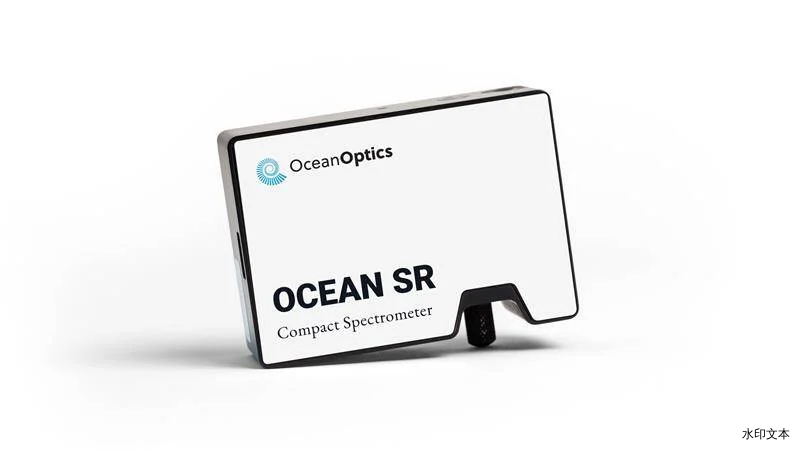

Ocean Optics SR Versatile Spectrometers

Ocean Optics SR Versatile Spectrometers

￥ 0.00
0.00


Ocean Optics SR多功能光谱仪有S2、S4和S6型号，每种型号都提供高性能和宽光谱覆盖范围，以适应各种应用。SR2光谱仪针对快速光谱采集和高信噪比（SNR）进行了优化，使其成为激光表征、等离子体监测和吸光度浓度等应用的理想选择。SR4光谱仪具有优异的热波长稳定性、低噪声CCD检测和一致的高信噪比性能，非常适合等离子体监测和反射测量。高灵敏度SR6型号提供卓越的信噪比和紫外响应，支持紫外吸收、荧光和血浆诊断等应用。Ocean Optics SR多功能光谱仪包括用户友好的OceanView软件系统，可优化光谱仪性能，简化系统集成，并访问数据进行分析。


  • 紧凑的设计和强大的性能

  • 覆盖180-1040nm的宽波长范围选项

  • 三种型号可用于各种应用


产品

标题产品编码工作温度 (°C)缝隙宽度 (μm)重量 (kg)存储温度 (°C)传感器类型光谱分辨率 (nm) 软件 波长范围 (nm)Signal to Noise S/N Ratio尺寸 (mm)综合时间
Ocean Optics SR2 NIR Versatile Spectrometer90-0170 to +55 25 0.275 -30 to +70 CCD 0.84 OceanDirect & OceanView 570 - 860 Single Scan @ 10 ms: 380:1 Max per second with High Speed Averaging Mode: 25,800:1 88.1 x 63.5 x 31.45 1 μs – 2 s
Ocean Optics SR2 Broadband Versatile Spectrometer90-0180 to +55 25 0.275 -30 to +70 CCD 1.33 OceanDirect & OceanView 180 - 900 Single Scan @ 10 ms: 380:1 Max per second with High Speed Averaging Mode: 25,800:1 88.1 x 63.5 x 31.45 1 μs – 2 s
Ocean Optics SR2 VIS-NIR Versatile Spectrometer90-0190 to +55 25 0.275 -30 to +70 CCD 1.33 OceanDirect & OceanView 350 - 1040 Single Scan @ 10 ms: 380:1 Max per second with High Speed Averaging Mode: 25,800:1 88.1 x 63.5 x 31.45 1 μs – 2 s
Ocean Optics SR4 Broadband Versatile Spectrometer90-0200 to +55 25 0.275 -30 to +70 CCD 1.65 OceanDirect & OceanView 190 - 910 Single Scan @ 10 ms: 250:1 Max per second with High Speed Averaging Mode: 3000:1 88.1 x 63.5 x 31.45 3.8 ms – 2 s
Ocean Optics SR4 VIS-NIR Versatile Spectrometer90-0210 to +55 25 0.275 -30 to +70 CCD 1.65 OceanDirect & OceanView 350 - 1040 Single Scan @ 10 ms: 250:1 Max per second with High Speed Averaging Mode: 3000:1 88.1 x 63.5 x 31.45 3.8 ms – 2 s
Ocean Optics SR6 Broadband Versatile Spectrometer90-0220 to +55 25 0.275 -30 to +70 CCD 1.65 OceanDirect & OceanView 180 - 900 Single Scan @ 10 ms: 400:1 Max per second with High Speed Averaging Mode: 3500:1 88.1 x 63.5 x 31.45 7.2 ms – 5 s
Ocean Optics SR6 VIS-NIR Versatile Spectrometer90-0230 to +55 25 0.275 -30 to +70 CCD 1.65 OceanDirect & OceanView 350 - 1040 Single Scan @ 10 ms: 400:1 Max per second with High Speed Averaging Mode: 3500:1 88.1 x 63.5 x 31.45 7.2 ms – 5 s
