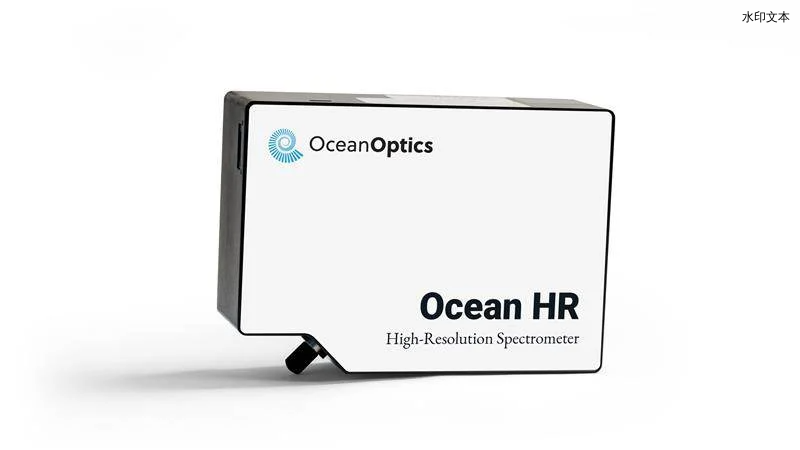

Ocean Optics HR High Resolution Spectrometers

Ocean Optics HR High Resolution Spectrometers

￥ 0.00
0.00


Ocean Optics HR高分辨率光谱仪有HR2、HR4和HR6三种型号，专为需要高分辨率解决方案的应用而设计，可通过详细的光谱分析识别窄谱峰。HR2光谱仪具有高分辨率性能、快速扫描速度和出色的热稳定性，可提供快速、实时的结果，非常适合等离子体监测和药物分析等应用。HR4光谱仪将高分辨率光谱分析与出色的热稳定性相结合，使这些型号在DNA/RNA分析、生物医学研究和高通量反射测试等对精度要求较高的环境中表现出色。HR6光谱仪具有高灵敏度、高分辨率和出色的信噪比（SNR）性能，适用于蛋白质吸收和宽带光源发射等应用。Ocean Optics HR高分辨率光谱仪配备了用户友好的OceanView软件系统，可优化光谱仪性能、简化系统集成并访问数据以进行分析。


  • 用于窄峰识别的高分辨率光谱仪

  • 跨越UV-VIS、VIS-NIR和NIR波长的光谱范围

  • 快速采集速度和出色的热稳定性


                                               产品

标题产品编码工作温度 (°C)缝隙宽度 (μm)重量 (kg)存储温度 (°C)传感器类型光谱分辨率 (nm) 软件 波长范围 (nm)Signal to Noise S/N Ratio尺寸 (mm)综合时间
Ocean Optics HR2 NIR High Resolution Spectrometer90-0240 to +55 25 0.9306 -30 to +70 CCD 0.84 OceanDirect & OceanView 750 - 900 Single Scan @ 10 ms: 380:1 Max per second with High Speed Averaging Mode: 25,800:1 149.0 x 106.4 x 48.2 1μs - 2s
Ocean Optics HR2 UV-VIS High Resolution Spectrometer90-0250 to +55 25 0.9306 -30 to +70 CCD 1.33 OceanDirect & OceanView 200 - 650 Single Scan @ 10 ms: 380:1 Max per second with High Speed Averaging Mode: 25,800:1 149.0 x 106.4 x 48.2 1μs - 2s
Ocean Optics HR2 VIS-NIR High Resolution Spectrometer90-0260 to +55 25 0.9306 -30 to +70 CCD 1.33 OceanDirect & OceanView 400 - 850 Single Scan @ 10 ms: 380:1 Max per second with High Speed Averaging Mode: 25,800:1 149.0 x 106.4 x 48.2 1μs - 2s
Ocean Optics HR4 UV-VIS High Resolution Spectrometer90-0270 to +55 25 0.9306 -30 to +70 CCD 1.65 OceanDirect & OceanView 200 - 660 Single Scan @ 10 ms: 250:1 Max per second with High Speed Averaging Mode: 3000:1 149.0 x 106.4 x 48.2 3.8 ms – 10 s
Ocean Optics HR4 VIS-NIR High Resolution Spectrometer90-0280 to +55 25 0.9306 -30 to +70 CCD 1.65 OceanDirect & OceanView 400 - 850 Single Scan @ 10 ms: 250:1 Max per second with High Speed Averaging Mode: 3000:1 149.0 x 106.4 x 48.2 3.8 ms – 10 s
Ocean Optics HR6 VIS-NIR High Resolution Spectrometer90-0290 to +55 25 0.9306 -30 to +70 CCD 1.65 OceanDirect & OceanView 400 - 840 Single Scan @ 10 ms: 400:1 Max per second with High Speed Averaging Mode: 3500:1 149.0 x 106.4 x 48.2 7.2 ms – 5 s
Ocean Optics HR6 UV-VIS High Resolution Spectrometer90-0300 to +55 25 0.9306 -30 to +70 CCD 1.65 OceanDirect & OceanView 200 - 650 Single Scan @ 10 ms: 400:1 Max per second with High Speed Averaging Mode: 3500:1 149.0 x 106.4 x 48.2 7.2 ms – 5 s
