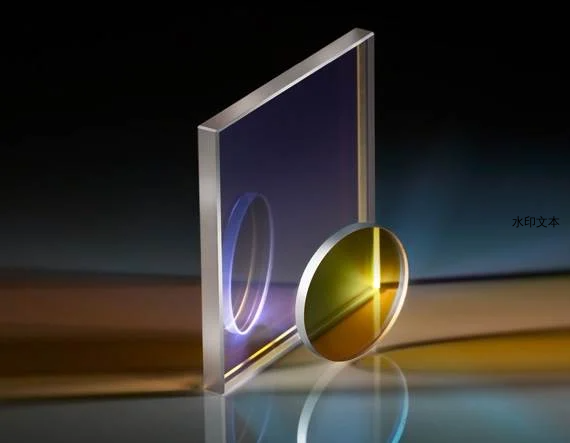

UV平板分光镜

UV平板分光镜

￥ 0.00
0.00


TECHSPEC®UV平板分光镜在250 - 450nm光谱范围内使用将可提供最佳性能，低吸收以及几乎可忽视的鬼影反射。高品质熔融石英材料，可降低成像或光子学系统中由分光镜所引起的附加光程。TECHSPEC® UV平板分光镜提供多种透射率/反射率，非常适合用于荧光成像、生物医学和制药应用、分辨以及光谱学等方面。所有镀膜设计入射角为45°，无偏振。


  • 提供多种透射率/反射率

  • 第二面镀宽带增透膜

  • 采用熔融石英材料

                          产品

标题产品编码AOI (°)CA (%)涂层规格构造 Dia. (mm)尺寸 (mm)平行度（弧分）反射/透射比 (R/T)基底表面平整度 (P-V)表面质量厚度 (mm)
30R/70T 10mm直径，紫外平板分光镜65-92245 >85 Surface 1: Rabs = 30 ±5% @ 350nm, Ravg = 30 ±10% over 250 - 450nm Tabs =70 ±5% @ 350nm, Tavg = 70 ±10% over 250 - 450nm  Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 10.00 +0.00/-0.20
<5 30/70 Fused Silica (Corning 7980)1λ 60-40 1.00 ±0.38
30R/70T 12.5mm直径，紫外光平板分光镜48-19445 >85 Surface 1: Rabs = 30 ±5% @ 350nm, Ravg = 30 ±10% over 250 - 450nm Tabs =70 ±5% @ 350nm, Tavg = 70 ±10% over 250 - 450nm  Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 12.50 +0.00/-0.20
<5 30/70 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
30R/70T 12.5 x 12.5mm， 紫外光平板分光镜48-19545 >85 Surface 1: Rabs = 30 ±5% @ 350nm, Ravg = 30 ±10% over 250 - 450nm Tabs =70 ±5% @ 350nm, Tavg = 70 ±10% over 250 - 450nm  Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate
12.5 x 12.5 +0.00/-0.20 <5 30/70 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
30R/70T 20mm直径，紫外平板分光镜65-92445 >85 Surface 1: Rabs = 30 ±5% @ 350nm, Ravg = 30 ±10% over 250 - 450nm Tabs =70 ±5% @ 350nm, Tavg = 70 ±10% over 250 - 450nm  Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 20.00 +0.00/-0.20
<5 30/70 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
30R/70T 25mm直径，紫外光平板分光镜48-19645 >85 Surface 1: Rabs = 30 ±5% @ 350nm, Ravg = 30 ±10% over 250 - 450nm Tabs =70 ±5% @ 350nm, Tavg = 70 ±10% over 250 - 450nm  Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 25.00 +0.00/-0.20
<5 30/70 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
30R/70T 25 x 25mm， 紫外光平板分光镜48-19745 >85 Surface 1: Rabs = 30 ±5% @ 350nm, Ravg = 30 ±10% over 250 - 450nm Tabs =70 ±5% @ 350nm, Tavg = 70 ±10% over 250 - 450nm  Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate
25.0 x 25.0 +0.00/-0.20 <5 30/70 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
30R/70T 30mm直径，紫外平板分光镜65-92645 >85 Surface 1: Rabs = 30 ±5% @ 350nm, Ravg = 30 ±10% over 250 - 450nm Tabs =70 ±5% @ 350nm, Tavg = 70 ±10% over 250 - 450nm  Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 30.00 +0.00/-0.20
<5 30/70 Fused Silica (Corning 7980)1λ 60-40 3.00 ±0.38
30R/70T 40mm直径，紫外平板分光镜65-92845 >85 Surface 1: Rabs = 30 ±5% @ 350nm, Ravg = 30 ±10% over 250 - 450nm Tabs =70 ±5% @ 350nm, Tavg = 70 ±10% over 250 - 450nm  Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 40.00 +0.00/-0.20
<5 30/70 Fused Silica (Corning 7980)1λ 60-40 4.00 ±0.38
30R/70T 50mm直径，紫外光平板分光镜48-19845 >85 Surface 1: Rabs = 30 ±5% @ 350nm, Ravg = 30 ±10% over 250 - 450nm Tabs =70 ±5% @ 350nm, Tavg = 70 ±10% over 250 - 450nm  Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 50.00 +0.00/-0.20
<5 30/70 Fused Silica (Corning 7980)1λ 60-40 4.00 ±0.38
30R/70T 50 x 50mm， 紫外光平板分光镜48-19945 >85 Surface 1: Rabs = 30 ±5% @ 350nm, Ravg = 30 ±10% over 250 - 450nm Tabs =70 ±5% @ 350nm, Tavg = 70 ±10% over 250 - 450nm  Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate
50.0 x 50.0 +0.00/-0.20 <5 30/70 Fused Silica (Corning 7980)1λ 60-40 4.00 ±0.38
50R/50T 10mm直径，紫外平板分光镜65-92145 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 10.00 +0.00/-0.20
<5 50/50 Fused Silica (Corning 7980)1λ 60-40 1.00 ±0.38
50R/50T 12.5mm直径，紫外光平板分光镜48-18845 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 12.50 +0.00/-0.20
<5 50/50 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
50R/50T 12.5 x 12.5mm， 紫外光平板分光镜48-18945 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate
12.5 x 12.5 +0.00/-0.20 <5 50/50 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
50R/50T 12.5mm x 17.5mm, UV Plate Beamsplitter72-24945 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate
12.50 x 17.50 +0.00/-0.20<5 50/50 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
50R/50T 20mm直径，紫外平板分光镜65-92345 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 20.00 +0.00/-0.20
<5 50/50 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
50R/50T 25mm直径，紫外光平板分光镜48-19045 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 25.00 +0.00/-0.20
<5 50/50 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
50R/50T 25 x 25mm， 紫外光平板分光镜48-19145 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate
25.0 x 25.0 +0.00/-0.20 <5 50/50 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
50R/50T 25mm x 35mm, UV Plate Beamsplitter72-25045 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate
25.00 x 35.00 +0.00/-0.20<5 50/50 Fused Silica (Corning 7980)1λ 60-40 3.00 ±0.38
50R/50T 30mm直径，紫外平板分光镜65-92545 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 30.00 +0.00/-0.20
<5 50/50 Fused Silica (Corning 7980)1λ 60-40 3.00 ±0.38
50R/50T 40mm直径，紫外平板分光镜65-92745 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 40.00 +0.00/-0.20
<5 50/50 Fused Silica (Corning 7980)1λ 60-40 4.00 ±0.38
50R/50T 50mm直径，紫外光平板分光镜48-19245 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 50.00 +0.00/-0.20
<5 50/50 Fused Silica (Corning 7980)1λ 60-40 4.00 ±0.38
50R/50T 50mm x 35mm, UV Plate Beamsplitter72-25145 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate
35.00 x 50.00 +0.00/-0.20<5 50/50 Fused Silica (Corning 7980)1λ 60-40 4.00 ±0.38
50R/50T 50 x 50mm， 紫外光平板分光镜48-19345 >85 Surface 1: Rabs = 50 ±5% @ 350nm, Ravg = 50 ±10% over 250 - 450nm   Tabs =50 ±5% @ 350nm, Tavg = 50 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate
50.0 x 50.0 +0.00/-0.20 <5 50/50 Fused Silica (Corning 7980)1λ 60-40 4.00 ±0.38
70R/30T 10mm直径，紫外平板分光镜84-48345 >85 Surface 1: Rabs = 70 ±5% @ 350nm, Ravg = 70 ±10% over 250 - 450nm   Tabs =30 ±5% @ 350nm, Tavg = 30 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 10.00 +0.00/-0.20
<5 70/30 Fused Silica (Corning 7980)1λ 60-40 1.00 ±0.38
70R/30T 12.5mm直径，紫外平板分光镜84-48445 >85 Surface 1: Rabs = 70 ±5% @ 350nm, Ravg = 70 ±10% over 250 - 450nm   Tabs =30 ±5% @ 350nm, Tavg = 30 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 12.50 +0.00/-0.20
<5 70/30 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
70R/30T 12.5 x 12.5mm，紫外平板分光镜84-48545 >85 Surface 1: Rabs = 70 ±5% @ 350nm, Ravg = 70 ±10% over 250 - 450nm   Tabs =30 ±5% @ 350nm, Tavg = 30 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate
12.5 x 12.5 +0.00/-0.20 <5 70/30 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
70R/30T 20mm直径，紫外平板分光镜84-48645 >85 Surface 1: Rabs = 70 ±5% @ 350nm, Ravg = 70 ±10% over 250 - 450nm   Tabs =30 ±5% @ 350nm, Tavg = 30 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 20.00 +0.00/-0.20
<5 70/30 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
70R/30T 25mm直径，紫外平板分光镜84-48745 >85 Surface 1: Rabs = 70 ±5% @ 350nm, Ravg = 70 ±10% over 250 - 450nm   Tabs =30 ±5% @ 350nm, Tavg = 30 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 25.00 +0.00/-0.20
<5 70/30 Fused Silica (Corning 7980)1λ 60-40 2.00 ±0.38
70R/30T 30mm直径，紫外平板分光镜84-48945 >85 Surface 1: Rabs = 70 ±5% @ 350nm, Ravg = 70 ±10% over 250 - 450nm   Tabs =30 ±5% @ 350nm, Tavg = 30 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 30.00 +0.00/-0.20
<5 70/30 Fused Silica (Corning 7980)1λ 60-40 3.00 ±0.38
70R/30T 40mm直径，紫外平板分光镜84-49045 >85 Surface 1: Rabs = 70 ±5% @ 350nm, Ravg = 70 ±10% over 250 - 450nm   Tabs =30 ±5% @ 350nm, Tavg = 30 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 40.00 +0.00/-0.20
<5 70/30 Fused Silica (Corning 7980)1λ 60-40 4.00 ±0.38
70R/30T 50mm直径，紫外平板分光镜84-49145 >85 Surface 1: Rabs = 70 ±5% @ 350nm, Ravg = 70 ±10% over 250 - 450nm   Tabs =30 ±5% @ 350nm, Tavg = 30 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate 50.00 +0.00/-0.20
<5 70/30 Fused Silica (Corning 7980)1λ 60-40 4.00 ±0.38
70R/30T 50 x 50mm，紫外平板分光镜84-49245 >85 Surface 1: Rabs = 70 ±5% @ 350nm, Ravg = 70 ±10% over 250 - 450nm   Tabs =30 ±5% @ 350nm, Tavg = 30 ±10% over 250 - 450nm    Surface 2: BBAR (Ravg <1%, Rabs <2% over 250 - 450nm) Plate
50.0 x 50.0 +0.00/-0.20 <5 70/30 Fused Silica (Corning 7980)1λ 60-40 4.00 ±0.38
