OD 4.0 10nm镀加硬膜的带通滤光片
￥ 0.00
0.00
TECHSPEC® OD 4.0 10nm镀加硬膜的带通滤光片是一种窄带滤光片，广泛用于火焰光度法、元件和激光谱线分离、荧光、激光二极管净化，或化学检测或分析等应用。TECHSPEC OD 4.0 10nm镀加硬膜的带通滤光片采用耐用的硬膜，在提高透过率的同时而不会降低其性能。这些滤光片提供陡斜率和深截止，能在要求严苛的应用中实现高效能。
非常适合用于生命科学或化学分析

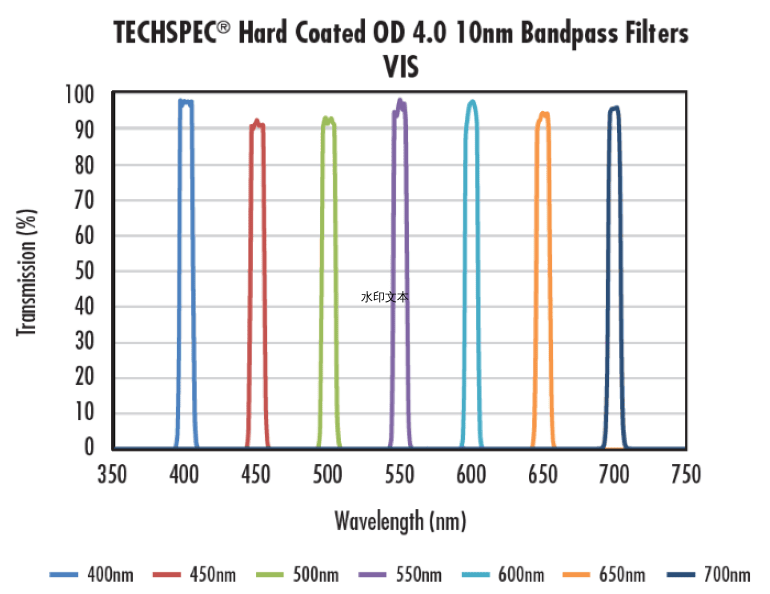

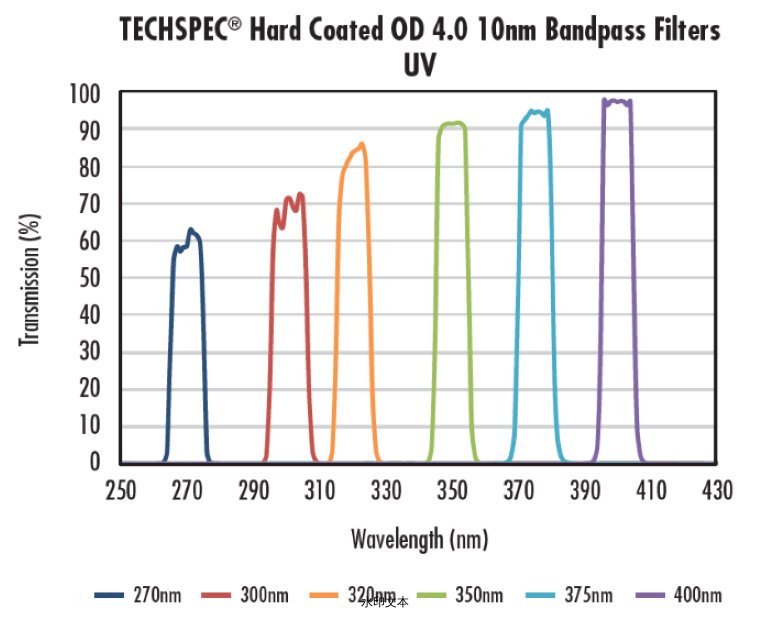

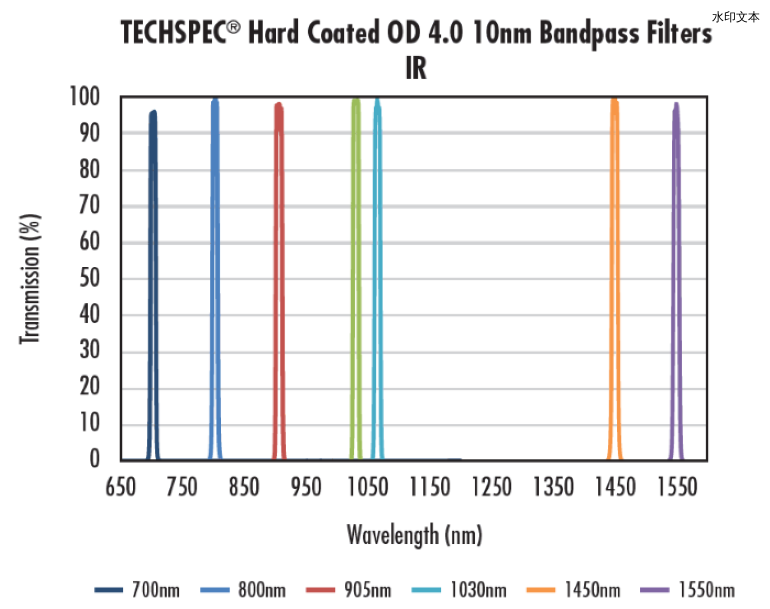

备有UV、VIS和IR中心波长可供选择

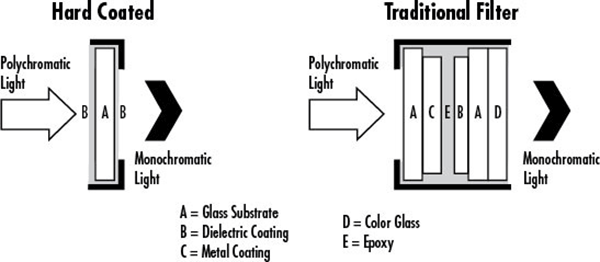

采用高品质的硬膜
另备有OD 4.0 5nm, 25nm和50nm镀加硬膜的带通滤光片
产品

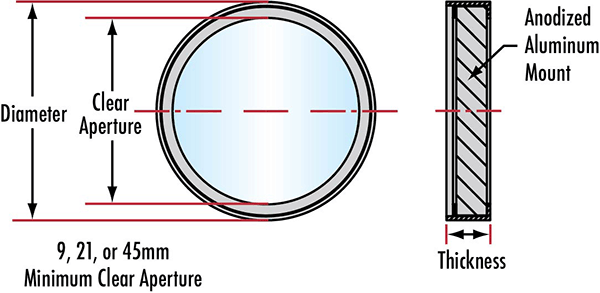

| 标题 | 产品编码 | Dia. (mm) | AOI (°) | 光密度 OD（平均） | CA (mm) | CWL (nm) | FWHM (nm) | FWHM Tolerance (nm) | 基底 | 最小传输 (%) | 涂层 | 表面质量 |
| FILTER BP 250NM X 10NM UV OD4 12.5MM | 35-871 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 250.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >50 | Hard Coated | 80-50 |
| FILTER BP 250NM X 10NM UV OD4 25.0MM | 35-878 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 250.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >50 | Hard Coated | 80-50 |
| FILTER BP 250NM X 10NM UV OD4 50.0MM | 35-885 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 250.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >50 | Hard Coated | 80-50 |
| 254nm CWL, 12.5mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-305 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 254.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥50 | Hard Coated | 80-50 |
| 254nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-312 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 254.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥50 | Hard Coated | 80-50 |
| 254nm CWL, 50mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-319 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 254.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥50 | Hard Coated | 80-50 |
| FILTER BP 260NM X 10NM UV OD4 12.5MM | 35-872 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 260.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >50 | Hard Coated | 80-50 |
| FILTER BP 260NM X 10NM UV OD4 25.0MM | 35-879 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 260.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >50 | Hard Coated | 80-50 |
| 266nm CWL, 12.5mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-306 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 266.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥50 | Hard Coated | 80-50 |
| 266nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-313 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 266.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥50 | Hard Coated | 80-50 |
| 266nm CWL, 50mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-320 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 266.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥50 | Hard Coated | 80-50 |
| FILTER BP 270NM X 10NM UV OD4 12.5MM | 35-873 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 270.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >60 | Hard Coated | 80-50 |
| FILTER BP 270NM X 10NM UV OD4 25.0MM | 35-880 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 270.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >60 | Hard Coated | 80-50 |
| FILTER BP 270NM X 10NM UV OD4 50.0MM | 35-887 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 270.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >60 | Hard Coated | 80-50 |
| FILTER BP 280NM X 10NM UV OD4 12.5MM | 35-874 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 280.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >60 | Hard Coated | 80-50 |
| FILTER BP 280NM X 10NM UV OD4 25.0MM | 35-881 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 280.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >60 | Hard Coated | 80-50 |
| FILTER BP 280NM X 10NM UV OD4 50.0MM | 35-888 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 280.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >60 | Hard Coated | 80-50 |
| FILTER BP 285NM X 10NM UV OD4 12.5MM | 35-875 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 285.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >65 | Hard Coated | 80-50 |
| FILTER BP 285NM X 10NM UV OD4 25.0MM | 35-882 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 285.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >65 | Hard Coated | 80-50 |
| FILTER BP 285NM X 10NM UV OD4 50.0MM | 35-889 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 285.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >65 | Hard Coated | 80-50 |
| FILTER BP 290NM X 10NM UV OD4 12.5MM | 35-876 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 290.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >70 | Hard Coated | 80-50 |
| FILTER BP 290NM X 10NM UV OD4 25.0MM | 35-883 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 290.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >70 | Hard Coated | 80-50 |
| FILTER BP 290NM X 10NM UV OD4 50.0MM | 35-890 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 290.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >70 | Hard Coated | 80-50 |
| FILTER BP 300NM X 10NM UV OD4 12.5MM | 35-877 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 300.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >65 | Hard Coated | 80-50 |
| FILTER BP 300NM X 10NM UV OD4 25.0MM | 35-884 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 300.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >65 | Hard Coated | 80-50 |
| FILTER BP 300NM X 10NM UV OD4 50.0MM | 35-891 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 300.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >65 | Hard Coated | 80-50 |
| FILTER BP 310NM X 10NM OD4 12.5mm Dia | 34-972 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 310.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥70 | Hard Coated | 80-50 |
| FILTER BP 310NM X 10NM OD4 25.0MM Dia | 34-976 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 310.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥70 | Hard Coated | 80-50 |
| FILTER BP 310NM X 10NM OD4 50.0MM Dia | 34-980 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 310.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥70 | Hard Coated | 80-50 |
| FILTER BP 313NM X 10NM OD4 12.5mm Dia | 34-973 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 313.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥75 | Hard Coated | 80-50 |
| FILTER BP 313NM X 10NM OD4 25.0MM Dia | 34-977 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 313.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥75 | Hard Coated | 80-50 |
| FILTER BP 313NM X 10NM OD4 50.0MM Dia | 34-981 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 313.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | ≥75 | Hard Coated | 80-50 |
| FILTER BP 320NM X 10NM OD4 12.5mm Dia | 34-974 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 320.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥75 | Hard Coated | 80-50 |
| FILTER BP 320NM X 10NM OD4 25.0MM Dia | 34-978 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 320.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥75 | Hard Coated | 80-50 |
| FILTER BP 320NM X 10NM OD4 50.0MM Dia | 34-982 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 320.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥75 | Hard Coated | 80-50 |
| FILTER BP 330NM X 10NM OD4 12.5mm Dia | 34-975 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 330.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥75 | Hard Coated | 80-50 |
| FILTER BP 330NM X 10NM OD4 25.0MM Dia | 34-979 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 330.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥75 | Hard Coated | 80-50 |
| FILTER BP 330NM X 10NM OD4 50.0MM Dia | 34-983 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 330.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥75 | Hard Coated | 80-50 |
| 337nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-067 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 337.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 337nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-128 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 337.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 337nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-189 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 337.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 340nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-068 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 340.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 340nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-129 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 340.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 340nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-190 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 340.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 343nm CWL, 12.5mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-307 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 343.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 343nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-314 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 343.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 343nm CWL, 50mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-321 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 343.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 350nm CWL, 12.5mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-183 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 350.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >50 | Hard Coated | 80-50 |
| 350nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-184 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 350.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >50 | Hard Coated | 80-50 |
| 350nm CWL, 50mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-185 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 350.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Fused Silica (Corning 7980) | >50 | Hard Coated | 80-50 |
| FILTER BP 355NM X 10NM OD4 12.5MM | 34-490 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 355.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 355NM X 10NM OD4 25.0MM | 34-491 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 355.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 355NM X 10NM OD4 50.0MM | 34-492 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 355.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 365nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-069 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 365.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 365nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-130 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 365.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 365nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-191 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 365.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 372nm CWL, 12.5mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 12-147 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 372.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 372nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 12-151 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.21 | 372.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 372nm CWL, 50mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 12-155 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 372.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 375nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-732 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 375.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 375nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-736 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 375.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 375nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-740 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 375.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 394nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-070 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 394.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 394nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-131 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 394.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 394nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-192 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 394.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 400nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-071 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 400.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 400nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-132 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 400.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 400nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-193 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 400.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 405nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-072 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 405.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 405nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-133 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 405.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 405nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-194 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 405.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 413NM X 10NM OD4 12.5MM | 34-493 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 413.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 413NM X 10NM OD4 25.0MM | 34-494 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 413.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 413NM X 10NM OD4 50.0MM | 34-495 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 413.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 420nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-075 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 420.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 420nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-136 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 420.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 420nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-197 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 420.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 422NM X 10NM OD4 12.5MM | 34-496 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 422.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 422NM X 10NM OD4 25.0MM | 34-497 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 422.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 422NM X 10NM OD4 50.0MM | 34-498 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 422.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 430nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-076 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 430.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 430nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-137 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 430.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 430nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-198 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 430.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 436nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-077 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 436.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 436nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-138 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 436.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 436nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-199 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 436.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 440nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-567 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 440.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 440nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-570 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 440.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 440nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-573 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 440.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 442nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-078 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 442.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 442nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-139 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 442.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 442nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-200 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 442.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 445NM X 10NM OD4 12.5MM | 34-499 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 445.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 445NM X 10NM OD4 25.0MM | 34-500 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 445.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 445NM X 10NM OD4 50.0MM | 34-501 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 445.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 450nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-079 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 450.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 450nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-140 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 450.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 450nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-201 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 450.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 455nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-080 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 455.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 455nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-141 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 455.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 455nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-202 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 455.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 458nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-081 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 458.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 458nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-142 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 458.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 458nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-203 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 458.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 460nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 87-886 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 460.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 460nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-010 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 460.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 460nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-016 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 460.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 467nm CWL, 12.5mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-308 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 467.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 467nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-315 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 467.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 467nm CWL, 50mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-322 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 467.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 470nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-083 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 470.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 470nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-144 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 470.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 470nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-205 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 470.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 473NM X 10NM OD4 12.5MM | 34-502 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 473.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 473NM X 10NM OD4 25.0MM | 34-503 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 473.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 473NM X 10NM OD4 50.0MM | 34-504 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 473.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 480nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-084 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 480.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 480nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-145 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 480.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 480nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-206 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 480.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 486nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-085 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 486.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 486nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-146 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 486.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 486nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-207 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 486.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 488nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-086 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 488.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 488nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-147 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 488.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 488nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-208 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 488.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 492nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-087 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 492.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 492nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-148 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 492.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 492nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-209 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 492.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 500nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-088 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 500.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 500nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-149 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 500.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 500nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-210 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 500.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 505NM X 10NM OD4 12.5MM | 34-505 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 505.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 505NM X 10NM OD4 25.0MM | 34-506 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 505.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| FILTER BP 505NM X 10NM OD4 50.0MM | 34-507 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 505.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 508nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-090 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 508.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 508nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-151 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 508.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 510nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-091 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 510.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 510nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-152 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 510.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 510nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-213 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 510.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 515nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-092 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 515.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 515nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-153 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 515.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 515nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-214 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 515.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 520nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-093 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 520.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 520nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-154 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 520.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 520nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-215 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 520.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 532nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-094 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 532.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 532nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-155 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 532.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 532nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-216 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 532.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 535nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-095 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 535.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 535nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-156 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 535.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 535nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-217 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 535.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 540nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-096 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 540.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 540nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-157 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 540.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 540nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-218 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 540.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 546nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-097 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 546.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 546nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-158 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 546.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 546nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-219 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 546.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 550nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-098 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 550.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 550nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-159 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 550.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 550nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-220 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 550.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 560nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 87-887 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 560.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 560nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-011 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 560.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 560nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-017 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 560.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 561nm CWL, 12.5mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 12-148 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 561.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 561nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 12-152 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.21 | 561.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 561nm CWL, 50mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 12-156 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 561.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 568nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-099 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 568.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 568nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-160 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 568.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 568nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-221 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 568.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 580nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-100 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 580.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 580nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-161 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 580.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 580nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-222 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 580.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 589nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-101 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 589.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 589nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-162 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 589.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 589nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-223 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 589.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 594nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-733 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 594.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 594nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-737 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 594.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 594nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-741 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 594.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 600nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-102 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 600.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 600nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-163 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 600.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 600nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-224 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 600.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 610nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-103 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 610.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 610nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-164 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 610.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 610nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-225 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 610.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 620nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-104 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 620.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 620nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-165 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 620.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 620nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-226 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 620.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 632nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-105 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 632.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 632nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-166 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 632.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 632nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-227 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 632.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 636nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-106 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 636.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 636nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-167 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 636.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 636nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-228 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 636.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 640nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-107 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 640.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 640nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-168 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 640.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 640nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-229 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 640.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 647nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-108 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 647.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 647nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-169 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 647.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 647nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-230 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 647.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 650nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-109 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 650.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 650nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-170 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 650.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 650nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-231 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 650.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 656nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-110 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 656.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 656nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-171 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 656.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 656nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-232 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 656.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 660nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-086 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 660.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 660nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-089 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 660.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 660nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-092 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 660.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 671nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-111 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 671.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 671nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-172 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 671.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 671nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-233 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 671.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 676nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-112 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 676.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 676nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-173 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 676.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 676nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-234 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 676.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 680nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-568 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 680.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 680nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-571 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 680.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 680nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-574 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 680.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 685nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-734 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 685.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 685nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-738 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 685.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 685nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-742 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 685.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 690nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-113 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 690.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 690nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-174 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 690.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 690nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-235 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 690.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 694nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-114 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 694.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 694nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-175 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 694.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 694nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-236 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 694.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 700nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 87-888 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 700.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 700nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-012 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 700.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 700nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-018 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 700.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 730nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-115 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 730.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 730nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-176 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 730.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 730nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-237 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 730.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 750nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 87-889 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 750.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 750nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-013 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 750.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 750nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-019 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 750.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 752nm CWL, 12.5mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 12-149 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 752.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 752nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 12-153 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.21 | 752.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 752nm CWL, 50mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 12-157 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 752.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 766m中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-116 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 766.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 766m中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-177 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 766.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 766m中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-238 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 766.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 770nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 87-890 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 770.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 770nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-014 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 770.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 770nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-020 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 770.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 780nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-117 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 780.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 780nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-178 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 780.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 780nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-239 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 780.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 785nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-735 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 785.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 785nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-739 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 785.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 785nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-743 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 785.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 800nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-118 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 800.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 800nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-179 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 800.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 800nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-240 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 800.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 808nm CWL, 12.5mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-309 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 808.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 808nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-316 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 808.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 808nm CWL, 50mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-323 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 808.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 810nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 87-891 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 810.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 810nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-015 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 810.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 810nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-021 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 810.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 830nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-119 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 830.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 830nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-180 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 830.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 830nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-241 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 830.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 850nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-087 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 850.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 850nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-090 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 850.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 850nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-093 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 850.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 852nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-120 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 852.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 852nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-181 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 852.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 852nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-242 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 852.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 880nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-122 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 880.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 880nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-183 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 880.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 880nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-244 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 880.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 905nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-123 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 905.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 905nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-184 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 905.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 905nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-245 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 905.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 940nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-124 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 940.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 940nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-185 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 940.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 940nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-246 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 940.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 950nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-569 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 950.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 950nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-572 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 950.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 950nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 88-575 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 950.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | >85 | Hard Coated | 80-50 |
| 980nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-125 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 980.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 980nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-186 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 980.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 980nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-247 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 980.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1030nm CWL, 12.5mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-310 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 1,030.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1030nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-317 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 1,030.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1030nm CWL, 50mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-324 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 1,030.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1064nm中心波长，12.5mm直径，硬膜，OD 4，10nm带通滤波片 | 65-126 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 1,064.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1064nm中心波长，25mm直径，硬膜，OD 4，10nm带通滤波片 | 65-187 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 1,064.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1064nm中心波长，50mm直径，硬膜，OD 4，10nm带通滤波片 | 65-248 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 1,064.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1450nm CWL, 12.5mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-311 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 1,450.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1450nm CWL, 25mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-318 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 1,450.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1450nm CWL, 50mm Dia., Hard Coated OD 4.0 10nm Bandpass Filter | 39-326 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 1,450.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1550nm中心波长，12.5mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-088 | 12.50 +0.0/-0.1 | 0 | ≥4.0 | 8.5 | 1,550.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1550nm中心波长，25mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-091 | 25.00 +0.0/-0.1 | 0 | ≥4.0 | 21.0 | 1,550.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
| 1550nm中心波长，50mm直径，镀硬膜，光密度4，10nm带宽，滤光片 | 86-094 | 50.00 +0.0/-0.1 | 0 | ≥4.0 | 45 | 1,550.00 ±2.0 | 10.00 ±2.0 | ±2.0 | Optical Glass | ≥85 | Hard Coated | 80-50 |
技术数据
Copyright © 2020 上海晰微光电技术有限公司 Shanghai Gewtec Co., Ltd.
ALL RIGHTS RESERVED 沪ICP备20020489号-1
