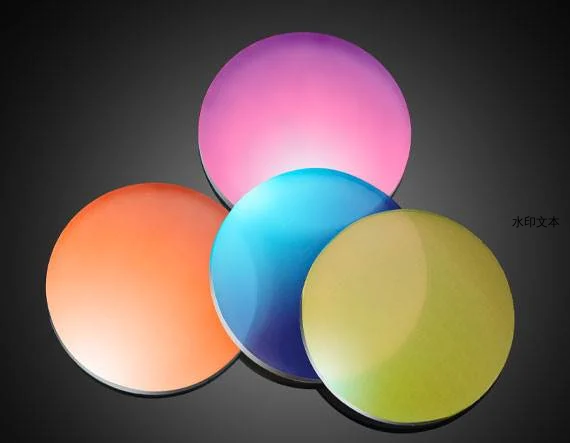

光束整形扩散片

光束整形扩散片

￥ 0.00
0.00


光束整形扩散器可在多种配置下使LED和荧光照明均匀分布，包括高效率、角度弯曲、蝙蝠翼形和椭圆形，同时保持>88%的高透射效率。高效率和角度弯曲配置提供均匀的光分布，而蝙蝠翼形和椭圆形配置则根据它们各自的几何形状分布光线。。光束整形扩散器具有8°-127°之间的扩散角，并以25mm直径未封装光学元件的形式提供，厚度不超过1.75mm，便于轻松集成到各种台式或OEM应用中。这些扩散器非常适用于需要卓越的去像素化、角度控制、颜色混合和颜色均匀性的应用场景。


  • 高效率，角度弯曲，蝙蝠翼形和椭圆形配置可供选择

  • 透过率>88%

  • 低成本、高性能的扩散片


                          产品

标题产品编码散射角 (°)Dia. (mm)工作温度 (°C)基底厚度 (mm)类型注意
25mm Dia., 30° Diffusion Angle, High Efficiency Diffuser28-92330 25.00 ±0.13-34 to +70 PMMA 1.59 ±0.16High Efficiency Diffuser
25mm Dia., 80° Diffusion Angle, High Efficiency Diffuser28-92480 25.00 ±0.13-34 to +70 PMMA 1.59 ±0.16High Efficiency Diffuser
25mm Dia., 8° Bend Angle, Angle Bending Diffuser28-92560 x 20 with 8° Angle Bend25.00 ±0.13-34 to +70 PMMA 1.59 ±0.16Angle Bending Diffuser
25mm Dia., 21° Bend Angle, Angle Bending Diffuser28-9265 x 5 with 21° Angle Bend25.00 ±0.13-34 to +70 PMMA 1.59 ±0.16Angle Bending Diffuser
25mm Dia., 120° Diffusion Angle, Linear Batwing Diffuser28-927120 25.00 ±0.13-34 to +70 PMMA 1.75 ±0.36Linear Batwing Diffuser Glossy, specularly-reflective side should face incident light for optimal performance.
25mm Dia., 124° Diffusion Angle, Linear Batwing Diffuser28-928124 25.00 ±0.13-34 to +70 PMMA 1.75 ±0.36Linear Batwing Diffuser Glossy, specularly-reflective side should face incident light for optimal performance.
25mm Dia., 127° Diffusion Angle, Linear Batwing Diffuser28-929127 25.00 ±0.13-34 to +70 PMMA 1.75 ±0.36Linear Batwing Diffuser Glossy, specularly-reflective side should face incident light for optimal performance.
25mm Dia., 60 x 10° Diffusion Angle, Elliptical Diffuser28-93060 x 10 25.00 ±0.13-34 to +70 PMMA 1.59 ±0.16Elliptical Diffuser
25mm Dia., 0.3 x 60° Diffusion Angle, Elliptical Diffuser28-9310.3 x 60 25.00 ±0.13-34 to +70 PMMA 1.59 ±0.16Elliptical Diffuser
25mm Dia., 15 x 60° Diffusion Angle, Elliptical Diffuser28-93215 x 60 25.00 ±0.13-34 to +70 PMMA 1.59 ±0.16Elliptical Diffuser
25mm Dia., 10 x 20° Diffusion Angle, Elliptical Diffuser28-93310 x 20 25.00 ±0.13-34 to +70 PMMA 1.59 ±0.16Elliptical Diffuser
50mm Dia., 30° Diffusion Angle, High Efficiency Diffuser70-76730 50.00 ±0.13-34 to +70 PMMA 1.59 +/-0.16High Efficiency Diffuser
50mm Dia., 80° Diffusion Angle, High Efficiency Diffuser70-76880 50.00 ±0.13-34 to +70 PMMA 1.59 +/-0.16High Efficiency Diffuser
50mm Dia., 8° Bend Angle, Angle Bending Diffuser70-76960 x 20 with 8° Angle Bend 50.00 ±0.13-34 to +70 PMMA 1.59 +/-0.16Angle Bending Diffuser
50mm Dia., 21° Bend Angle, Angle Bending Diffuser70-7705 x 5 with 21° Angle Bend 50.00 ±0.13-34 to +70 PMMA 1.59 +/-0.16Angle Bending Diffuser
50mm Dia., 120° Diffusion Angle, Linear Batwing Diffuser70-771120 50.00 ±0.13-34 to +70 PMMA 1.75 +/-0.36Linear Batwing Diffuser Glossy, specularly-reflective side should face incident light for optimal performance.
50mm Dia., 124° Diffusion Angle, Linear Batwing Diffuser70-772124 50.00 ±0.13-34 to +70 PMMA 1.75 +/-0.36Linear Batwing Diffuser Glossy, specularly-reflective side should face incident light for optimal performance.
50mm Dia., 127° Diffusion Angle, Linear Batwing Diffuser70-773127 50.00 ±0.13-34 to +70 PMMA 1.75 +/-0.36Linear Batwing Diffuser Glossy, specularly-reflective side should face incident light for optimal performance.
50mm Dia., 60 x 10° Diffusion Angle, Elliptical Diffuser70-77460 x 10 50.00 ±0.13-34 to +70 PMMA 1.59 +/-0.16Elliptical Diffuser
50mm Dia., 0.3 x 60° Diffusion Angle, Elliptical Diffuser70-7750.3 x 60 50.00 ±0.13-34 to +70 PMMA 1.59 +/-0.16Elliptical Diffuser
50mm Dia., 15 x 60° Diffusion Angle, Elliptical Diffuser70-77615 x 60 50.00 ±0.13-34 to +70 PMMA 1.59 +/-0.16Elliptical Diffuser
50mm Dia., 10 x 20° Diffusion Angle, Elliptical Diffuser70-77710 x 20 50.00 ±0.13-34 to +70 PMMA 1.59 +/-0.16Elliptical Diffuser


                                     技术数据

BEAM SHAPING DIFFUSERS
Type of DiffuserDescriptionDiffusion Example
High Efficiency DiffuserHigh Efficiency Diffusers are ideal for providing even illumination in LED applications. They provide excellent depixellation, angle control, and color uniformity.
Linear Batwing DiffuserLinear Batwing Diffusers diffuse light in a batwing distribution, ideal for eliminating central hotspots from a light source. Incident light should be from the glossy, specularly-reflective side of these diffusers for optimal performance. Light distributions may vary significantly depending on the light source used.
Elliptical DiffuserElliptical Diffusers diffuse light assymetrically, creating an elliptical light pattern. The diffusing angles are specified as W x L.
Angle Bending DiffuserAngle Bending Diffusers both redirect and diffuse incident light, ideal for creating diffuse lighting in space-constrained environments.
