柱面微透镜阵列
￥ 0.00
0.00

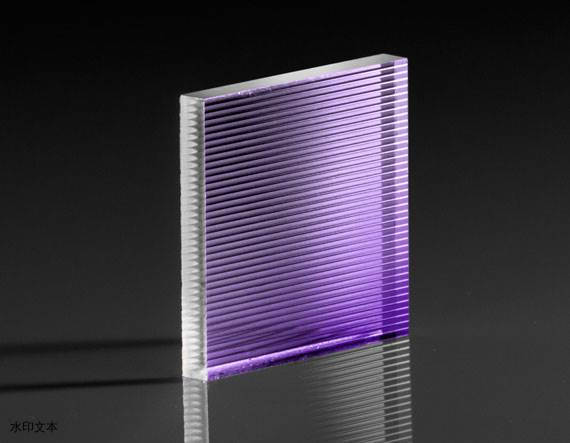

柱面微透镜阵列适用于激光器和高功率LED等多种光源的均匀化处理不同点 方形微透镜阵列, 生成点状光斑，而柱面微透镜阵列生成非高斯线光斑，非常适合从紫外到红外波段的焊接、钻孔或激光烧蚀应用。柱面微透镜阵列可提供未镀膜、可见光-近红外镀膜（VIS-NIR）或紫外-近红外镀膜（UV-NIR）的选项。 此外，该透镜还可用作快轴准直器。
生成非高斯线光斑
适用于光均匀化
在 193nm 至 2.5μm 波长范围内性能卓越
产品
| 标题 | 产品编码 | EFL (mm) | 基底 | 涂层 | 类型 | 波长范围 (nm) | 涂层规格 | 尺寸 (mm) | 发散角 (°) | 间距 (μm) | 间距容差 (μm) |
| 10 x 10mm， 250μm 间距， 6° 发散角，微透镜阵列 | 86-839 | 1.60 | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 10.0 x 10.0 ±0.05 | ±6 | 250.00 | ±0.25 | |
| 10 x 10mm， 300μm Pitch， 1.1度发散角，微透镜阵列 | 86-840 | 8.00 | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 10.0 x 10.0 ±0.05 | ±1.1 | 300.00 | ±0.25 | |
| 10 x 10mm， 300μm Pitch， 10.1度发散角，微透镜阵列 | 86-841 | 0.80 | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 10.0 x 10.0 ±0.05 | ±10.1 | 300.00 | ±0.25 | |
| 10 x 10mm， 500μm Pitch， 1.3度发散角，微透镜阵列 | 86-843 | 11.10 | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 10.0 x 10.0 ±0.05 | ±1.3 | 500.00 | ±0.25 | |
| 10 x 10mm， 500μm Pitch， 2.2度发散角，微透镜阵列 | 86-842 | 6.60 | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 10.0 x 10.0 ±0.05 | ±2.2 | 500.00 | ±0.25 | |
| 10 x 10mm， 500μm Pitch， 3.2度发散角，微透镜阵列 | 86-844 | 4.50 | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 10.0 x 10.0 ±0.05 | ±3.2 | 500.00 | ±0.25 | |
| 12 x 12mm, 500µm Pitch, 2.3° Divergence, Cyl. Microlens Array | 23-871 | 12.20 @ 1064nm | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 12.0 x 12.0 ±0.10 | 2.3 (Full Width) | 500 | ||
| 12 x 12mm, 500µm Pitch, 3.7° Divergence, Cyl. Microlens Array | 23-870 | 7.78 @ 1064nm | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 12.0 x 12.0 ±0.10 | 3.7 (Full Width) | 500 | ||
| 12 x 12mm, 500µm Pitch, 6° Divergence, Double Sided Cyl. Lens Array | 23-875 | 4.78 @ 1064nm | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 12.0 x 12.0 ±0.10 | 6.0 (Full Width) | 500 | ||
| 20 x 20mm, 800µm Pitch, 0.3° Divergence, Cyl. Microlens Array | 23-873 | 173.50 @ 1064nm | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 20.0 x 20.0 ±0.10 | 0.3 (Full Width) | 800 | ||
| 20 x 20mm, 800µm Pitch, 1.7° Divergence, Double Sided Cyl. Lens Array | 23-874 | 24.70 @ 1064nm | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 20.0 x 20.0 ±0.10 | 1.7 (Full Width) | 800 | ||
| 20 x 20mm, 800µm Pitch, 1.9° Divergence, Cyl. Microlens Array | 23-872 | 24.70 @ 1064nm | Fused Silica (Corning 7980) | Uncoated | Lens Array | 200 - 2200 | 20.0 x 20.0 ±0.10 | 1.9 (Full Width) | 800 | ||
| 10 x 10mm, 250μm Pitch, 6° Div., Cyl. Microlens Array VIS-NIR | 72-586 | 1.60 | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 10.0 x 10.0 ±0.05 | ±6 | 250.00 ±0.25 | |
| 10 x 10mm, 300μm Pitch, 1.1° Div., Cyl. Microlens Array VIS-NIR | 72-587 | 8.00 | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 10.0 x 10.0 ±0.05 | ±1.1 | 300.00 ±0.25 | |
| 10 x 10mm, 300μm Pitch, 10.1° Div., Cyl. Microlens Array VIS-NIR | 72-588 | 0.80 | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 10.0 x 10.0 ±0.05 | ±10.1 | 300.00 ±0.25 | |
| 10 x 10mm, 500μm Pitch, 1.3° Div., Cyl. Microlens Array VIS-NIR | 72-589 | 11.10 | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 10.0 x 10.0 ±0.05 | ±1.3 | 500.00 ±0.25 | |
| 10 x 10mm, 500μm Pitch, 2.2° Div., Cyl. Microlens Array, VIS-NIR | 72-590 | 6.60 | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 10.0 x 10.0 ±0.05 | ±2.2 | 500.00 ±0.25 | |
| 10 x 10mm, 500μm Pitch, 3.2° Div., Cyl. Microlens Array VIS-NIR | 72-592 | 4.50 | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 10.0 x 10.0 ±0.05 | ±3.2 | 500.00 ±0.25 | |
| 12 x 12mm, 500µm Pitch, 2.3° Div., Cyl. Microlens Array VIS-NIR | 72-591 | 12.20 @ 1064nm | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 12.0 x 12.0 ±0.10 | 2.3 (Full Width) | 500.00 | |
| 12 x 12mm, 500µm Pitch, 3.7° Div., Cyl. Microlens Array VIS-NIR | 72-593 | 7.78 @ 1064nm | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 12.0 x 12.0 ±0.10 | 3.7 (Full Width) | 500.00 | |
| 12 x 12mm, 500µm Pitch, 6° Div., Double Cyl. Lens Array VIS-NIR | 72-595 | 4.78 @ 1064nm | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 12.0 x 12.0 ±0.10 | 6.0 (Full Width) | 500.00 | |
| 20 x 20mm, 800µm Pitch, 0.3° Div., Cyl. Microlens Array VIS-NIR | 72-596 | 173.50 @ 1064nm | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 20.0 x 20.0 ±0.10 | 0.3 (Full Width) | 800.00 | |
| 20 x 20mm, 800µm Pitch, 1.7° Div., Double Cyl. Lens Array VIS-NIR | 72-594 | 24.70 @ 1064nm | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 20.0 x 20.0 ±0.10 | 1.7 (Full Width) | 800.00 | |
| 20 x 20mm, 800µm Pitch, 1.9° Div., Cyl. Microlens Array VIS-NIR | 72-597 | 24.70 @ 1064nm | Fused Silica (Corning 7980) | VIS-NIR (400-1000nm) | Lens Array | 400 - 1000 | Rabs ≤0.25% @ 880nm @ 0° AOI Ravg ≤1.25% @ 400 - 870nm @ 0° AOI Ravg ≤1.25% @ 890 - 1000nm @ 0° AOI | 20.0 x 20.0 ±0.10 | 1.9 (Full Width) | 800.00 | |
| 10 x 10mm, 250μm Pitch, 6° Div., Cyl. Microlens Array UV-VIS | 72-598 | 1.60 | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 10.0 x 10.0 ±0.05 | ±6 | 250.00 ±0.25 | |
| 10 x 10mm, 300μm Pitch, 1.1° Div., Cyl. Microlens Array UV-VIS | 72-599 | 8.00 | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 10.0 x 10.0 ±0.05 | ±1.1 | 300.00 ±0.25 | |
| 10 x 10mm, 500μm Pitch, 1.3° Div., Cyl. Microlens Array UV-VIS | 72-601 | 11.10 | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 10.0 x 10.0 ±0.05 | ±1.3 | 500.00 ±0.25 | |
| 10 x 10mm, 500μm Pitch, 2.2° Div., Cyl. Microlens Array, UV-VIS | 72-602 | 6.60 | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 10.0 x 10.0 ±0.05 | ±2.2 | 500.00 ±0.25 | |
| 10 x 10mm, 500μm Pitch, 3.2° Div., Cyl. Microlens Array UV-VIS | 72-604 | 4.50 | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 10.0 x 10.0 ±0.05 | ±3.2 | 500.00 ±0.25 | |
| 10 x 10mm, 300μm Pitch, 10.1° Div., Cyl. Microlens Array UV-VIS | 72-600 | 0.80 | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 10.0 x 10.0 ±0.05 | ±10.1 | 300.00 ±0.25 | |
| 12 x 12mm, 500µm Pitch, 2.3° Div., Cyl. Microlens Array UV-VIS | 72-603 | 12.20 @ 1064nm | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 12.0 x 12.0 ±0.10 | 2.3 (Full Width) | 500.00 | |
| 12 x 12mm, 500µm Pitch, 3.7° Div., Cyl. Microlens Array UV-VIS | 72-605 | 7.78 @ 1064nm | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 12.0 x 12.0 ±0.10 | 3.7 (Full Width) | 500.00 | |
| 12 x 12mm, 500µm Pitch, 6° Div., Double Cyl. Lens Array UV-VIS | 72-607 | 4.78 @ 1064nm | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 12.0 x 12.0 ±0.10 | 6.0 (Full Width) | 500.00 | |
| 20 x 20mm, 800µm Pitch, 1.7° Div., Double Cyl. Lens Array UV-VIS | 72-606 | 24.70 @ 1064nm | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 20.0 x 20.0 ±0.10 | 1.7 (Full Width) | 800.00 | |
| 20 x 20mm, 800µm Pitch, 0.3° Div., Cyl. Microlens Array UV-VIS | 72-608 | 173.50 @ 1064nm | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 20.0 x 20.0 ±0.10 | 0.3 (Full Width) | 800.00 | |
| 20 x 20mm, 800µm Pitch, 1.9° Div., Cyl. Microlens Array UV-VIS | 72-609 | 24.70 @ 1064nm | Fused Silica (Corning 7980) | UV-NIR (250-700nm) | Lens Array | 250 - 700 | Rabs ≤1.0% from 350 - 450nm @ 0° AOI Ravg ≤1.5% @ 250 - 700nm @ 0° | 20.0 x 20.0 ±0.10 | 1.9 (Full Width) | 800.00 |
