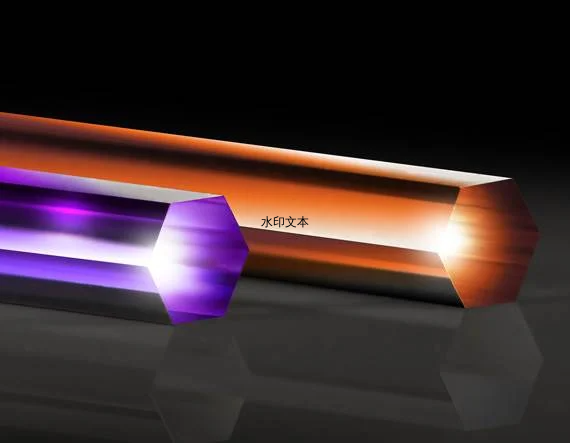

熔融石英均匀化柱状导光管
￥ 0.00
0.00
均匀化柱状导光管采用内部全反射原理，将非均匀光源换成均匀光源，无论其光谱特性如何。与方形结构的导光管相比，六角结构导光管可使光损失降低35%。数值孔径 (NA) 值小的光源需要较长的光管来使光线均匀化，而数值孔径值大的光源，则使用较短的光管即可以满足要求。TECHSPEC® 熔融石英均匀化柱状导光管采用UV熔融石英制作而成，适合用于UV LED 照明光源。
UV透射良好
六面孔径，提高光通量
适合用于非均匀光源
另外也备有额外的均匀化柱状导光管
产品

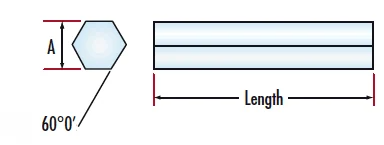

| 标题 | 产品编码 | CA (mm) | 涂层 | 基底 | 长度 (mm) | 表面质量 | 类型 | 进出孔径 (mm) | 平行度（弧分） | 长度容差 (mm) |
| 熔融石英导光管，2mm孔径x25mm长度，高NA值 | 63-092 | 1.25 | Uncoated | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.3 |
| 2mm Aperture x 25mm L, UV-VIS Coated, High NA, Fused Silica Light Pipe | 26-548 | 1.25 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.3 |
| 2mm Aperture x 25mm L, VIS-NIR Coated, High NA, Fused Silica Light Pipe | 23-490 | 1.25 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.3 |
| 2mm Aperture x 25mm L, VIS-EXT Coated, High NA, Fused Silica Light Pipe | 70-714 | 1.25 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.20 |
| 2mm孔径 x 50mm长度，标准数值孔径，熔融石英导光管 | 65-828 | 1.25 | Uncoated | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.3 |
| 2mm Aperture x 50mm L, UV-VIS Coated, Standard NA, Fused Silica Light Pipe | 26-549 | 1.25 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.3 |
| 2mm Aperture x 50mm L, VIS-NIR Coated, Standard NA, Fused Silica Light Pipe | 23-491 | 1.25 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.3 |
| 2mm Aperture x 50mm L, VIS-EXT Coated, Standard NA, Fused Silica Light Pipe | 70-715 | 1.25 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.25 |
| 2mm孔径 x 75mm长度，低数值孔径，熔融石英导光管 | 65-829 | 1.25 | Uncoated | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.3 |
| 2mm Aperture x 75mm L, UV-VIS Coated, Low NA, Fused Silica Light Pipe | 26-550 | 1.25 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.3 |
| 2mm Aperture x 75mm L, VIS-NIR Coated, Low NA, Fused Silica Light Pipe | 23-492 | 1.25 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.3 |
| 2mm Aperture x 75mm L, VIS-EXT Coated, Low NA, Fused Silica Light Pipe | 70-716 | 1.25 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 2.00 | 5.00 | ±0.25 |
| 3mm Aperture x 25mm L High NA, Fused Silica Light Pipe | 23-666 | 2.4 | Uncoated | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.3 |
| 3mm Aperture x 25mm L, UV-VIS Coated, High NA, Fused Silica Light Pipe | 26-551 | 2.4 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.3 |
| 3mm Aperture x 25mm L, VIS-NIR Coated, High NA, Fused Silica Light Pipe | 26-545 | 2.4 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.3 |
| 3mm Aperture x 25mm L, VIS-EXT Coated, High NA, Fused Silica Light Pipe | 70-717 | 2.4 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.20 |
| 3mm Aperture x 50mm L Standard NA, Fused Silica Light Pipe | 23-667 | 2.4 | Uncoated | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.3 |
| 3mm Aperture x 50mm L, UV-VIS Coated, Standard NA, Fused Silica Light Pipe | 26-552 | 2.4 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.3 |
| 3mm Aperture x 50mm L, VIS-NIR Coated, Standard NA, Fused Silica Light Pipe | 26-546 | 2.4 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.3 |
| 3mm Aperture x 50mm L, VIS-EXT Coated, Standard NA, Fused Silica Light Pipe | 70-718 | 2.4 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.20 |
| 3mm Aperture x 100mm L Low NA, Fused Silica Light Pipe | 23-668 | 2.4 | Uncoated | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.3 |
| 3mm Aperture x 100mm L, UV-VIS Coated, Low NA, Fused Silica Light Pipe | 26-553 | 2.4 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.3 |
| 3mm Aperture x 100mm L, VIS-NIR Coated, Low NA, Fused Silica Light Pipe | 26-547 | 2.4 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.3 |
| 3mm Aperture x 100mm L, VIS-EXT Coated, Low NA, Fused Silica Light Pipe | 70-719 | 2.4 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 3.00 | 5.00 | ±0.20 |
| 4mm孔径 x 25mm长度，高数值孔径，熔融石英导光管 | 65-830 | 3.25 | Uncoated | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.3 |
| 4mm Aperture x 25mm L, UV-VIS Coated, High NA, Fused Silica Light Pipe | 26-554 | 3.25 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.3 |
| 4mm Aperture x 25mm L, VIS-NIR Coated, High NA, Fused Silica Light Pipe | 23-493 | 3.25 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.3 |
| 4mm Aperture x 25mm L, VIS-EXT Coated, High NA, Fused Silica Light Pipe | 70-720 | 3.25 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 25.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.20 |
| 熔融石英导光管，4mm孔径x50mm长度，标准NA值 | 63-093 | 3.25 | Uncoated | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.3 |
| 4mm Aperture x 50mm L, UV-VIS Coated, Standard NA, Fused Silica Light Pipe | 26-555 | 3.25 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.3 |
| 4mm Aperture x 50mm L, VIS-NIR Coated, Standard NA, Fused Silica Light Pipe | 23-494 | 3.25 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.3 |
| 4mm Aperture x 50mm L, VIS-EXT Coated, Standard NA, Fused Silica Light Pipe | 70-721 | 3.25 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.25 |
| 4mm孔径 x 100mm长度，低数值孔径，熔融石英导光管 | 65-831 | 3.25 | Uncoated | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.3 |
| 4mm Aperture x 100mm L, UV-VIS Coated, Low NA, Fused Silica Light Pipe | 26-556 | 3.25 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.3 |
| 4mm Aperture x 100mm L, VIS-NIR Coated, Low NA, Fused Silica Light Pipe | 23-495 | 3.25 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.3 |
| 4mm Aperture x 100mm L, VIS-EXT Coated, Low NA, Fused Silica Light Pipe | 70-722 | 3.25 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 4.00 | 5.00 | ±0.30 |
| 5mm孔径 x 30mm长度，高数值孔径，熔融石英导光管 | 65-832 | 4 | Uncoated | Fused Silica (Corning 7980) | 30.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.3 |
| 5mm Aperture x 30mm L, UV-VIS Coated, High NA, Fused Silica Light Pipe | 26-557 | 4 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 30.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.3 |
| 5mm Aperture x 30mm L, VIS-NIR Coated, High NA, Fused Silica Light Pipe | 23-496 | 4 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 30.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.3 |
| 5mm Aperture x 30mm L, VIS-EXT Coated, High NA, Fused Silica Light Pipe | 70-723 | 4 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 30.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.20 |
| 熔融石英导光管，5mm孔径x60mm长度，标准NA值 | 63-094 | 4 | Uncoated | Fused Silica (Corning 7980) | 60.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.3 |
| 5mm Aperture x 60mm L, UV-VIS Coated, Standard NA, Fused Silica Light Pipe | 26-558 | 4 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 60.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.3 |
| 5mm Aperture x 60mm L, VIS-NIR Coated, Standard NA, Fused Silica Light Pipe | 23-497 | 4 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 60.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.3 |
| 5mm Aperture x 60mm L, VIS-EXT Coated, Standard NA, Fused Silica Light Pipe | 70-724 | 4 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 60.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.25 |
| 5mm孔径 x 120mm长度，低数值孔径，熔融石英导光管 | 65-833 | 4 | Uncoated | Fused Silica (Corning 7980) | 120.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.3 |
| 5mm Aperture x 120mm L, UV-VIS Coated, Low NA, Fused Silica Light Pipe | 26-559 | 4 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 120.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.3 |
| 5mm Aperture x 120mm L, VIS-NIR Coated, Low NA, Fused Silica Light Pipe | 23-498 | 4 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 120.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.3 |
| 5mm Aperture x 120mm L, VIS-EXT Coated, Low NA, Fused Silica Light Pipe | 70-725 | 4 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 120.00 | 60-40 | Light Pipe | 5.00 | 5.00 | ±0.30 |
| 6mm孔径 x 50mm长度，高数值孔径，熔融石英导光管 | 65-834 | 5 | Uncoated | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.3 |
| 6mm Aperture x 50mm L, UV-VIS Coated, High NA, Fused Silica Light Pipe | 26-560 | 5 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.3 |
| 6mm Aperture x 50mm L, VIS-NIR Coated, High NA, Fused Silica Light Pipe | 23-499 | 5 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.3 |
| 6mm Aperture x 50mm L, VIS-EXT Coated, High NA, Fused Silica Light Pipe | 70-726 | 5 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.25 |
| 熔融石英导光管，6mm孔径x75mm长度，标准NA值 | 63-095 | 5 | Uncoated | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.3 |
| 6mm Aperture x 75mm L, UV-VIS Coated, Standard NA, Fused Silica Light Pipe | 26-561 | 5 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.3 |
| 6mm Aperture x 75mm L, VIS-NIR Coated, Standard NA, Fused Silica Light Pipe | 23-500 | 5 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.3 |
| 6mm Aperture x 75mm L, VIS-EXT Coated, Standard NA, Fused Silica Light Pipe | 70-727 | 5 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.25 |
| 6mm孔径 x 150mm长度，低数值孔径，熔融石英导光管 | 65-835 | 5 | Uncoated | Fused Silica (Corning 7980) | 150.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.3 |
| 6mm Aperture x 150mm L, UV-VIS Coated, Low NA, Fused Silica Light Pipe | 26-562 | 5 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 150.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.3 |
| 6mm Aperture x 150mm L, VIS-NIR Coated, Low NA, Fused Silica Light Pipe | 23-501 | 5 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 150.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.3 |
| 6mm Aperture x 150mm L, VIS-EXT Coated, Low NA, Fused Silica Light Pipe | 70-728 | 5 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 150.00 | 60-40 | Light Pipe | 6.00 | 5.00 | ±0.30 |
| 8mm孔径 x 50mm长度，高数值孔径，熔融石英导光管 | 65-836 | 7 | Uncoated | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.3 |
| 8mm Aperture x 50mm L, UV-VIS Coated, High NA, Fused Silica Light Pipe | 26-563 | 7 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.3 |
| 8mm Aperture x 50mm L, VIS-NIR Coated, High NA, Fused Silica Light Pipe | 23-502 | 7 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.3 |
| 8mm Aperture x 50mm L, VIS-EXT Coated, High NA, Fused Silica Light Pipe | 70-729 | 7 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 50.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.25 |
| 熔融石英导光管，8mm孔径x100mm长度，标准NA值 | 63-096 | 7 | Uncoated | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.3 |
| 8mm Aperture x 100mm L, UV-VIS Coated, Standard NA, Fused Silica Light Pipe | 26-564 | 7 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.3 |
| 8mm Aperture x 100mm L, VIS-NIR Coated, Standard NA, Fused Silica Light Pipe | 23-503 | 7 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.3 |
| 8mm Aperture x 100mm L, VIS-EXT Coated, Standard NA, Fused Silica Light Pipe | 70-730 | 7 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 100.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.30 |
| 8mm孔径 x 150mm长度，低数值孔径，熔融石英导光管 | 65-837 | 7 | Uncoated | Fused Silica (Corning 7980) | 150.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.3 |
| 8mm Aperture x 150mm L, UV-VIS Coated, Low NA, Fused Silica Light Pipe | 26-565 | 7 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 150.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.3 |
| 8mm Aperture x 150mm L, VIS-NIR Coated, Low NA, Fused Silica Light Pipe | 23-504 | 7 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 150.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.3 |
| 8mm Aperture x 150mm L, VIS-EXT Coated, Low NA, Fused Silica Light Pipe | 70-731 | 7 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 150.00 | 60-40 | Light Pipe | 8.00 | 5.00 | ±0.30 |
| 10mm孔径 x 75mm长度，高数值孔径，熔融石英导光管 | 65-838 | 9 | Uncoated | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.3 |
| 10mm Aperture x 75mm L, UV-VIS Coated, High NA, Fused Silica Light Pipe | 26-566 | 9 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.3 |
| 10mm Aperture x 75mm L, VIS-NIR Coated, High NA, Fused Silica Light Pipe | 23-505 | 9 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.3 |
| 10mm Aperture x 75mm L, VIS-EXT Coated, High NA, Fused Silica Light Pipe | 70-732 | 9 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 75.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.25 |
| 熔融石英导光管，10mm孔径x125mm长度，标准NA值 | 63-097 | 9 | Uncoated | Fused Silica (Corning 7980) | 125.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.3 |
| 10mm Aperture x 125mm L, UV-VIS Coated, Standard NA, Fused Silica Light Pipe | 26-567 | 9 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 125.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.3 |
| 10mm Aperture x 125mm L, VIS-NIR Coated, Standard NA, Fused Silica Light Pipe | 23-506 | 9 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 125.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.3 |
| 10mm Aperture x 125mm L, VIS-EXT Coated, Standard NA, Fused Silica Light Pipe | 70-733 | 9 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 125.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.30 |
| 10mm孔径 x 175mm长度，低数值孔径，熔融石英导光管 | 65-839 | 9 | Uncoated | Fused Silica (Corning 7980) | 175.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.3 |
| 10mm Aperture x 175mm L, UV-VIS Coated, Low NA, Fused Silica Light Pipe | 26-568 | 9 | UV-VIS (250-700nm) | Fused Silica (Corning 7980) | 175.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.3 |
| 10mm Aperture x 175mm L, VIS-NIR Coated, Low NA, Fused Silica Light Pipe | 23-507 | 9 | VIS-NIR (400-1000nm) | Fused Silica (Corning 7980) | 175.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.3 |
| 10mm Aperture x 175mm L, VIS-EXT Coated, Low NA, Fused Silica Light Pipe | 70-734 | 9 | VIS-EXT (350-700nm) | Fused Silica (Corning 7980) | 175.00 | 60-40 | Light Pipe | 10.00 | 5.00 | ±0.30 |
| 12.5mm Aperture x 75mm L Low NA, Fused Silica Light Pipe | 70-759 | 11.25 | Uncoated | Fused Silica | 75.00 | 60-40 | Light Pipe | 12.50 | 5.00 | ±0.3 |
| 20mm Aperture x 125mm L Low NA, Fused Silica Light Pipe | 70-762 | 18 | Uncoated | Fused Silica | 125.00 | 60-40 | Light Pipe | 20.00 | 5.00 | ±0.3 |
产品概览
备有N-NK7均匀化柱状导光管。备有TECHSPEC® 均匀化柱状导光管接口，设计用于固定标准和熔融石英系列的均匀化柱状导光管；这些接口大大简化了组件的处理和整合操作。
