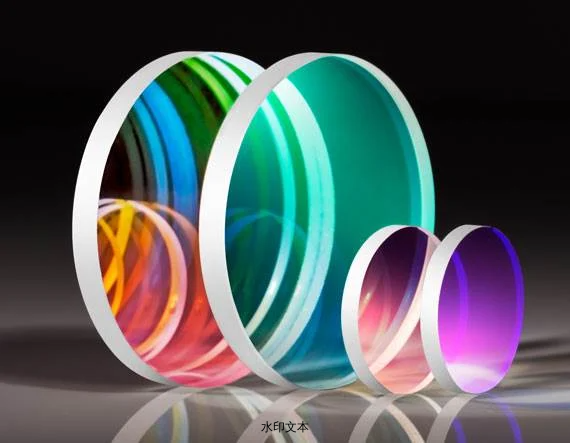

高性能OD 4.0 短波通滤光片
￥ 0.00
0.00
高性能OD 4.0短波通滤光片设计具有在阻带内卓越的阻隔性能，同时在通带内最大化透射率。它们在阻带内的光衰密度为4.0，并且通带内的透射率≥91%这使得这些滤光片成为广泛应用的理想选择。高性能OD 4.0短波通滤光片可以与我们的 TECHSPEC® OD 4.0 长波通滤光片 配合使用，以创建定制通带的精密带通滤光片。可见光短波通滤光片套装包含7款介于400-700nm之间的滤光片，两者均非常适合与我们的滤光片转轮集成使用。
透射和抑制范围广
通带边缘有陡峭的斜坡曲线，实现有效的光谱区分
与长波通滤光片结合使用，定制带通范围
产品
| 标题 | 产品编码 | Dia. (mm) | AOI (°) | 光密度 OD（平均） | 截止波长 (nm) | 基底 | 涂层 | 截止波长 (nm)2 | 表面质量 | 厚度 (mm) | 厚度容差 (mm) | 透射率 (%) |
| 400nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-689 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 400.00 | Fused Silica (Corning 7980) | Hard Coated | 410 - 610 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 400nm 25mm直径，光密度4.0，短波通滤光片 | 84-702 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 400.00 | Fused Silica (Corning 7980) | Hard Coated | 410 - 610 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 400nm 50mm直径，光密度4.0，短波通滤光片 | 84-715 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 400.00 | Fused Silica (Corning 7980) | Hard Coated | 410 - 610 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 425nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-690 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 425.00 | Fused Silica (Corning 7980) | Hard Coated | 435 - 635 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 425nm 25mm直径，光密度4.0，短波通滤光片 | 84-703 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 425.00 | Fused Silica (Corning 7980) | Hard Coated | 435 - 635 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 425nm 50mm直径，光密度4.0，短波通滤光片 | 84-716 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 425.00 | Fused Silica (Corning 7980) | Hard Coated | 435 - 635 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 450nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-691 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 450.00 | Fused Silica (Corning 7980) | Hard Coated | 460 - 660 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 450nm 25mm直径，光密度4.0，短波通滤光片 | 84-704 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 450.00 | Fused Silica (Corning 7980) | Hard Coated | 460 - 660 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 450nm 50mm直径，光密度4.0，短波通滤光片 | 84-717 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 450.00 | Fused Silica (Corning 7980) | Hard Coated | 460 - 660 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 475nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-692 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 475.00 | Fused Silica (Corning 7980) | Hard Coated | 485 - 685 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 475nm 25mm直径，光密度4.0，短波通滤光片 | 84-705 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 475.00 | Fused Silica (Corning 7980) | Hard Coated | 485 - 685 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 475nm 50mm直径，光密度4.0，短波通滤光片 | 84-718 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 475.00 | Fused Silica (Corning 7980) | Hard Coated | 485 - 685 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 500nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-693 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 500.00 | Fused Silica (Corning 7980) | Hard Coated | 512 - 715 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 500nm 25mm直径，光密度4.0，短波通滤光片 | 84-706 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 500.00 | Fused Silica (Corning 7980) | Hard Coated | 512 - 715 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 500nm 50mm直径，光密度4.0，短波通滤光片 | 84-719 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 500.00 | Fused Silica (Corning 7980) | Hard Coated | 512 - 715 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 525nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-694 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 525.00 | Fused Silica (Corning 7980) | Hard Coated | 537 - 740 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 525nm 25mm直径，光密度4.0，短波通滤光片 | 84-707 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 525.00 | Fused Silica (Corning 7980) | Hard Coated | 537 - 740 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 525nm 50mm直径，光密度4.0，短波通滤光片 | 84-720 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 525.00 | Fused Silica (Corning 7980) | Hard Coated | 537 - 740 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 550nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-695 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 550.00 | Fused Silica (Corning 7980) | Hard Coated | 562 - 825 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 550nm 25mm直径，光密度4.0，短波通滤光片 | 84-708 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 550.00 | Fused Silica (Corning 7980) | Hard Coated | 562 - 825 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 550nm 50mm直径，光密度4.0，短波通滤光片 | 84-721 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 550.00 | Fused Silica (Corning 7980) | Hard Coated | 562 - 825 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 575nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-696 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 575.00 | Fused Silica (Corning 7980) | Hard Coated | 587 - 850 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 575nm 25mm直径，光密度4.0，短波通滤光片 | 84-709 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 575.00 | Fused Silica (Corning 7980) | Hard Coated | 587 - 850 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 575nm 50mm直径，光密度4.0，短波通滤光片 | 84-722 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 575.00 | Fused Silica (Corning 7980) | Hard Coated | 587 - 850 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 600nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-697 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 600.00 | Fused Silica (Corning 7980) | Hard Coated | 614 - 900 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 600nm 25mm直径，光密度4.0，短波通滤光片 | 84-710 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 600.00 | Fused Silica (Corning 7980) | Hard Coated | 614 - 900 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 600nm 50mm直径，光密度4.0，短波通滤光片 | 84-723 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 600.00 | Fused Silica (Corning 7980) | Hard Coated | 614 - 900 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 625nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-698 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 625.00 | Fused Silica (Corning 7980) | Hard Coated | 639 - 925 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 625nm 25mm直径，光密度4.0，短波通滤光片 | 84-711 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 625.00 | Fused Silica (Corning 7980) | Hard Coated | 639 - 925 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 625nm 50mm直径，光密度4.0，短波通滤光片 | 84-724 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 625.00 | Fused Silica (Corning 7980) | Hard Coated | 639 - 925 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 650nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-699 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 650.00 | Fused Silica (Corning 7980) | Hard Coated | 665 - 960 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 650nm 25mm直径，光密度4.0，短波通滤光片 | 84-712 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 650.00 | Fused Silica (Corning 7980) | Hard Coated | 665 - 960 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 650nm 50mm直径，光密度4.0，短波通滤光片 | 84-725 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 650.00 | Fused Silica (Corning 7980) | Hard Coated | 665 - 960 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 675nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-700 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 675.00 | Fused Silica (Corning 7980) | Hard Coated | 690 - 1000 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 675nm 25mm直径，光密度4.0，短波通滤光片 | 84-713 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 675.00 | Fused Silica (Corning 7980) | Hard Coated | 690 - 1000 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 675nm 50mm直径，光密度4.0，短波通滤光片 | 84-726 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 675.00 | Fused Silica (Corning 7980) | Hard Coated | 690 - 1000 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 700nm 12.5mm直径，光密度4.0，短波通滤光片 | 84-701 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 700.00 | Fused Silica (Corning 7980) | Hard Coated | 715 - 1050 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 700nm 25mm直径，光密度4.0，短波通滤光片 | 84-714 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 700.00 | Fused Silica (Corning 7980) | Hard Coated | 715 - 1050 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 700nm 50mm直径，光密度4.0，短波通滤光片 | 84-727 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 700.00 | Fused Silica (Corning 7980) | Hard Coated | 715 - 1050 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 725nm 12.5mm直径，光密度4.0，短波通滤光片 | 86-095 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 725.00 | Fused Silica (Corning 7980) | Hard Coated | 740 - 1090 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 725nm 25mm直径，光密度4.0，短波通滤光片 | 86-103 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 725.00 | Fused Silica (Corning 7980) | Hard Coated | 740 - 1090 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 725nm 50mm直径，光密度4.0，短波通滤光片 | 86-111 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 725.00 | Fused Silica (Corning 7980) | Hard Coated | 740 - 1090 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 750纳米短波通滤光片，Φ12.5毫米，OD值为4.0 | 64-324 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 750.00 | Fused Silica (Corning 7980) | Hard Coated | 775 - 1125 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 750纳米短波通滤光片，Φ25毫米，OD值为4.0 | 64-332 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 750.00 | Fused Silica (Corning 7980) | Hard Coated | 775 - 1125 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 750nm 50mm直径，光密度4.0，短波通滤光片 | 84-728 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 750.00 | Fused Silica (Corning 7980) | Hard Coated | 775 - 1125 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 775nm 12.5mm直径，光密度4.0，短波通滤光片 | 86-096 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 775.00 | Fused Silica (Corning 7980) | Hard Coated | 795 - 1155 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 775nm 25mm直径，光密度4.0，短波通滤光片 | 86-104 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 775.00 | Fused Silica (Corning 7980) | Hard Coated | 795 - 1155 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 775nm 50mm直径，光密度4.0，短波通滤光片 | 86-112 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 775.00 | Fused Silica (Corning 7980) | Hard Coated | 795 - 1155 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 800纳米短波通滤光片，Φ12.5毫米，OD值为4.0 | 64-325 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 800.00 | Fused Silica (Corning 7980) | Hard Coated | 825 - 1190 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 800纳米短波通滤光片，Φ25毫米，OD值为4.0 | 64-333 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 800.00 | Fused Silica (Corning 7980) | Hard Coated | 825 - 1190 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 800nm 50mm直径，光密度4.0，短波通滤光片 | 84-729 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 800.00 | Fused Silica (Corning 7980) | Hard Coated | 825 - 1190 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 825nm 12.5mm直径，光密度4.0，短波通滤光片 | 86-097 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 825.00 | Fused Silica (Corning 7980) | Hard Coated | 850 - 1190 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 825nm 25mm直径，光密度4.0，短波通滤光片 | 86-105 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 825.00 | Fused Silica (Corning 7980) | Hard Coated | 850 - 1190 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 825nm 50mm直径，光密度4.0，短波通滤光片 | 86-113 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 825.00 | Fused Silica (Corning 7980) | Hard Coated | 850 - 1190 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 850纳米短波通滤光片，Φ12.5毫米，OD值为4.0 | 64-326 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 850.00 | Fused Silica (Corning 7980) | Hard Coated | 880 - 1190 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 850纳米短波通滤光片，Φ25毫米，OD值为4.0 | 64-334 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 850.00 | Fused Silica (Corning 7980) | Hard Coated | 880 - 1190 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 850nm 50mm直径，光密度4.0，短波通滤光片 | 84-730 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 850.00 | Fused Silica (Corning 7980) | Hard Coated | 880 - 1190 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 875nm 12.5mm直径，光密度4.0，短波通滤光片 | 86-098 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 875.00 | Fused Silica (Corning 7980) | Hard Coated | 905 - 1220 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 875nm 25mm直径，光密度4.0，短波通滤光片 | 86-106 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 875.00 | Fused Silica (Corning 7980) | Hard Coated | 905 - 1220 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 875nm 50mm直径，光密度4.0，短波通滤光片 | 86-114 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 875.00 | Fused Silica (Corning 7980) | Hard Coated | 905 - 1220 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 900纳米短波通滤光片，Φ12.5毫米，OD值为4.0 | 64-327 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 900.00 | Fused Silica (Corning 7980) | Hard Coated | 930 - 1250 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 900纳米短波通滤光片，Φ25毫米，OD值为4.0 | 64-335 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 900.00 | Fused Silica (Corning 7980) | Hard Coated | 930 - 1250 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 900nm 50mm直径，光密度4.0，短波通滤光片 | 84-731 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 900.00 | Fused Silica (Corning 7980) | Hard Coated | 930 - 1250 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 925nm 12.5mm直径，光密度4.0，短波通滤光片 | 86-099 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 925.00 | Fused Silica (Corning 7980) | Hard Coated | 955 - 1290 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 925nm 25mm直径，光密度4.0，短波通滤光片 | 86-107 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 925.00 | Fused Silica (Corning 7980) | Hard Coated | 955 - 1290 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 925nm 50mm直径，光密度4.0，短波通滤光片 | 86-115 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 925.00 | Fused Silica (Corning 7980) | Hard Coated | 955 - 1290 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 950纳米短波通滤光片，Φ12.5毫米，OD值为4.0 | 64-328 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 950.00 | Fused Silica (Corning 7980) | Hard Coated | 980 - 1325 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 950纳米短波通滤光片，Φ25毫米，OD值为4.0 | 64-336 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 950.00 | Fused Silica (Corning 7980) | Hard Coated | 980 - 1325 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 950nm 50mm直径，光密度4.0，短波通滤光片 | 84-732 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 950.00 | Fused Silica (Corning 7980) | Hard Coated | 980 - 1325 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 975nm 12.5mm直径，光密度4.0，短波通滤光片 | 86-100 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 975.00 | Fused Silica (Corning 7980) | Hard Coated | 1005 - 1365 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 975nm 25mm直径，光密度4.0，短波通滤光片 | 86-108 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 975.00 | Fused Silica (Corning 7980) | Hard Coated | 1005 - 1365 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 975nm 50mm直径，光密度4.0，短波通滤光片 | 86-116 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 975.00 | Fused Silica (Corning 7980) | Hard Coated | 1005 - 1365 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 1000纳米短波通滤光片，Φ12.5毫米，OD值为4.0 | 64-329 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 1,000.00 | Fused Silica (Corning 7980) | Hard Coated | 1035 - 1400 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 1000纳米短波通滤光片，Φ25毫米，OD值为4.0 | 64-337 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 1,000.00 | Fused Silica (Corning 7980) | Hard Coated | 1035 - 1400 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 1000nm 50mm直径，光密度4.0，短波通滤光片 | 84-733 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 1,000.00 | Fused Silica (Corning 7980) | Hard Coated | 1035 - 1400 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 1025nm 12.5mm直径，光密度4.0，短波通滤光片 | 86-101 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 1,025.00 | Fused Silica (Corning 7980) | Hard Coated | 1060 - 1430 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 1025nm 25mm直径，光密度4.0，短波通滤光片 | 86-109 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 1,025.00 | Fused Silica (Corning 7980) | Hard Coated | 1060 - 1430 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 1025nm 50mm直径，光密度4.0，短波通滤光片 | 86-117 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 1,025.00 | Fused Silica (Corning 7980) | Hard Coated | 1060 - 1430 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 1050纳米短波通滤光片，Φ12.5毫米，OD值为4.0 | 64-330 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 1,050.00 | Fused Silica (Corning 7980) | Hard Coated | 1085 - 1460 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 1050纳米短波通滤光片，Φ25毫米，OD值为4.0 | 64-338 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 1,050.00 | Fused Silica (Corning 7980) | Hard Coated | 1085 - 1460 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 1050nm 50mm直径，光密度4.0，短波通滤光片 | 84-734 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 1,050.00 | Fused Silica (Corning 7980) | Hard Coated | 1085 - 1460 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 1075nm 12.5mm直径，光密度4.0，短波通滤光片 | 86-102 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 1,075.00 | Fused Silica (Corning 7980) | Hard Coated | 1110 - 1495 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 1075nm 25mm直径，光密度4.0，短波通滤光片 | 86-110 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 1,075.00 | Fused Silica (Corning 7980) | Hard Coated | 1110 - 1495 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 1075nm 50mm直径，光密度4.0，短波通滤光片 | 86-118 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 1,075.00 | Fused Silica (Corning 7980) | Hard Coated | 1110 - 1495 | 60-40 | 5.00 | ±0.1 | ≥91 |
| 1100纳米短波通滤光片，Φ12.5毫米，OD值为4.0 | 64-331 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 1,100.00 | Fused Silica (Corning 7980) | Hard Coated | 1140 - 1530 | 60-40 | 1.50 | ±0.1 | ≥91 |
| 1100纳米短波通滤光片，Φ25毫米，OD值为4.0 | 64-339 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 1,100.00 | Fused Silica (Corning 7980) | Hard Coated | 1140 - 1530 | 60-40 | 3.00 | ±0.1 | ≥91 |
| 1100nm 50mm直径，光密度4.0，短波通滤光片 | 84-735 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 1,100.00 | Fused Silica (Corning 7980) | Hard Coated | 1140 - 1530 | 60-40 | 5.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1150NM 12.5MM 3MM TH | 89-669 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 1,150.00 | Fused Silica (Corning 7980) | Hard Coated | 1190 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1150NM 25.0MM 3MM TH | 89-573 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 1,150.00 | Fused Silica (Corning 7980) | Hard Coated | 1190 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1150NM 50.0MM 3MM TH | 89-677 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 1,150.00 | Fused Silica (Corning 7980) | Hard Coated | 1190 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1200NM 12.5MM 3MM TH | 89-670 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 1,200.00 | Fused Silica (Corning 7980) | Hard Coated | 1240 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1200NM 25.0MM 3MM TH | 89-674 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 1,200.00 | Fused Silica (Corning 7980) | Hard Coated | 1240 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1200NM 50.0MM 3MM TH | 89-678 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 1,200.00 | Fused Silica (Corning 7980) | Hard Coated | 1240 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1250NM 12.5MM 3MM TH | 89-671 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 1,250.00 | Fused Silica (Corning 7980) | Hard Coated | 1290 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1250NM 25.0MM 3MM TH | 89-675 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 1,250.00 | Fused Silica (Corning 7980) | Hard Coated | 1290 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1250NM 50.0MM 3MM TH | 89-679 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 1,250.00 | Fused Silica (Corning 7980) | Hard Coated | 1290 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1300NM 12.5MM 3MM TH | 89-672 | 12.50 +0.0/-0.2 | 0 | ≥4.0 | 1,300.00 | Fused Silica (Corning 7980) | Hard Coated | 1340 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1300NM 25.0MM 3MM TH | 89-676 | 25.00 +0.0/-0.2 | 0 | ≥4.0 | 1,300.00 | Fused Silica (Corning 7980) | Hard Coated | 1340 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
| PRECISION SHORTPASS 1300NM 50.0MM 3MM TH | 89-680 | 50.00 +0.0/-0.2 | 0 | ≥4.0 | 1,300.00 | Fused Silica (Corning 7980) | Hard Coated | 1340 - 1650 | 60-40 | 3.00 | ±0.1 | ≥91 |
技术数据
