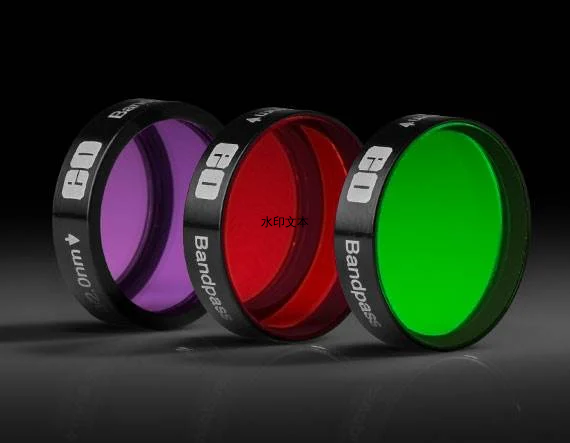

超窄传统镀膜带通滤光片

超窄传统镀膜带通滤光片

￥ 0.00
0.00


超窄带通滤波片特别适合用做严苛的医疗和激光应用中的激光线、激光净化或激光激发滤光片。这些滤光片通过设计提供 OD 4 截止，中心波长公差严格到 0.05nm，带宽从 0.2nm 到 5.0nm。有多种标准波长可供选择，包括 H-α氢气、HeNe 激光和 Nd:YAG 激光谱线。可提供带宽在 0.15 和 50 nm 之间、中心波长在 340 和 2400nm 之间的滤光片快速定制服务。 请 联系我们 以获取定制报价


  • 带宽介于 0.2 - 5.0nm 之间

  • 在 200和1200nm 之间的 OD 4.0 截止

  • 可快速定制设计

  • 另有超窄加硬镀膜带通滤光片 可选


                            产品

标题产品编码Dia. (mm)AOI (°)CA (mm)CWL (nm)FWHM (nm)基底最小传输 (%)类型注意 基片厚度（mm）
532nm CWL, 0.20 FWHM, 25mm Dia. Ultra Narrow Filter21-38125.00 +0.00/-0.250 21.00 532.00 0.20 Soda Lime Glass & Filter Glass >45 Bandpass Filter Filter Design: Single-Cavity 6 +0.00/-0.25
632.8nm CWL, 0.20 FWHM, 25mm Dia. Ultra Narrow Filter21-38325.00 +0.00/-0.250 21.00 632.80 0.20 Soda Lime Glass & Filter Glass >45 Bandpass Filter Filter Design: Single-Cavity 6 +0.00/-0.25
656.3nm CWL, 0.20 FWHM, 25mm Dia. Ultra Narrow Filter21-38425.00 +0.00/-0.250 21.00 656.30 0.20 Soda Lime Glass & Filter Glass >45 Bandpass Filter Filter Design: Single-Cavity 6 +0.00/-0.25
532nm CWL, 0.50 FWHM, 25mm Dia. Ultra Narrow Filter21-38525.00 +0.00/-0.250 21.00 532.00 0.50 Soda Lime Glass & Filter Glass >45 Bandpass Filter Filter Design: Two-Cavity 6 +0.00/-0.25
632.8nm CWL, 0.50 FWHM, 25mm Dia. Ultra Narrow Filter21-38625.00 +0.00/-0.250 21.00 632.80 0.50 Soda Lime Glass & Filter Glass >45 Bandpass Filter Filter Design: Two-Cavity 6 +0.00/-0.25
656.3nm CWL, 0.50 FWHM, 25mm Dia. Ultra Narrow Filter21-38725.00 +0.00/-0.250 21.00 656.30 0.50 Soda Lime Glass & Filter Glass >45 Bandpass Filter Filter Design: Two-Cavity 6 +0.00/-0.25
532nm CWL, 1.00 FWHM, 25mm Dia. Ultra Narrow Filter21-38825.00 +0.00/-0.250 21.00 532.00 1.00 Soda Lime Glass & Filter Glass >50 Bandpass Filter Filter Design: Two-Cavity 6 +0.00/-0.25
632.8nm CWL, 1.00 FWHM, 25mm Dia. Ultra Narrow Filter21-38925.00 +0.00/-0.250 21.00 632.80 1.00 Soda Lime Glass & Filter Glass >55 Bandpass Filter Filter Design: Two-Cavity 6 +0.00/-0.25
656.3nm CWL, 1.00 FWHM, 25mm Dia. Ultra Narrow Filter21-39025.00 +0.00/-0.250 21.00 656.30 1.00 Soda Lime Glass & Filter Glass >55 Bandpass Filter Filter Design: Two-Cavity 6 +0.00/-0.25
1064nm CWL, 1.00 FWHM, 25mm Dia. Ultra Narrow Filter21-39125.00 +0.00/-0.250 21.00 1,064.00 1.00 Soda Lime Glass & Filter Glass >50 Bandpass Filter Filter Design: Two-Cavity 6 +0.00/-0.25
532nm CWL, 2.00 FWHM, 25mm Dia. Ultra Narrow Filter21-39225.00 +0.00/-0.250 21.00 532.00 2.00 Soda Lime Glass & Filter Glass >55 Bandpass Filter Filter Design: Two-Cavity 6 +0.00/-0.25
632.8nm CWL, 2.00 FWHM, 25mm Dia. Ultra Narrow Filter21-39325.00 +0.00/-0.250 21.00 632.80 2.00 Soda Lime Glass & Filter Glass >55 Bandpass Filter Filter Design: Two-Cavity 6 +0.00/-0.25
656.3nm CWL, 2.00 FWHM, 25mm Dia. Ultra Narrow Filter21-39425.00 +0.00/-0.250 21.00 656.30 2.00 Soda Lime Glass & Filter Glass >55 Bandpass Filter Filter Design: Two-Cavity 6 +0.00/-0.25
1064nm CWL, 2.00 FWHM, 25mm Dia.Ultra Narrow Filter21-39525.00 +0.00/-0.250 21.00 1,064.00 2.00 Soda Lime Glass & Filter Glass >55 Bandpass Filter Filter Design: Two-Cavity 6 +0.00/-0.25
