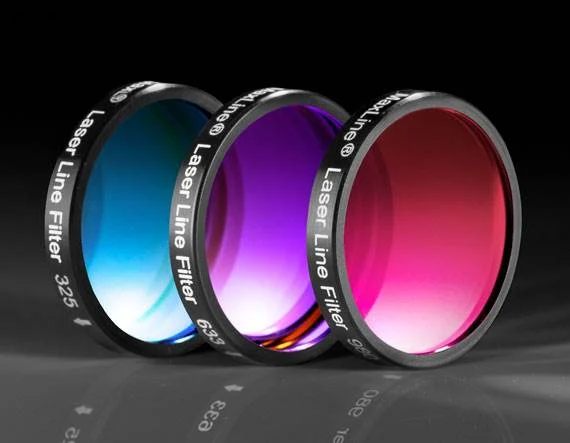

高性能激光线带通滤光片
￥ 0.00
0.00
高性能激光线带通滤光片能与常见的气态和固态激光器搭配使用，旨在针对受激辐射提供最大的透射率，同时消除嘈杂的自发辐射。这些激光线滤光片可用于常用的二极管和 Nd:YAG 激光线（包括 532nm、785nm 和 1064nm）。高性能激光线带通滤光片非常适用于基于激光的荧光仪器、拉曼光谱或者分析或医疗激光系统。由于其边缘陡峭，因此高性能激光线带通滤光片是 TECHSPEC® 陷波滤光片和激光线长波通滤光片的出色补充。
在指定激光线处的透射率超过 90%
硬质镀膜设计
专为激光应用而设计
产品
| 标题 | 产品编码 | Dia. (mm) | AOI (°) | 带宽 (nm) | 光束偏移（弧秒） | OD 5 阻断波长范围 (nm) | OD 6 阻断波长范围 (nm) | 光密度 OD（平均） | CA (mm) | CWL (nm) | DWL (nm) | FWHM (nm) |
| 248.6nm High Performance Laser Line Filter 12.5mm Dia. | 12-258 | 12.50 +0.0/-0.1 | 0 ±2 | 1.7 | 228.2 - 246.1 & 251.1 - 279.9 | 228.7 - 244.9 & 252.3 - 273.5 | ≥6.0 | ≥10 | 248.60 | 248.6 | 1.70 - 2.2 | |
| 266nm High Performance Laser Line Filter 12.5mm Dia. | 12-259 | 12.50 +0.0/-0.1 | 0 ±2 | 1.9 | 242.8 - 263.3 & 268.7 - 302.2 | 244.7 - 262 & 270 - 292.6 | ≥6.0 | ≥10 | 266.00 | 266 | 1.90 - 2.4 | |
| 266nm High Performance Laser Line Filter 25mm Dia. | 12-275 | 25.00 +0.0/-0.1 | 0 ±2 | 1.9 | 242.8 - 263.3 & 268.7 - 302.2 | 244.7 - 262 & 270 - 292.6 | ≥6.0 | ≥22 | 266.00 | 266 | 1.90 - 2.4 | |
| LASER BP FILTER 12.5 DIA 325 CWL | 47-612 | 12.50 +0.0/-0.1 | 0 ±2 | 1.2 | <11 | 291 - 322 & 328 - 381 | 299 - 320 & 330 - 358 | ≥6.0 | ≥10 | 325.00 | 325 | 1.24 - 2.28 |
| LASER BP FILTER 25 DIA 325 CWL | 64-247 | 25.00 +0.0/-0.1 | 0 ±2 | 1.2 | <11 | 291 - 322 & 328 - 381 | 299 - 320 & 330 - 358 | ≥6.0 | ≥22 | 325.00 | 325 | 1.24 - 2.28 |
| LASER BP FILTER 12.5 DIA 355 CWL | 64-240 | 12.50 +0.0/-0.1 | 0 ±2 | 1.3 | <11 | 315 - 352 & 359 - 423 | 327 - 350 & 360 - 390 | ≥6.0 | ≥10 | 355.00 | 355 | 1.35 - 2.49 |
| LASER BP FILTER 25 DIA 355 CWL | 64-248 | 25.00 +0.0/-0.1 | 0 ±2 | 1.3 | <11 | 315 - 352 & 359 - 423 | 327 - 350 & 360 - 390 | ≥6.0 | ≥22 | 355.00 | 355 | 1.35 - 2.49 |
| 405nm High Performance Laser Line Filter 12.5mm Dia. | 12-268 | 12.50 +0.0/-0.1 | 0 ±2 | 1.5 | 353.5 - 401 & 409.1 - 495.3 | 372.6 - 398.9 & 411.1 - 445.5 | ≥6.0 | ≥10 | 405.00 | 405 | 1.50 - 2.8 | |
| 405nm High Performance Laser Line Filter 25mm Dia. | 12-276 | 25.00 +0.0/-0.1 | 0 ±2 | 1.5 | 353.5 - 401 & 409.1 - 495.3 | 372.6 - 398.9 & 411.1 - 445.5 | ≥6.0 | ≥22 | 405.00 | 405 | 1.50 - 2.8 | |
| 457.9nm High Performance Laser Line Filter 12.5mm Dia. | 12-269 | 12.50 +0.0/-0.1 | 0 ±2 | 1.7 | 393.1 - 453.3 & 462.5 - 576.7 | 421.3 - 451 & 464.8 - 503.7 | ≥6.0 | ≥10 | 457.90 | 457.9 | 1.70 - 3.2 | |
| 457.9nm High Performance Laser Line Filter 25mm Dia. | 12-277 | 25.00 +0.0/-0.1 | 0 ±2 | 1.7 | 393.1 - 453.3 & 462.5 - 576.7 | 421.3 - 451 & 464.8 - 503.7 | ≥6.0 | ≥22 | 457.90 | 457.9 | 1.70 - 3.2 | |
| LASER BP FILTER 12.5 DIA 488 CWL | 47-491 | 12.50 +0.0/-0.1 | 0 ±2 | 1.9 | <11 | 415 - 483 & 493 - 625 | 449 - 481 & 495 - 537 | ≥6.0 | ≥10 | 488.00 | 488 | 1.85 - 3.42 |
| LASER BP FILTER 25 DIA 488 CWL | 64-250 | 25.00 +0.0/-0.1 | 0 ±2 | 1.9 | <11 | 415 - 483 & 493 - 625 | 449 - 481 & 495 - 537 | ≥6.0 | ≥22 | 488.00 | 488 | 1.85 - 3.42 |
| LASER BP FILTER 12.5 DIA 514.5 CWL | 47-492 | 12.50 +0.0/-0.1 | 0 ±2 | 2.0 | <11 | 434 - 509 & 520 - 670 | 473 - 507 & 522 - 566 | ≥6.0 | ≥10 | 514.50 | 514.5 | 1.96 - 3.6 |
| LASER BP FILTER 25 DIA 514.5 CWL | 64-251 | 25.00 +0.0/-0.1 | 0 ±2 | 2.0 | <11 | 434 - 509 & 520 - 670 | 473 - 507 & 522 - 566 | ≥6.0 | ≥22 | 514.50 | 514.5 | 1.96 - 3.6 |
| LASER BP FILTER 12.5 DIA 532 CWL | 47-493 | 12.50 +0.0/-0.1 | 0 ±2 | 2.0 | <11 | 447 - 527 & 537 - 699 | 489 - 524 & 540 - 585 | ≥6.0 | ≥10 | 532.00 | 532 | 2.02 - 3.72 |
| LASER BP FILTER 25 DIA 532 CWL | 64-252 | 25.00 +0.0/-0.1 | 0 ±2 | 2.0 | <11 | 447 - 527 & 537 - 699 | 489 - 524 & 540 - 585 | ≥6.0 | ≥22 | 532.00 | 532 | 2.02 - 3.72 |
| 561nm High Performance Laser Line Filter 12.5mm Dia. | 12-271 | 12.50 +0.0/-0.1 | 0 ±2 | 2.1 | 466.7 - 555.4 & 566.6 - 750.5 | 516.1 - 552.6 & 569.4 - 617.1 | ≥6.0 | ≥10 | 561.00 | 561 | 2.10 - 3.9 | |
| 561nm High Performance Laser Line Filter 25mm Dia. | 12-279 | 25.00 +0.0/-0.1 | 0 ±2 | 2.1 | 466.7 - 555.4 & 566.6 - 750.5 | 516.1 - 552.6 & 569.4 - 617.1 | ≥6.0 | ≥22 | 561.00 | 561 | 2.10 - 3.9 | |
| LASER BP FILTER 12.5 DIA 632.8 CWL | 47-494 | 12.50 +0.0/-0.1 | 0 ±2 | 2.4 | <11 | 515 - 627 & 639 - 885 | 582 - 623 & 642 - 696 | ≥6.0 | ≥10 | 632.80 | 632.8 | 2.40 - 4.23 |
| LASER BP FILTER 25 DIA 632.8 CWL | 64-253 | 25.00 +0.0/-0.1 | 0 ±2 | 2.4 | <11 | 515 - 627 & 639 - 885 | 582 - 623 & 642 - 696 | ≥6.0 | ≥22 | 632.80 | 632.8 | 2.40 - 4.23 |
| LASER BP FILTER 12.5 DIA 647.1 CWL | 64-241 | 12.50 +0.0/-0.1 | 0 ±2 | 2.5 | <11 | 525 - 641 & 654 - 913 | 595 - 637 & 657 - 712 | ≥6.0 | ≥10 | 647.10 | 647.1 | 2.46 - 4.49 |
| LASER BP FILTER 25 DIA 647.1 CWL | 64-254 | 25.00 +0.0/-0.1 | 0 ±2 | 2.5 | <11 | 525 - 641 & 654 - 913 | 595 - 641 & 595 - 637 | ≥6.0 | ≥22 | 647.10 | 647.1 | 2.46 - 4.49 |
| LASER BP FILTER 12.5 DIA 671 CWL | 64-242 | 12.50 +0.0/-0.1 | 0 ±2 | 2.6 | <11 | 540 - 643 & 678 - 961 | 617 - 661 & 681 - 738 | ≥6.0 | ≥10 | 671.00 | 671 | 2.55 - 4.7 |
| LASER BP FILTER 25 DIA 671 CWL | 64-255 | 25.00 +0.0/-0.1 | 0 ±2 | 2.6 | <11 | 540 - 643 & 678 - 961 | 617 - 661 & 681 - 738 | ≥6.0 | ≥22 | 671.00 | 671 | 2.55 - 4.7 |
| LASER BP FILTER 12.5 DIA 780 CWL | 64-243 | 12.50 +0.0/-0.1 | 0 ±2 | 3.0 | <11 | 609 - 772 & 788 - 1202 | 718 - 768 & 792 - 858 | ≥6.0 | ≥10 | 780.00 | 780 | 2.96 - 5.46 |
| LASER BP FILTER 25 DIA 780 CWL | 64-256 | 25.00 +0.0/-0.1 | 0 ±2 | 3.0 | <11 | 609 - 772 & 788 - 1202 | 718 - 768 & 792 - 858 | ≥6.0 | ≥22 | 780.00 | 780 | 2.96 - 5.46 |
| LASER BP FILTER 12.5 DIA 785 CWL | 47-495 | 12.50 +0.0/-0.1 | 0 ±2 | 3.0 | <11 | 612 - 777 & 793 - 1214 | 722 - 773 & 797 - 864 | ≥6.0 | ≥10 | 785.00 | 785 | 2.98 - 5.5 |
| LASER BP FILTER 25 DIA 785 CWL | 64-257 | 25.00 +0.0/-0.1 | 0 ±2 | 3.0 | <11 | 612 - 777 & 793 - 1214 | 722 - 773 & 797 - 864 | ≥6.0 | ≥22 | 785.00 | 785 | 2.98 - 5.5 |
| LASER BP FILTER 12.5 DIA 808 CWL | 64-244 | 12.50 +0.0/-0.1 | 0 ±2 | 3.1 | <11 | 626 - 800 & 816 - 1270 | 743 - 796 & 820 - 889 | ≥6.0 | ≥10 | 808.00 | 808 | 3.07 - 5.66 |
| LASER BP FILTER 25 DIA 808 CWL | 64-258 | 25.00 +0.0/-0.1 | 0 ±2 | 3.1 | <11 | 626 - 800 & 816 - 1270 | 743 - 796 & 820 - 889 | ≥6.0 | ≥22 | 808.00 | 808 | 3.07 - 5.66 |
| LASER BP FILTER 12.5 DIA 830 CWL | 64-245 | 12.50 +0.0/-0.1 | 0 ±2 | 3.2 | <11 | 639 - 822 & 838 - 1325 | 764 - 818 & 843 - 913 | ≥6.0 | ≥10 | 830.00 | 830 | 3.15 - 5.81 |
| LASER BP FILTER 25 DIA 830 CWL | 64-259 | 25.00 +0.0/-0.1 | 0 ±2 | 3.2 | <11 | 639 - 822 & 838 - 1325 | 764 - 818 & 843 - 913 | ≥6.0 | ≥22 | 830.00 | 830 | 3.15 - 5.81 |
| 852nm High Performance Laser Line Filter 12.5mm Dia. | 12-272 | 12.50 +0.0/-0.1 | 0 ±2 | 3.2 | 652 - 843.5 & 860.5 - 1106.6 | 783.8 - 839.2 & 864.8 - 937.2 | ≥6.0 | ≥10 | 852.00 | 852 | 3.20 - 6.0 | |
| 852nm High Performance Laser Line Filter 25mm Dia. | 12-280 | 25.00 +0.0/-0.1 | 0 ±2 | 3.2 | 652 - 843.5 & 860.5 - 1106.6 | 783.8 - 839.2 & 864.8 - 937.2 | ≥6.0 | ≥22 | 852.00 | 852 | 3.20 - 6.0 | |
| 1030nm High Performance Laser Line Filter 12.5mm Dia. | 12-273 | 12.50 +0.0/-0.1 | 0 ±2 | 3.9 | 947.6 - 1014.6 & 1040.3 - 1368.2 | 1014.6 - 1019.7 & 1045.5 - 1133 | ≥6.0 | ≥10 | 1,030.00 | 1030 | 3.90 - 7.2 | |
| 1030nm High Performance Laser Line Filter 25mm Dia. | 12-281 | 25.00 +0.0/-0.1 | 0 ±2 | 3.9 | 947.6 - 1014.6 & 1040.3 - 1368.2 | 1014.6 - 1019.7 & 1045.5 - 1133 | ≥6.0 | ≥22 | 1,030.00 | 1030 | 3.90 - 7.2 | |
| LASER BP FILTER 12.5 DIA 1064 CWL | 47-497 | 12.50 +0.0/-0.1 | 0 ±2 | 4.0 | <11 | 979 - 1053 & 1075 - 1429 | 979 - 1048 & 1080 - 1170 | ≥6.0 | ≥10 | 1,064.00 | 1064 | 4.04 - 7.45 |
| LASER BP FILTER 25 DIA 1064 CWL | 64-261 | 25.00 +0.0/-0.1 | 0 ±2 | 4.0 | <11 | 979 - 1053 & 1075 - 1429 | 979 - 1048 & 1080 - 1170 | ≥6.0 | ≥22 | 1,064.00 | 1064 | 4.04 - 7.45 |

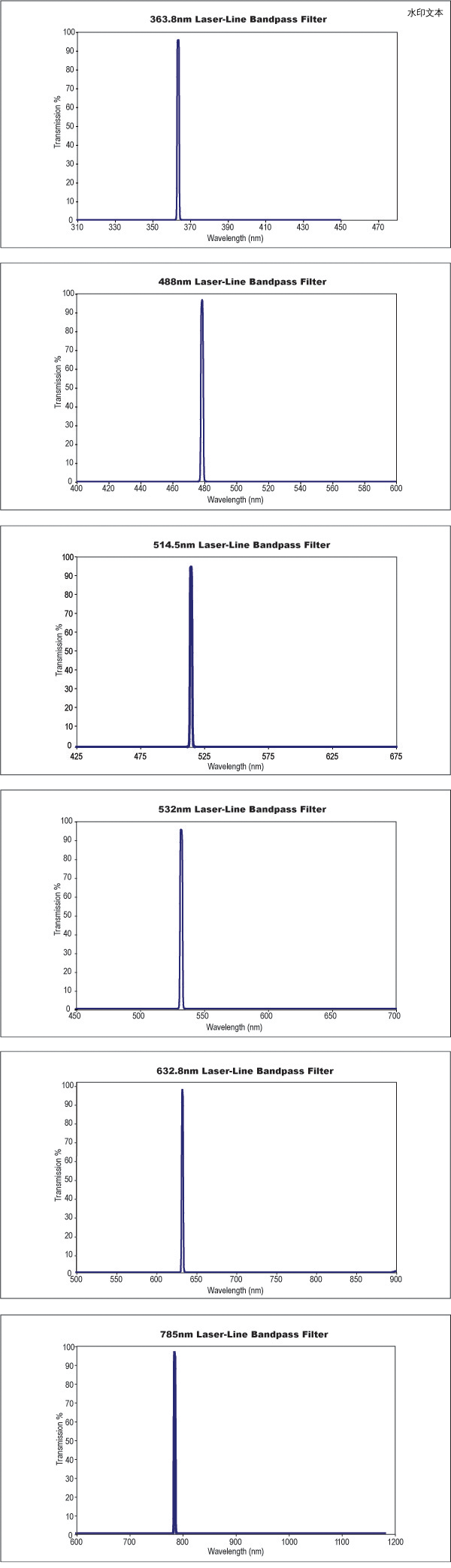

技术数据
