蓝宝石窗口片

蓝宝石窗口片

￥ 0.00
0.00

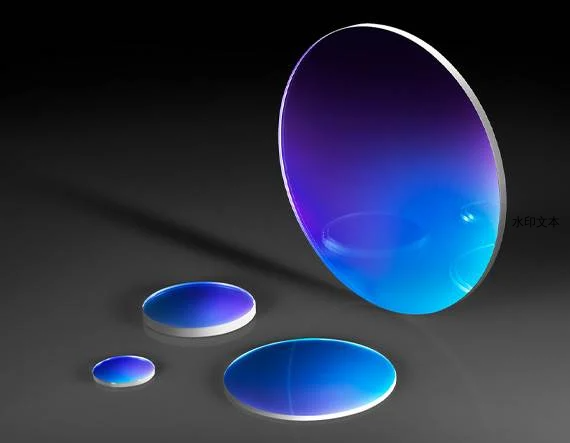

TECHSPEC®蓝宝石窗口片由耐用的单晶体蓝宝石制成，由于其极高的表面硬度、高导热性、高介电常数和耐受普通化学酸碱性，使其成为恶劣环境下使用（比如激光系统）的理想选择。蓝宝石是仅次于 钻石 的第二硬晶体，由于其结构强度高，蓝宝石窗口片可以做得比其他普通窗口片薄得多，而且透光率更高。在化学上，蓝宝石是单晶的氧化铝（Al2O3)，在无镀膜的情况下，透射范围为330-5500nm。TECHSPEC® 蓝宝石窗口片可选可见光，近红外和红外增透膜，镀膜覆盖范围350 - 5000 nm。


  • 具有极强的表面硬度与耐化学性

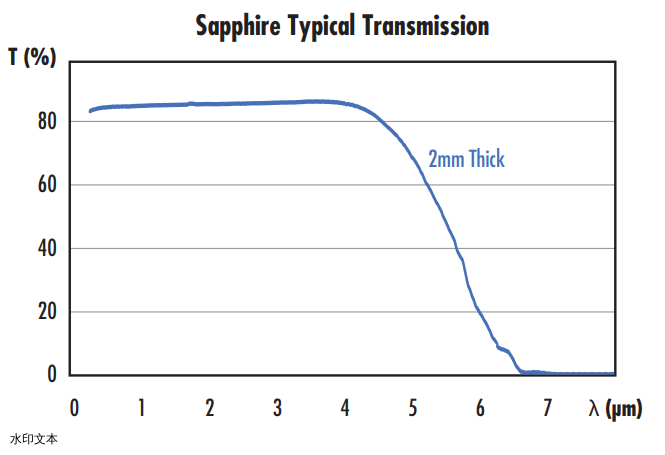

  • 可传输紫外线到中红外线的波长

  • 比标准玻璃窗口片更薄、更坚固

  • 提供覆盖 350 - 5000nm波长的增透膜选项

                           产品

标题产品编码色散系数 (vd)轴方向倒角双折射率 (no-ne) CA (%)CA (mm)Dia. (mm)尺寸 (mm)厚度 (mm)涂层
1mm Dia., 0.5mm Thick, Uncoated, Sapphire Window17-21672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 0.90 1.00 ±0.05
0.50 ±0.05Uncoated
直径2.5mm 不镀膜蓝宝石窗口片43-62772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 2.25 2.50 ±0.05
0.50 ±0.05Uncoated
3.2mm Dia., 1mm Thick, Uncoated, Sapphire Window17-21772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 2.88 3.20 ±0.05
1.00 ±0.05Uncoated
5mm Dia., 0.2mm Thick, Uncoated, Sapphire Window71-21772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.5 5.00 ±0.05
0.20 ±0.05Uncoated
5mm Dia., 0.5mm Thick, Uncoated, Sapphire Window17-21872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90
5.00 ±0.05
0.50 ±0.05Uncoated
直径5mm， 不镀膜蓝宝石窗口片43-36572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.15
1.00 ±0.05Uncoated
5mm Dia., 2mm Thick, Uncoated Sapphire Window25-37672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
2.00 ±0.05Uncoated
5mm Dia., 3mm Thick, Uncoated Sapphire Window25-37772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
3.00 ±0.05Uncoated

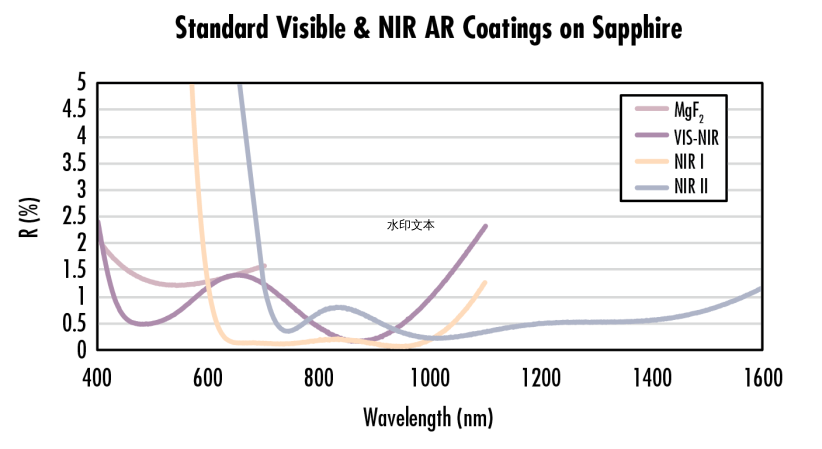

5mm Dia., 0.5mm Thick, MgF2 AR Coated Sapphire Window20-62372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
0.50 ±0.05MgF2 (400-700nm)
Window Sapph 5mm Dia MgF236-19772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.15
1.00 ±0.05MgF2 (400-700nm)
5mm Dia., 2mm Thick, MgF2 AR Coated Sapphire Window25-38672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
2.00 ±0.05MgF2 (400-700nm)
5mm Dia., 3mm Thick, MgF2 AR Coated Sapphire Window25-38772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
3.00 ±0.05MgF2 (400-700nm)
5mm Dia., 0.5mm Thick, VIS-EXT AR Coated Sapphire Window28-51272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
0.50 ±0.05VIS-EXT (350-700nm)
5mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-51372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.15
1.00 ±0.05VIS-EXT (350-700nm)
5mm Dia., 2mm Thick, VIS-EXT AR Coated Sapphire Window28-51472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
2.00 ±0.05VIS-EXT (350-700nm)
5mm Dia., 3mm Thick, VIS-EXT AR Coated Sapphire Window28-51572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
3.00 ±0.05VIS-EXT (350-700nm)
5mm Dia., 0.5mm Thick, VIS-NIR AR Coated Sapphire Window20-74172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
0.50 ±0.05VIS-NIR (400-1000nm)
Window Sapph 5mm Dia VIS-NIR36-57772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.15
1.00 ±0.05VIS-NIR (400-1000nm)
5mm Dia., 2mm Thick, VIS-NIR AR Coated Sapphire Window25-39672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
2.00 ±0.05VIS-NIR (400-1000nm)
5mm Dia., 3mm Thick, VIS-NIR AR Coated Sapphire Window25-39772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
3.00 ±0.05VIS-NIR (400-1000nm)
5mm Dia., 0.5mm Thick, NIR I AR Coated Sapphire Window20-83872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
0.50 ±0.05NIR I (600-1050nm)
Window Sapph 5mm Dia NIR I36-47772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.15
1.00 ±0.05NIR I (600-1050nm)
5mm Dia., 2mm Thick, NIR I AR Coated Sapphire Window25-40672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
2.00 ±0.05NIR I (600-1050nm)
5mm Dia., 3mm Thick, NIR I AR Coated Sapphire Window25-40772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
3.00 ±0.05NIR I (600-1050nm)
5mm Dia., 0.5mm Thick, NIR II AR Coated Sapphire Window20-90472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
0.50 ±0.05NIR II (750-1550nm)
Window Sapph 5mm Dia NIR II36-56272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.15
1.00 ±0.05NIR II (750-1550nm)
5mm Dia., 2mm Thick, NIR II AR Coated Sapphire Window25-41672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
2.00 ±0.05NIR II (750-1550nm)
5mm Dia., 3mm Thick, NIR II AR Coated Sapphire Window25-41772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
3.00 ±0.05NIR II (750-1550nm)

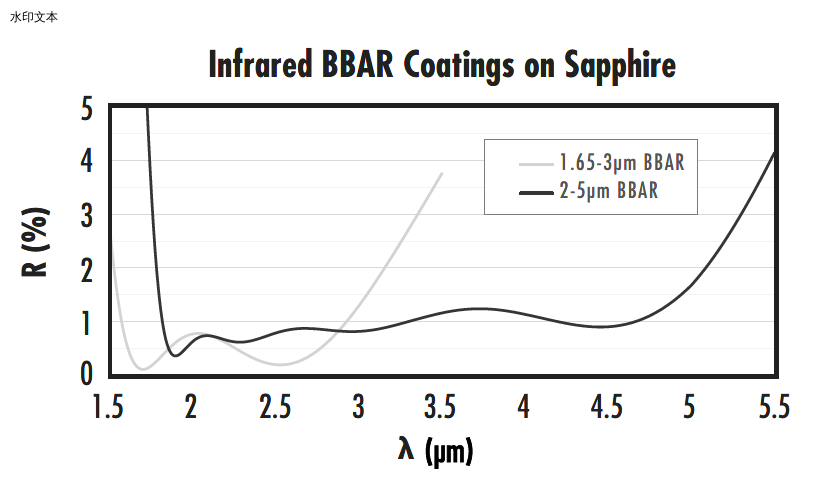

5mm Dia., 0.5mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window20-97472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
0.50 ±0.05BBAR (1650-3000nm)

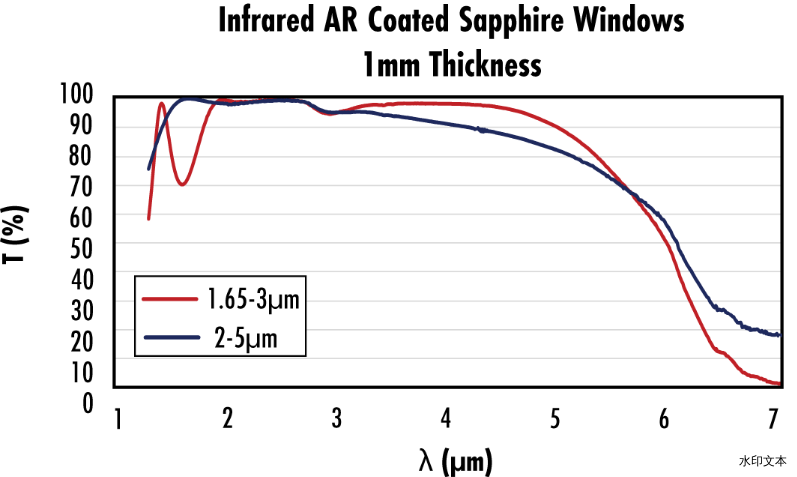

5mm Dia., 1mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-98872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.15
1.00 ±0.05BBAR (1650-3000nm)
5mm Dia., 2mm Thick, BBAR (1650 - 3000nm) Coated Sapphire Window25-42672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
2.00 ±0.05BBAR (1650-3000nm)
5mm Dia., 3mm Thick, BBAR (1650 - 3000nm) Coated Sapphire Window25-42772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
3.00 ±0.05BBAR (1650-3000nm)
5mm Dia., 0.5mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-01172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
0.50 ±0.05BBAR (2000-5000nm)
5mm Dia., 1mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-00072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.15
1.00 ±0.05BBAR (2000-5000nm)
5mm Dia., 2mm Thick, BBAR (2000 - 5000nm) Coated Sapphire Window25-43672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
2.00 ±0.05BBAR (2000-5000nm)
5mm Dia., 3mm Thick, BBAR (2000 - 5000nm) Coated Sapphire Window25-43772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.50 5.00 ±0.05
3.00 ±0.05BBAR (2000-5000nm)
6.35mm Dia., 0.2mm Thick, Uncoated, Sapphire Window71-21872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
0.20 ±0.05Uncoated
6.35mm 直径，未镀膜蓝宝石窗片45-56772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
0.50 ±0.05Uncoated
6.35mm Dia., 1mm Thick, Uncoated, Sapphire Window17-21972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90
6.35 ±0.05
1.00 ±0.05Uncoated
6.35mm Dia., 2mm Thick, Uncoated, Sapphire Window17-22072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90
6.35 ±0.05
2.00 ±0.05Uncoated
6.35mm Dia., 0.5mm Thick, MgF2 AR Coated Sapphire Window39-23172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
0.50 ±0.05MgF2 (400-700nm)
6.35mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window20-62772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
1.00 ±0.05MgF2 (400-700nm)
6.35mm Dia., 2mm Thick, MgF2 AR Coated Sapphire Window20-62972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
2.00 ±0.05MgF2 (400-700nm)
6.35mm Dia., 0.5mm Thick, VIS-EXT AR Coated Sapphire Window28-51672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
0.50 ±0.05VIS-EXT (350-700nm)
6.35mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-51772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
1.00 ±0.05VIS-EXT (350-700nm)
6.35mm Dia., 2mm Thick, VIS-EXT AR Coated Sapphire Window28-51872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
2.00 ±0.05VIS-EXT (350-700nm)
6.35mm Dia., 0.5mm Thick, VIS-NIR AR Coated Sapphire Window39-24672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
0.50 ±0.05VIS-NIR (400-1000nm)
6.35mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window20-76072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
1.00 ±0.05VIS-NIR (400-1000nm)
6.35mm Dia., 2mm Thick, VIS-NIR AR Coated Sapphire Window20-76372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
2.00 ±0.05VIS-NIR (400-1000nm)
6.35mm Dia., 0.5mm Thick, NIR I AR Coated Sapphire Window39-25272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
0.50 ±0.05NIR I (600-1050nm)
6.35mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window20-83972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
1.00 ±0.05NIR I (600-1050nm)
6.35mm Dia., 2mm Thick, NIR I AR Coated Sapphire Window20-84172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
2.00 ±0.05NIR I (600-1050nm)
6.35mm Dia., 0.5mm Thick, NIR II AR Coated Sapphire Window39-26272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
0.50 ±0.05NIR II (750-1550nm)
6.35mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window20-90872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
1.00 ±0.05NIR II (750-1550nm)
6.35mm Dia., 2mm Thick, NIR II AR Coated Sapphire Window20-91372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
2.00 ±0.05NIR II (750-1550nm)
6.35mm Dia., 0.5mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-98972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
0.50 ±0.05BBAR (1650-3000nm)
6.35mm Dia., 1mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window20-97672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
1.00 ±0.05BBAR (1650-3000nm)
6.35mm Dia., 2mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window20-97772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
2.00 ±0.05BBAR (1650-3000nm)
6.35mm Dia., 0.5mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-00172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
0.50 ±0.05BBAR (2000-5000nm)
6.35mm Dia., 1mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-01372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
1.00 ±0.05BBAR (2000-5000nm)
6.35mm Dia., 2mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-01572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 5.72 6.35 ±0.05
2.00 ±0.05BBAR (2000-5000nm)
直径7.5mm 不镀膜蓝宝石窗口片43-62872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 6.75 7.50 ±0.10
0.40 ±0.05Uncoated
直径9.5mm 不镀膜蓝宝石窗口片43-62972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 8.55 9.50 ±0.20
0.50 ±0.15Uncoated
10mm Dia., 0.2mm Thick, Uncoated, Sapphire Window71-22172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9 10.00 ±0.05
0.20 ±0.05Uncoated
10mm Dia., 0.5mm Thick, Uncoated, Sapphire Window17-22172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90
10.00 ±0.05
0.50 ±0.05Uncoated
直径10mm， 不镀膜蓝宝石窗口片43-36672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.25
1.00 ±0.15Uncoated
10mm Dia., 2mm Thick, Uncoated Sapphire Window25-37872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
2.00 ±0.05Uncoated
10mm Dia., 3mm Thick, Uncoated Sapphire Window25-37972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
3.00 ±0.05Uncoated
10mm Dia., 0.5mm Thick, MgF2 AR Coated Sapphire Window20-63372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
0.50 ±0.05MgF2 (400-700nm)
Window Sapph 10mm Dia MgF236-20172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.25
1.00 ±0.15MgF2 (400-700nm)
10mm Dia., 2mm Thick, MgF2 AR Coated Sapphire Window25-38872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
2.00 ±0.05MgF2 (400-700nm)
10mm Dia., 3mm Thick, MgF2 AR Coated Sapphire Window25-38972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
3.00 ±0.05MgF2 (400-700nm)
10mm Dia., 0.5mm Thick, VIS-EXT AR Coated Sapphire Window28-51972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
0.50 ±0.05VIS-EXT (350-700nm)
10mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-55372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.25
1.00 ±0.15VIS-EXT (350-700nm)
10mm Dia., 2mm Thick, VIS-EXT AR Coated Sapphire Window28-55472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
2.00 ±0.05VIS-EXT (350-700nm)
10mm Dia., 3mm Thick, VIS-EXT AR Coated Sapphire Window28-55572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
3.00 ±0.05VIS-EXT (350-700nm)
10mm Dia., 0.5mm Thick, VIS-NIR AR Coated Sapphire Window20-76572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
0.50 ±0.05VIS-NIR (400-1000nm)
Window Sapph 10mm Dia VIS-NIR36-57872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.25
1.00 ±0.15VIS-NIR (400-1000nm)
10mm Dia., 0.5mm Thick, NIR I AR Coated Sapphire Window20-84872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
0.50 ±0.05NIR I (600-1050nm)
Window Sapph 10mm Dia NIR I36-48772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.25
1.00 ±0.15NIR I (600-1050nm)
10mm Dia., 0.5mm Thick, NIR II AR Coated Sapphire Window20-91472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
0.50 ±0.05NIR II (750-1550nm)
Window Sapph 10mm Dia NIR II36-56672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.25
1.00 ±0.15NIR II (750-1550nm)
10mm Dia., 2mm Thick, VIS-NIR AR Coated Sapphire Window25-39872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
2.00 ±0.05VIS-NIR (400-1000nm)
10mm Dia., 3mm Thick, VIS-NIR AR Coated Sapphire Window25-39972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
3.00 ±0.05VIS-NIR (400-1000nm)
10mm Dia., 2mm Thick, NIR I AR Coated Sapphire Window25-40872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
2.00 ±0.05NIR I (600-1050nm)
10mm Dia., 3mm Thick, NIR I AR Coated Sapphire Window25-40972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
3.00 ±0.05NIR I (600-1050nm)
10mm Dia., 2mm Thick, NIR II AR Coated Sapphire Window25-41872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
2.00 ±0.05NIR II (750-1550nm)
10mm Dia., 3mm Thick, NIR II AR Coated Sapphire Window25-41972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
3.00 ±0.05NIR II (750-1550nm)
10mm Dia., 0.5mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window20-98172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
0.50 ±0.05BBAR (1650-3000nm)
10mm Dia., 1mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-99072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.25
1.00 ±0.15BBAR (1650-3000nm)
10mm Dia., 2mm Thick, BBAR (1650 - 3000nm) Coated Sapphire Window25-42872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
2.00 ±0.05BBAR (1650-3000nm)
10mm Dia., 3mm Thick, BBAR (1650 - 3000nm) Coated Sapphire Window25-42972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
3.00 ±0.05BBAR (1650-3000nm)
10mm Dia., 0.5mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-01672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
0.50 ±0.05BBAR (2000-5000nm)
10mm Dia., 1mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-00272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.25
1.00 ±0.15BBAR (2000-5000nm)
10mm Dia., 2mm Thick, BBAR (2000 - 5000nm) Coated Sapphire Window25-43872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
2.00 ±0.05BBAR (2000-5000nm)
10mm Dia., 3mm Thick, BBAR (2000 - 5000nm) Coated Sapphire Window25-43972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.00 10.00 ±0.05
3.00 ±0.05BBAR (2000-5000nm)
12.5mm Dia., 0.5mm Thick, VIS-EXT AR Coated Sapphire Window28-55672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.25 12.50 ±0.15
1.00 ±0.05VIS-EXT (350-700nm)
Window Saph 12.5mm dia Comm36-25272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.25 12.50 ±0.15
1.00 ±0.05Uncoated
Window Sapph 12.5mm Dia MgF236-20272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.25 12.50 ±0.15
1.00 ±0.05MgF2 (400-700nm)
Window Sapph 12.5mm Dia VIS-NIR36-57972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.25 12.50 ±0.15
1.00 ±0.05VIS-NIR (400-1000nm)
Window Sapph 12.5mm Dia NIR I36-48872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.25 12.50 ±0.15
1.00 ±0.05NIR I (600-1050nm)
Window Sapph 12.5mm Dia NIR II36-56772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.25 12.50 ±0.15
1.00 ±0.05NIR II (750-1550nm)
12.5mm Dia., 1mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-99172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.25 12.50 ±0.15
1.00 ±0.05BBAR (1650-3000nm)
12.5mm Dia., 1mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-00372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.25 12.50 ±0.15
1.00 ±0.05BBAR (2000-5000nm)
12.5 x 12.5mm, 1mm Thick, Uncoated, Sapphire Window39-22872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.25 x 11.25
12.50 x 12.50 ±0.201.00 ±0.05Uncoated
12.7mm Dia., 0.2mm Thick, Uncoated, Sapphire Window71-22472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
0.20 ±0.05Uncoated
12.7mm Dia., 0.5mm Thick, Uncoated, Sapphire Window17-22272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90
12.70 ±0.05
0.50 ±0.05Uncoated
12.7mm Dia., 1mm Thick, Uncoated, Sapphire Window17-22372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90
12.70 ±0.05
1.00 ±0.05Uncoated
12.7mm Dia., 2mm Thick, Uncoated, Sapphire Window17-22472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90
12.70 ±0.05
2.00 ±0.05Uncoated
12.7mm直径，未镀膜，蓝宝石窗片68-15772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
3.18 ±0.05Uncoated
12.7mm Dia., 0.5mm Thick, MgF2 AR Coated Sapphire Window20-63472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
0.50 ±0.05MgF2 (400-700nm)
12.7mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window20-63572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
1.00 ±0.05MgF2 (400-700nm)
12.7mm Dia., 2mm Thick, MgF2 AR Coated Sapphire Window20-63872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
2.00 ±0.05MgF2 (400-700nm)
12.7mm Dia., 3.18mm Thick, MgF2 AR Coated Sapphire Window39-23272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
3.18 ±0.05MgF2 (400-700nm)
12.7mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-55872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
1.00 ±0.05VIS-EXT (350-700nm)
12.7mm Dia., 2mm Thick, VIS-EXT AR Coated Sapphire Window28-55972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
2.00 ±0.05VIS-EXT (350-700nm)
12.7mm Dia., 3.18mm Thick, VIS-EXT AR Coated Sapphire Window28-56072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
3.18 ±0.05VIS-EXT (350-700nm)
12.7mm Dia., 0.5mm Thick, VIS-NIR AR Coated Sapphire Window20-76672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
0.50 ±0.05VIS-NIR (400-1000nm)
12.7mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window20-77172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
1.00 ±0.05VIS-NIR (400-1000nm)
12.7mm Dia., 2mm Thick, VIS-NIR AR Coated Sapphire Window20-78872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
2.00 ±0.05VIS-NIR (400-1000nm)
12.7mm Dia., 3.18mm Thick, VIS-NIR AR Coated Sapphire Window39-24772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
3.18 ±0.05VIS-NIR (400-1000nm)
12.7mm Dia., 0.5mm Thick, NIR I AR Coated Sapphire Window20-85072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
0.50 ±0.05NIR I (600-1050nm)
12.7mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window20-85772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
1.00 ±0.05NIR I (600-1050nm)
12.7mm Dia., 2mm Thick, NIR I AR Coated Sapphire Window20-85972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
2.00 ±0.05NIR I (600-1050nm)
12.7mm Dia., 3.18mm Thick, NIR I AR Coated Sapphire Window39-25372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
3.18 ±0.05NIR I (600-1050nm)
12.7mm Dia., 0.5mm Thick, NIR II AR Coated Sapphire Window20-91872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
0.50 ±0.05NIR II (750-1550nm)
12.7mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window20-92672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
1.00 ±0.05NIR II (750-1550nm)
12.7mm Dia., 2mm Thick, NIR II AR Coated Sapphire Window20-92772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
2.00 ±0.05NIR II (750-1550nm)
12.7mm Dia., 3.18mm Thick, NIR II AR Coated Sapphire Window39-26372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
3.18 ±0.05NIR II (750-1550nm)
12.7mm Dia., 0.5mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window21-00072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
0.50 ±0.05BBAR (1650-3000nm)
12.7mm Dia., 0.5mm Thick, VIS-EXT AR Coated Sapphire Window28-55772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
0.50 ±0.05VIS-EXT (350-700nm)
12.7mm Dia., 1mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window21-00172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
1.00 ±0.05BBAR (1650-3000nm)
12.7mm Dia., 2mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window21-00272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
2.00 ±0.05BBAR (1650-3000nm)
12.7mm Dia., 3.18mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-99272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
3.18 ±0.05BBAR (1650-3000nm)
12.7mm Dia., 0.5mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-01772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
0.50 ±0.05BBAR (2000-5000nm)
12.7mm Dia., 1mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-01872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
1.00 ±0.05BBAR (2000-5000nm)
12.7mm Dia., 2mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-01972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
2.00 ±0.05BBAR (2000-5000nm)
12.7mm Dia., 3.18mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-00472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.43 12.70 ±0.05
3.18 ±0.05BBAR (2000-5000nm)
直径12.75mm 不镀膜蓝宝石窗口片43-63172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.48 12.75 ±0.15
1.00 ±0.10Uncoated
直径13mm 不镀膜蓝宝石窗口片43-63272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.70 13.00 ±0.30
0.50 ±0.10Uncoated
15mm Dia., 0.2mm Thick, Uncoated, Sapphire Window71-22572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.5 15.00 ±0.05
0.20 ±0.05Uncoated
15mm Dia., 0.5mm Thick, Uncoated, Sapphire Window17-22572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90
15.00 ±0.05
0.50 ±0.05Uncoated
15mm Dia., 1mm Thick, Uncoated, Sapphire Window17-22672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90
15.00 ±0.05
1.00 ±0.05Uncoated
直径15mm， 不镀膜蓝宝石窗口片43-36772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.25
2.00 ±0.10Uncoated
15mm Dia., 0.5mm Thick, MgF2 AR Coated Sapphire Window20-64272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
0.50 ±0.05MgF2 (400-700nm)
15mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window20-64772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
1.00 ±0.05MgF2 (400-700nm)
Window Sapph 15mm Dia MgF236-20672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.25
2.00 ±0.10MgF2 (400-700nm)
15mm Dia., 0.5mm Thick, VIS-EXT AR Coated Sapphire Window28-56172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
0.50 ±0.05VIS-EXT (350-700nm)
15mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-56272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
1.00 ±0.05VIS-EXT (350-700nm)
15mm Dia., 2mm Thick, VIS-EXT AR Coated Sapphire Window28-56372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.25
2.00 ±0.10VIS-EXT (350-700nm)
15mm Dia., 0.5mm Thick, VIS-NIR AR Coated Sapphire Window20-79272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
0.50 ±0.05VIS-NIR (400-1000nm)
15mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window20-79372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
1.00 ±0.05VIS-NIR (400-1000nm)
Window Sapph 15mm Dia VIS-NIR36-58072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.25
2.00 ±0.10VIS-NIR (400-1000nm)
15mm Dia., 0.5mm Thick, NIR I AR Coated Sapphire Window20-86772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
0.50 ±0.05NIR I (600-1050nm)
15mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window20-87072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
1.00 ±0.05NIR I (600-1050nm)
Window Sapph 15mm Dia NIR I36-49272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.25
2.00 ±0.10NIR I (600-1050nm)
15mm Dia., 0.5mm Thick, NIR II AR Coated Sapphire Window20-93672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
0.50 ±0.05NIR II (750-1550nm)
15mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window20-93972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
1.00 ±0.05NIR II (750-1550nm)
Window Sapph 15mm Dia NIR II36-57172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.25
2.00 ±0.10NIR II (750-1550nm)
15mm Dia., 0.5mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window21-00372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
0.50 ±0.05BBAR (1650-3000nm)
15mm Dia., 1mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window21-00472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
1.00 ±0.05BBAR (1650-3000nm)
15mm Dia., 2mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-99372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.25
2.00 ±0.10BBAR (1650-3000nm)
15mm Dia., 0.5mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-02072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
0.50 ±0.05BBAR (2000-5000nm)
15mm Dia., 1mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-02172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.05
1.00 ±0.05BBAR (2000-5000nm)
15mm Dia., 2mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-00572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 13.50 15.00 ±0.25
2.00 ±0.10BBAR (2000-5000nm)
17.25mm Dia., 1mm Thick, Uncoated, Sapphire Window71-22672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 15.53 17.25 ±0.05
1.00 ±0.05Uncoated
直径17.25mm 不镀膜蓝宝石窗口片43-63372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 15.53 17.25 ±0.10
2.00 ±0.10Uncoated
20mm Dia., 0.2mm Thick, Uncoated, Sapphire Window71-22772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18 20.00 ±0.05
0.20 ±0.05Uncoated
20mm Dia., 0.5mm Thick, Uncoated, Sapphire Window17-22772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
0.50 ±0.05Uncoated
20mm Dia., 1mm Thick, Uncoated, Sapphire Window17-22872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
1.00 ±0.05Uncoated
直径20mm， 不镀膜蓝宝石窗口片43-36872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.10
2.00 ±0.10Uncoated
20mm Dia., 3mm Thick, Uncoated Sapphire Window25-38072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
3.00 ±0.05Uncoated
20mm Dia., 0.5mm Thick, MgF2 AR Coated Sapphire Window20-66072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
0.50 ±0.05MgF2 (400-700nm)
20mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window20-66372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
1.00 ±0.05MgF2 (400-700nm)
Window Sapph 20mm Dia MgF236-45772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.10
2.00 ±0.10MgF2 (400-700nm)
20mm Dia., 3mm Thick, MgF2 AR Coated Sapphire Window25-39072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
3.00 ±0.05MgF2 (400-700nm)
20mm Dia., 0.5mm Thick, VIS-EXT AR Coated Sapphire Window28-56472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
0.50 ±0.05VIS-EXT (350-700nm)
20mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-56572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
1.00 ±0.05VIS-EXT (350-700nm)
20mm Dia., 2mm Thick, VIS-EXT AR Coated Sapphire Window28-56672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.10
2.00 ±0.10VIS-EXT (350-700nm)
20mm Dia., 3mm Thick, VIS-EXT AR Coated Sapphire Window28-57272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
3.00 ±0.05VIS-EXT (350-700nm)
20mm Dia., 0.5mm Thick, VIS-NIR AR Coated Sapphire Window20-79772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
0.50 ±0.05VIS-NIR (400-1000nm)
20mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window20-79872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
1.00 ±0.05VIS-NIR (400-1000nm)
Window Sapph 20mm Dia VIS-NIR36-58172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.10
2.00 ±0.10VIS-NIR (400-1000nm)
20mm Dia., 3mm Thick, VIS-NIR AR Coated Sapphire Window25-40072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
3.00 ±0.05VIS-NIR (400-1000nm)
20mm Dia., 0.5mm Thick, NIR I AR Coated Sapphire Window20-87372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
0.50 ±0.05NIR I (600-1050nm)
20mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window20-87472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
1.00 ±0.05NIR I (600-1050nm)
Window Sapph 20mm Dia NIR I36-49872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.10
2.00 ±0.10NIR I (600-1050nm)
20mm Dia., 0.5mm Thick, NIR II AR Coated Sapphire Window20-94172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
0.50 ±0.05NIR II (750-1550nm)
20mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window20-94572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
1.00 ±0.05NIR II (750-1550nm)
Window Sapph 20mm Dia NIR II36-57372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.10
2.00 ±0.10NIR II (750-1550nm)
20mm Dia., 3mm Thick, NIR I AR Coated Sapphire Window25-41072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
3.00 ±0.05NIR I (600-1050nm)
20mm Dia., 3mm Thick, NIR II AR Coated Sapphire Window25-42072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
3.00 ±0.05NIR II (750-1550nm)
20mm Dia., 0.5mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window21-00572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
0.50 ±0.05BBAR (1650-3000nm)
20mm Dia., 1mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window21-00672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
1.00 ±0.05BBAR (1650-3000nm)
20mm Dia., 2mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-99472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.10
2.00 ±0.10BBAR (1650-3000nm)
20mm Dia., 3mm Thick, BBAR (1650 - 3000nm) Coated Sapphire Window25-43072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
3.00 ±0.05BBAR (1650-3000nm)
20mm Dia., 0.5mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-02272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
0.50 ±0.05BBAR (2000-5000nm)
20mm Dia., 1mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-02372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
1.00 ±0.05BBAR (2000-5000nm)
20mm Dia., 2mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-00772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.10
2.00 ±0.10BBAR (2000-5000nm)
20mm Dia., 3mm Thick, BBAR (2000 - 5000nm) Coated Sapphire Window25-44072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18.00 20.00 ±0.05
3.00 ±0.05BBAR (2000-5000nm)
直径22mm 不镀膜蓝宝石窗口片43-63472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 19.80 22.00 ±0.05
1.00 ±0.05Uncoated
23.0mm Dia., 1.5mm Thick, Uncoated, Sapphire Window23-29072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 20.7 23.00 +0/-0.20
1.50 ±0.10Uncoated
直径23.75mm 蓝宝石窗口片43-63572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 21.38 23.75 ±0.10
1.00 ±0.05Uncoated
25mm Dia., 0.2mm Thick, Uncoated, Sapphire Window71-22972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.5 25.00 ±0.05
0.20 ±0.05Uncoated
25mm Dia., 0.5mm Thick, Uncoated, Sapphire Window17-22972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
0.50 ±0.05Uncoated
25mm Dia., 1mm Thick, Uncoated, Sapphire Window17-23072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
1.00 ±0.05Uncoated
直径25mm， 不镀膜蓝宝石窗口片43-36972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.25
2.30 ±0.10Uncoated
25mm Dia., 0.5mm Thick, MgF2 AR Coated Sapphire Window20-67672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
0.50 ±0.05MgF2 (400-700nm)
25mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window20-68172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
1.00 ±0.05MgF2 (400-700nm)
Window Sapph 25mm Dia MgF236-46072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.25
2.30 ±0.10MgF2 (400-700nm)
25mm Dia., 0.5mm Thick, VIS-EXT AR Coated Sapphire Window28-68872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
0.50 ±0.05VIS-EXT (350-700nm)
25mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-68972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
1.00 ±0.05VIS-EXT (350-700nm)
25mm Dia., 2.3mm Thick, VIS-EXT AR Coated Sapphire Window28-69072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.25
2.30 ±0.10VIS-EXT (350-700nm)
25mm Dia., 0.5mm Thick, VIS-NIR AR Coated Sapphire Window20-81072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
0.50 ±0.05VIS-NIR (400-1000nm)
25mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window20-81572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
1.00 ±0.05VIS-NIR (400-1000nm)
Window Sapph 25mm Dia VIS-NIR36-58272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.25
2.30 ±0.10VIS-NIR (400-1000nm)
25mm Dia., 0.5mm Thick, NIR I AR Coated Sapphire Window20-88072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
0.50 ±0.05NIR I (600-1050nm)
25mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window20-88672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
1.00 ±0.05NIR I (600-1050nm)
Window Sapph 25mm Dia NIR I36-55072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.25
2.30 ±0.10NIR I (600-1050nm)
25mm Dia., 0.5mm Thick, NIR II AR Coated Sapphire Window20-95172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
0.50 ±0.05NIR II (750-1550nm)
25mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window20-95572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
1.00 ±0.05NIR II (750-1550nm)
Window Sapph 25mm Dia NIR II36-57672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.25
2.30 ±0.10NIR II (750-1550nm)
25mm Dia., 0.5mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window21-00772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
0.50 ±0.05BBAR (1650-3000nm)
25mm Dia., 1mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window21-00872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
1.00 ±0.05BBAR (1650-3000nm)
25mm Dia., 2.3mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-99572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.25
2.30 ±0.10BBAR (1650-3000nm)
25mm Dia., 0.5mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-02472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
0.50 ±0.05BBAR (2000-5000nm)
25mm Dia., 1mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-06072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.05
1.00 ±0.05BBAR (2000-5000nm)
25mm Dia., 2.3mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-00872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.50 25.00 ±0.25
2.30 ±0.10BBAR (2000-5000nm)
25.4mm Dia., 0.2mm Thick, Uncoated, Sapphire Window71-23072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
0.20 ±0.05Uncoated
25.4mm Dia., 0.5mm Thick, Uncoated, Sapphire Window17-23172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
0.50 ±0.05Uncoated
25.4mm Dia., 1mm Thick, Uncoated, Sapphire Window17-23272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
1.00 ±0.05Uncoated
直径25.4mm 不镀膜蓝宝石窗口片43-63672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
2.25 ±0.10Uncoated
25.4mm Dia., 5mm Thick, Uncoated Sapphire Window25-38172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
5.00 ±0.05Uncoated
25.4mm Dia., 0.5mm Thick, MgF2 AR Coated Sapphire Window20-68972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
0.50 ±0.05MgF2 (400-700nm)
25.4mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window20-69072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
1.00 ±0.05MgF2 (400-700nm)
25.4mm Dia., 2.3mm Thick, MgF2 AR Coated Sapphire Window39-23372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
2.30 ±0.10MgF2 (400-700nm)
25.4mm Dia., 5mm Thick, MgF2 AR Coated Sapphire Window25-39172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
5.00 ±0.05MgF2 (400-700nm)
25.4mm Dia., 0.5mm Thick, VIS-EXT AR Coated Sapphire Window28-69172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
0.50 ±0.05VIS-EXT (350-700nm)
25.4mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-69272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
1.00 ±0.05VIS-EXT (350-700nm)
25.4mm Dia., 2.3mm Thick, VIS-EXT AR Coated Sapphire Window28-69372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
2.30 ±0.10VIS-EXT (350-700nm)
25.4mm Dia., 5mm Thick, VIS-EXT AR Coated Sapphire Window28-69472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
5.00 ±0.05VIS-EXT (350-700nm)
25.4mm Dia., 0.5mm Thick, VIS-NIR AR Coated Sapphire Window20-83472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
0.50 ±0.05VIS-NIR (400-1000nm)
25.4mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window20-83672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
1.00 ±0.05VIS-NIR (400-1000nm)
25.4mm Dia., 2.3mm Thick, VIS-NIR AR Coated Sapphire Window39-24872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
2.30 ±0.10VIS-NIR (400-1000nm)
25.4mm Dia., 5mm Thick, VIS-NIR AR Coated Sapphire Window25-40172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
5.00 ±0.05VIS-NIR (400-1000nm)
25.4mm Dia., 0.5mm Thick, NIR I AR Coated Sapphire Window20-90172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
0.50 ±0.05NIR I (600-1050nm)
25.4mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window20-90372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
1.00 ±0.05NIR I (600-1050nm)
25.4mm Dia., 2.3mm Thick, NIR I AR Coated Sapphire Window39-25472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
2.30 ±0.10NIR I (600-1050nm)
25.4mm Dia., 5mm Thick, NIR I AR Coated Sapphire Window25-41172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
5.00 ±0.05NIR I (600-1050nm)
25.4mm Dia., 0.5mm Thick, NIR II AR Coated Sapphire Window20-96372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
0.50 ±0.05NIR II (750-1550nm)
25.4mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window20-97172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
1.00 ±0.05NIR II (750-1550nm)
25.4mm Dia., 2.3mm Thick, NIR II AR Coated Sapphire Window39-26472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
2.30 ±0.10NIR II (750-1550nm)
25.4mm Dia., 5mm Thick, NIR II AR Coated Sapphire Window25-42172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
5.00 ±0.05NIR II (750-1550nm)
25.4mm Dia., 0.5mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window21-00972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
0.50 ±0.05BBAR (1650-3000nm)
25.4mm Dia., 1mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window21-01072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
1.00 ±0.05BBAR (1650-3000nm)
25.4mm Dia., 2.3mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-99672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
2.30 ±0.10BBAR (1650-3000nm)
25.4mm Dia., 5mm Thick, BBAR (1650 - 3000nm) Coated Sapphire Window25-43172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
5.00 ±0.05BBAR (1650-3000nm)
25.4mm Dia., 0.5mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-06172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
0.50 ±0.05BBAR (2000-5000nm)
25.4mm Dia., 1mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window21-06272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
1.00 ±0.05BBAR (2000-5000nm)
25.4mm Dia., 2.3mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-00972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
2.30 ±0.10BBAR (2000-5000nm)
25.4mm Dia., 5mm Thick, BBAR (2000 - 5000nm) Coated Sapphire Window25-44172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 25.40 ±0.05
5.00 ±0.05BBAR (2000-5000nm)
25.4 x 25.4mm, 1mm Thick, Uncoated, Sapphire Window39-23072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.86 x 22.86
25.40 x 25.40 ±0.151.00 ±0.10Uncoated
28.0mm Dia., 1.5mm Thick, Uncoated, Sapphire Window23-29172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 25.2 28.00 +0/-0.20
1.50 ±0.10Uncoated
30.0mm Dia., 0.5mm Thick, Uncoated, Sapphire Window71-23172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27 30.00 ±0.05
0.50 ±0.05Uncoated
30.0mm直径，未镀膜，蓝宝石窗片48-91972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.25
1.00 ±0.10Uncoated
30mm Dia., 2mm Thick, Uncoated Sapphire Window25-38272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.05
2.00 ±0.05Uncoated
30mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window39-23472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.25
1.00 ±0.10MgF2 (400-700nm)
30mm Dia., 2mm Thick, MgF2 AR Coated Sapphire Window25-39272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.05
2.00 ±0.05MgF2 (400-700nm)
30mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-69572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.25
1.00 ±0.10VIS-EXT (350-700nm)
30mm Dia., 2mm Thick, VIS-EXT AR Coated Sapphire Window28-69672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.05
2.00 ±0.05VIS-EXT (350-700nm)
30mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window37-70272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.25
1.00 ±0.10VIS-NIR (400-1000nm)
30mm Dia., 2mm Thick, VIS-NIR AR Coated Sapphire Window25-40272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.05
2.00 ±0.05VIS-NIR (400-1000nm)
30mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window39-25672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.25
1.00 ±0.10NIR I (600-1050nm)
30mm Dia., 2mm Thick, NIR I AR Coated Sapphire Window25-41272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.05
2.00 ±0.05NIR I (600-1050nm)
30mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window39-26572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.25
1.00 ±0.10NIR II (750-1550nm)
30mm Dia., 2mm Thick, NIR II AR Coated Sapphire Window25-42272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.05
2.00 ±0.05NIR II (750-1550nm)
30mm Dia., 1mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-99772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.25
1.00 ±0.10BBAR (1650-3000nm)
30mm Dia., 2mm Thick, BBAR (1650 - 3000nm) Coated Sapphire Window25-43272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.05
2.00 ±0.05BBAR (1650-3000nm)
30mm Dia., 1mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-01072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.25
1.00 ±0.10BBAR (2000-5000nm)
30mm Dia., 2mm Thick, BBAR (2000 - 5000nm) Coated Sapphire Window25-44272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 27.00 30.00 ±0.05
2.00 ±0.05BBAR (2000-5000nm)
31.6mm Dia., 1.5mm Thick, Uncoated, Sapphire Window23-29272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 28.44 31.60 +0/-0.20
1.50 ±0.10Uncoated
直径31.75mm 不镀膜蓝宝石窗口片43-63772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 28.58 31.75 ±0.25
1.00 ±0.05Uncoated
31.75mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window39-23672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 28.58 31.75 ±0.25
1.00 ±0.05MgF2 (400-700nm)
31.75mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-69772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 28.58 31.75 ±0.25
1.00 ±0.05VIS-EXT (350-700nm)
31.75mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window39-24972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 28.58 31.75 ±0.25
1.00 ±0.05VIS-NIR (400-1000nm)
31.75mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window39-25772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 28.58 31.75 ±0.25
1.00 ±0.05NIR I (600-1050nm)
31.75mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window39-26672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 28.58 31.75 ±0.25
1.00 ±0.05NIR II (750-1550nm)
35.0mm直径，未镀膜，蓝宝石窗片48-92072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 31.50 35.00 ±0.25
1.00 ±0.10Uncoated
35.0mm Dia., 2.2mm Thick, Uncoated, Sapphire Window23-29372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 31.5 35.00 +0/-0.20
2.20 ±0.10Uncoated
35mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window39-23872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 31.50 35.00 ±0.25
1.00 ±0.10MgF2 (400-700nm)
35mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-69872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 31.50 35.00 ±0.25
1.00 ±0.10VIS-EXT (350-700nm)
35mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window39-25072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 31.50 35.00 ±0.25
1.00 ±0.10VIS-NIR (400-1000nm)
35mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window39-25872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 31.50 35.00 ±0.25
1.00 ±0.10NIR I (600-1050nm)
35mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window39-26772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 31.50 35.00 ±0.25
1.00 ±0.10NIR II (750-1550nm)
38.0mm Dia., 1.5mm Thick, Uncoated, Sapphire Window23-29472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 34.2 38.00 +0/-0.20
1.50 ±0.10Uncoated
38.1mm 直径，未镀膜蓝宝石窗片45-56872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 34.29 38.10 ±0.25
1.00 ±0.05Uncoated
38.1mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window39-24272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 34.29 38.10 ±0.25
1.00 ±0.05MgF2 (400-700nm)
38.1mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-69972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 34.29 38.10 ±0.25
1.00 ±0.05VIS-EXT (350-700nm)
38.1mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window39-25172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 34.29 38.10 ±0.25
1.00 ±0.05VIS-NIR (400-1000nm)
38.1mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window39-25972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 34.29 38.10 ±0.25
1.00 ±0.05NIR I (600-1050nm)
38.1mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window39-26872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 34.29 38.10 ±0.25
1.00 ±0.05NIR II (750-1550nm)
40mm Dia., 1mm Thick, Uncoated Sapphire Window25-38372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.05
1.00 ±0.05Uncoated
40.0mm直径，未镀膜，蓝宝石窗片48-92172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.25
2.00 ±0.10Uncoated
40mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window25-39372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.05
1.00 ±0.05MgF2 (400-700nm)
40mm Dia., 2mm Thick, MgF2 AR Coated Sapphire Window39-24372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.25
2.00 ±0.10MgF2 (400-700nm)
40mm Dia., 2mm Thick, VIS-EXT AR Coated Sapphire Window28-70372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.05
2.00 ±0.05VIS-EXT (350-700nm)
40mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-70272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.25
1.00 ±0.10VIS-EXT (350-700nm)
40mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window25-40372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.05
1.00 ±0.05VIS-NIR (400-1000nm)
40mm Dia., 2mm Thick, VIS-NIR AR Coated Sapphire Window37-70372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.25
2.00 ±0.10VIS-NIR (400-1000nm)
40mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window25-41372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.05
1.00 ±0.05NIR I (600-1050nm)
40mm Dia., 2mm Thick, NIR I AR Coated Sapphire Window39-26072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.25
2.00 ±0.10NIR I (600-1050nm)
40mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window25-42372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.05
1.00 ±0.05NIR II (750-1550nm)
40mm Dia., 2mm Thick, NIR II AR Coated Sapphire Window39-26972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.25
2.00 ±0.10NIR II (750-1550nm)
40mm Dia., 1mm Thick, BBAR (1650 - 3000nm) Coated Sapphire Window25-43372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.05
1.00 ±0.05BBAR (1650-3000nm)
40mm Dia., 2mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-99872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.25
2.00 ±0.10BBAR (1650-3000nm)
40mm Dia., 1mm Thick, BBAR (2000 - 5000nm) Coated Sapphire Window25-44372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.05
1.00 ±0.05BBAR (2000-5000nm)
40mm Dia., 2mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-01172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.00 40.00 ±0.25
2.00 ±0.10BBAR (2000-5000nm)
40.2mm Dia., 1.5mm Thick, Uncoated, Sapphire Window23-29572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 36.18 40.20 +0/-0.20
1.50 ±0.10Uncoated
43.2mm Dia., 1.5mm Thick, Uncoated, Sapphire Window23-29672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 38.88 43.20 +0/-0.20
1.50 ±0.10Uncoated
50mm Dia., 1mm Thick, Uncoated Sapphire Window25-38472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.00 50.00 ±0.05
1.00 ±0.05Uncoated
50mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window25-39472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.00 50.00 ±0.05
1.00 ±0.05MgF2 (400-700nm)
50mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-70472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.00 50.00 ±0.05
1.00 ±0.05VIS-EXT (350-700nm)
50mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window25-40472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.00 50.00 ±0.05
1.00 ±0.05VIS-NIR (400-1000nm)
50mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window25-41472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.00 50.00 ±0.05
1.00 ±0.05NIR I (600-1050nm)
50mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window25-42472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.00 50.00 ±0.05
1.00 ±0.05NIR II (750-1550nm)
50mm Dia., 1mm Thick, BBAR (1650 - 3000nm) Coated Sapphire Window25-43472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.00 50.00 ±0.05
1.00 ±0.05BBAR (1650-3000nm)
50mm Dia., 1mm Thick, BBAR (2000 - 5000nm) Coated Sapphire Window25-44472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.00 50.00 ±0.05
1.00 ±0.05BBAR (2000-5000nm)
50.8mm Dia., 0.5mm Thick, Uncoated Sapphire Window71-23372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
0.50 ±0.05Uncoated
50.8mm Dia., 1mm Thick, Uncoated Sapphire Window25-38572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
1.00 ±0.05Uncoated
50.8mm直径、未镀膜蓝宝石窗片45-81772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
3.18 ±0.05Uncoated
50.8mm Dia., 1mm Thick, MgF2 AR Coated Sapphire Window25-39572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
1.00 ±0.05MgF2 (400-700nm)
50.8mm Dia., 3.18mm Thick, MgF2 AR Coated Sapphire Window39-24572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
3.18 ±0.05MgF2 (400-700nm)
50.8mm Dia., 3.18mm Thick, VIS-EXT AR Coated Sapphire Window28-70672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
3.18 ±0.05VIS-EXT (350-700nm)
50.8mm Dia., 1mm Thick, VIS-EXT AR Coated Sapphire Window28-70572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
1.00 ±0.05VIS-EXT (350-700nm)
50.8mm Dia., 1mm Thick, VIS-NIR AR Coated Sapphire Window25-40572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
1.00 ±0.05VIS-NIR (400-1000nm)
50.8mm Dia., 3.18mm Thick, VIS-NIR AR Coated Sapphire Window37-70472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
3.18 ±0.05VIS-NIR (400-1000nm)
50.8mm Dia., 1mm Thick, NIR I AR Coated Sapphire Window25-41572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
1.00 ±0.05NIR I (600-1050nm)
50.8mm Dia., 3.18mm Thick, NIR I AR Coated Sapphire Window39-26172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
3.18 ±0.05NIR I (600-1050nm)
50.8mm Dia., 1mm Thick, NIR II AR Coated Sapphire Window25-42572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
1.00 ±0.05NIR II (750-1550nm)
50.8mm Dia., 3.18mm Thick, NIR II AR Coated Sapphire Window39-27072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
3.18 ±0.05NIR II (750-1550nm)
50.8mm Dia., 1mm Thick, BBAR (1650 - 3000nm) Coated Sapphire Window25-43572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
1.00 ±0.05BBAR (1650-3000nm)
50.8mm Dia., 3.18mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window15-99972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
3.18 ±0.05BBAR (1650-3000nm)
50.8mm Dia., 1mm Thick, BBAR (2000 - 5000nm) Coated Sapphire Window25-44572.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
1.00 ±0.05BBAR (2000-5000nm)
50.8mm Dia., 3.18mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window16-01372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45.72 50.80 ±0.05
3.18 ±0.05BBAR (2000-5000nm)
55.0mm Dia., 2.0mm Thick, Uncoated, Sapphire Window23-29772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 49.5 55.00 +0/-0.20
2.00 ±0.10Uncoated
59.2mm Dia., 1.5mm Thick, Uncoated, Sapphire Window23-29872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 53.28 59.20 +0/-0.20
1.50 ±0.10Uncoated
63.5mm直径，未镀膜，蓝宝石窗片48-92272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 57.15 63.50 ±0.25
2.00 ±0.10Uncoated
75mm Dia., 1mm Thick, Uncoated, Sapphire Window71-23472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 67.5 75.00 ±0.05
1.00 ±0.05Uncoated
直径75mm 不镀膜， 蓝宝石窗片47-54272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 67.50 75.00 ±0.125
2.00 ±0.05Uncoated
75mm Dia., 2mm Thick, MgF2 AR Coated Sapphire Window18-94772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 67.50 75.00 ±0.125
2.00 ±0.05MgF2 (400-700nm)
75mm Dia., 2mm Thick, VIS-EXT AR Coated Sapphire Window28-70772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 67.50 75.00 ±0.13
2.00 ±0.05VIS-EXT (350-700nm)
75mm Dia., 2mm Thick, VIS-NIR AR Coated Sapphire Window18-94872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 67.50 75.00 ±0.125
2.00 ±0.05VIS-NIR (400-1000nm)
75mm Dia., 2mm Thick, NIR I AR Coated Sapphire Window18-94972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 67.50 75.00 ±0.125
2.00 ±0.05NIR I (600-1050nm)
75mm Dia., 2mm Thick, NIR II AR Coated Sapphire Window18-95072.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 67.50 75.00 ±0.125
2.00 ±0.05NIR II (750-1550nm)
75mm Dia., 2mm Thick, BBAR (1650-3000nm) AR Coated Sapphire Window18-95172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 67.50 75.00 ±0.125
2.00 ±0.05BBAR (1650-3000nm)
75mm Dia., 2mm Thick, BBAR (2000-5000nm) AR Coated Sapphire Window18-95272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 67.50 75.00 ±0.125
2.00 ±0.05BBAR (2000-5000nm)
100mm Dia., 2mm Thick, Uncoated, Sapphire Window17-23372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90
100.00 ±0.10
2.00 ±0.05Uncoated
100mm Dia., 2mm Thick, VIS-NIR AR Coated, Sapphire Window24-17272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 90.00 100.00 ±0.10
2.00 ±0.05VIS-NIR (400-1000nm)
125mm Dia., 2mm Thick, Uncoated, Sapphire Window19-50772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 112.50 125.00 ±0.10
2.00 ±0.05Uncoated
125mm Dia., 2mm Thick, VIS-NIR AR Coated, Sapphire Window24-17372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 112.50 125.00 ±0.10
2.00 ±0.05VIS-NIR (400-1000nm)
150mm Dia., 3mm Thick, Uncoated, Sapphire Window19-50872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 135.00 150.00 ±0.10
3.00 ±0.05Uncoated
150mm Dia., 3mm Thick, VIS-NIR AR Coated, Sapphire Window24-17472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 135.00 150.00 ±0.10
3.00 ±0.05VIS-NIR (400-1000nm)
5 x 5mm, 1mm Thick, Uncoated, Sapphire Window75-13772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 4.5 x 4.5
5 x 5 1.00 Uncoated
10 x 10mm, 1mm Thick, Uncoated, Sapphire Window75-14172.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 9.0 x 9.0
10 x 10 1.00 Uncoated
20 x 20mm, 2mm Thick, Uncoated, Sapphire Window75-14272.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 18 x 18
20 x 20 2.00 Uncoated
25 x 25mm, 2.30mm Thick, Uncoated, Sapphire Window75-14372.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.5 x 22.5
25 x 25 2.30 Uncoated
50 x 50mm, 3.18mm Thick, Uncoated, Sapphire Window75-14472.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 45 x 45
50 x 50 3.18 Uncoated
75 x 75mm, 2mm Thick, Uncoated, Sapphire Window75-14672.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 67.5 x 67.5
75 x 75 2.00 Uncoated
12.5 x 17.5mm, 1mm Thick, Uncoated, Sapphire Window75-14772.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 11.25 x 15.75
12.5 x 17.5 1.00 Uncoated
25 x 35mm, 2mm Thick, Uncoated, Sapphire Window75-14872.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 22.5 x 31.5
25 x 35 2.00 Uncoated
35 x 50mm, 2mm Thick, Uncoated, Sapphire Window75-14972.24 Random Protective as needed 0.008 for Visible Light Orthogonal to Optical Axis ≥90 31.5 x 45
35 x 50 2.00 Uncoated


                              技术数据
