45° 柱状反射镜

45° 柱状反射镜

￥ 0.00
0.00

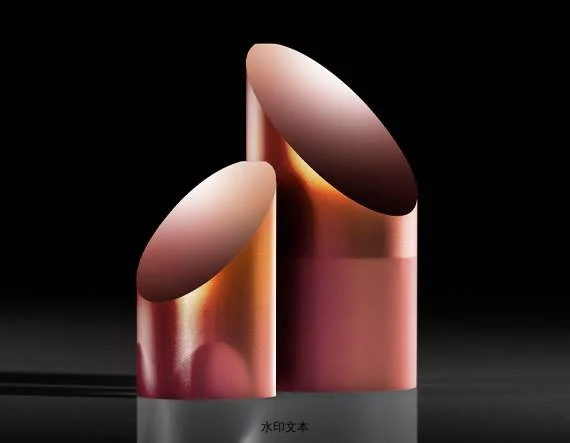

TECHSPEC® 45° 柱状反射镜设计用于各种激光和成像系统。这些反射镜可用于弯曲图像路径，或将激光光路转折90°。由于其直径较小，因此非常适合用于对尺寸有严格要求的光纤镜/内窥镜应用中。TECHSPEC 45° 柱状反射镜具有经过抛光的椭圆面、圆周和底面为磨砂面。这些元件有各种微小尺寸，可集成到大量 OEM 应用中。 


  • 备有镀膜和无镀膜产品

  • 镀膜产品可用于反射 90° 光线

  • 无镀膜产品可用于弯曲图像路径


                           产品

标题产品编码涂层Dia. (mm)基底长度 (mm)表面质量类型角度容差（弧分）倒角长度容差 (mm)注意
直径1mm 45° 柱狀反射镜 镀铝膜47-628Protected Aluminum (400-700nm) 1.00 +0.00/-0.05N-BK7 2.00 40-20 Rod Lens ±10 Protective bevel as needed ±0.1 Coating on Elliptical Surface
直径2mm 45° 柱狀反射镜 镀铝膜54-092Protected Aluminum (400-700nm) 2.00 +0.00/-0.05N-BK7 4.00 40-20 Rod Lens ±10 Protective bevel as needed ±0.1 Coating on Elliptical Surface
直径3mm 45° 柱狀反射镜 镀铝膜54-094Protected Aluminum (400-700nm) 3.00 +0.00/-0.05N-BK7 6.00 40-20 Rod Lens ±10 Protective bevel as needed ±0.1 Coating on Elliptical Surface
直径4mm 45° 柱狀反射镜 镀铝膜54-096Protected Aluminum (400-700nm) 4.00 +0.00/-0.05N-BK7 8.00 40-20 Rod Lens ±10 Protective bevel as needed ±0.1 Coating on Elliptical Surface
直径5mm 45° 柱狀反射镜 镀铝膜54-098Protected Aluminum (400-700nm) 5.00 +0.00/-0.05N-BK7 10.00 40-20 Rod Lens ±10 Protective bevel as needed ±0.1 Coating on Elliptical Surface
直径6mm，45° 柱狀反射镜 镀铝膜49-399Protected Aluminum (400-700nm) 6.00 +0.00/-0.05N-BK7 12.00 40-20 Rod Lens ±10 Protective bevel as needed ±0.1 Coating on Elliptical Surface
直径8mm，45° 柱狀反射镜 镀铝膜49-400Protected Aluminum (400-700nm) 8.00 +0.00/-0.05N-BK7 16.00 40-20 Rod Lens ±10 Protective bevel as needed ±0.1 Coating on Elliptical Surface
直径10mm  45° 柱狀反射镜 镀铝膜45-944Protected Aluminum (400-700nm) 10.00 +0.00/-0.05N-BK7 15.00 40-20 Rod Lens ±10 Protective bevel as needed ±0.1 Coating on Elliptical Surface
直径12mm  45° 柱狀反射镜 镀铝膜45-945Protected Aluminum (400-700nm) 12.00 +0.00/-0.05N-BK7 20.00 40-20 Rod Lens ±10 Protective bevel as needed ±0.1 Coating on Elliptical Surface
直径15mm直径，45° 柱狀反射镜 镀铝膜49-401Protected Aluminum (400-700nm) 15.00 +0.00/-0.05N-BK7 30.00 40-20 Rod Lens ±10 Protective bevel as needed ±0.1 Coating on Elliptical Surface
