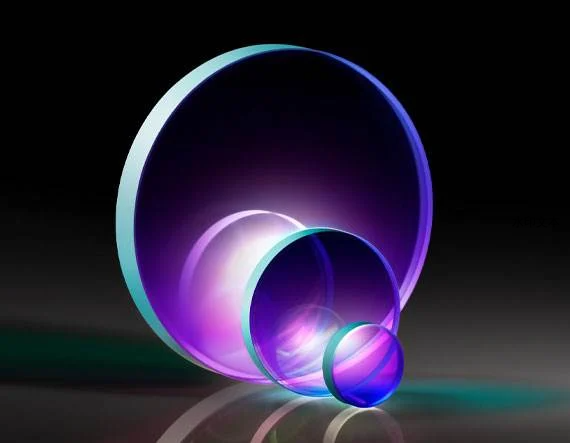

双波段激光反射镜

双波段激光反射镜

￥ 0.00
0.00


TECHSPEC® 双波段激光谱线反射镜具有高反射率、优良的表面质量和精密的表面平整度，可将散射效应降至最低。每一种镀膜设计都经过测试，可确保与脉冲激光系统兼容的高激光损伤阈值。这些熔融石英基底激光反射镜具有良好的热稳定性，并有各种标准尺寸可供选择。 TECHSPEC® 双波段激光谱线镜是实验室和OEM激光系统中光束转向应用的理想选择。这些反射镜有 532/1064nm、635-670/1064nm 和 800/1030nm 双波段镀膜可供选择，用于Nd:YAG激光器和红、绿导光管。


  • 在设计波长下的反射率>99%

  • 10-5 的表面质量适用于敏感激光应用

  • 532/1064Nm 、635-670/1064nm 或 800/1030nm 波长波段

  • 另有 TECHSPEC® Nd:YAG 激光谱线反射镜 可选


                         产品

标题产品编码表面质量类型平行度（弧分）CA (%)后表面DWL时的反射 (%) 涂层规格表面平整度 (P-V)镀膜类型涂层
12.5mm Dia. x 3mm 532/1064nm, Dual Band Laser Mirror20-37110-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 532 & 1064nm λ/10 Dielectric Laser Mirror (532, 1064nm)
MIRROR LASER 1064NM & 532NM 12.5MM47-97610-5 Laser Mirror <3 >90 Ground 99.5 Rabs >99.5% @ 532 & 1064nm λ/10 Dielectric Laser Mirror (532, 1064nm)
12.7mm Dia. x 6.35mm 532/1064nm, 0-45° AOI, Dual Band Laser Mirror28-97410-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 532 & 1064nm λ/10 Dielectric Laser Mirror (532, 1064nm)
25mm Dia. x 3mm 532/1064nm, Dual Band Laser Mirror20-21610-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 532 & 1064nm λ/10 Dielectric Laser Mirror (532, 1064nm)
MIRROR LASER 1064NM & 532NM 25MM47-97710-5 Laser Mirror <3 >90 Ground 99.5 Rabs >99.5% @ 532 & 1064nm λ/10 Dielectric Laser Mirror (532, 1064nm)
25.4mm Dia. x 6.35mm 532/1064nm, 0-45° AOI, Dual Band Laser Mirror28-97510-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 532 & 1064nm λ/10 Dielectric Laser Mirror (532, 1064nm)
MIRROR LASER 1064NM & 532NM 50MM63-11810-5 Laser Mirror <3 >90 Ground 99.5 Rabs >99.5% @ 532 & 1064nm λ/10 Dielectric Laser Mirror (532, 1064nm)
50.8mm Dia. x 9.53mm 532/1064nm, 0-45° AOI, Dual Band Laser Mirror28-97610-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 532 & 1064nm λ/10 Dielectric Laser Mirror (532, 1064nm)
76.2mm Dia. x 12.70mm 532/1064nm, Dual Band Laser Mirror27-03710-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 532 & 1064nm λ/10 Dielectric Laser Mirror (532, 1064nm)
50.8mm Dia. x 6.35mm 532nm/1064nm, Dual Band Laser Mirror20-61210-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 532 & 1064nm λ/10 Dielectric Laser Mirror (532, 1064nm)
12.7mm Dia. x 6.35mm 532/630-655/1064nm, Dual Band Laser Mirror26-92610-5 Laser Mirror <3 >90 Commercial Polish 99.5 Ravg ≥99.50% @ 532nm & 1064nm @ 45° AOI  Ravg ≥80% @ 630 – 655nm @ 45° AOI λ/10 Dielectric Laser Mirror (532, 635, 650, 1064nm)
12.7mm Dia. x 6.35mm 532/630-655/1064nm, 0-45° AOI, Dual Band Laser Mirror28-98010-5 Laser Mirror <3 >90 Commercial Polished 99.5 Ravg ≥ 99.50% @ 532nm & 1064nm @ 0-45° AOI   Ravg ≥ 80% @ 630 – 655nm @ 0-45° AOI λ/10 Dielectric Laser Mirror (532, 635, 650, 1064nm)
25.4mm Dia. x 6.35mm 532/630-655/1064nm, Dual Band Laser Mirror26-92710-5 Laser Mirror <3 >90 Commercial Polish 99.5 Ravg ≥99.50% @ 532nm & 1064nm @ 45° AOI  Ravg ≥80% @ 630 – 655nm @ 45° AOI λ/10 Dielectric Laser Mirror (532, 635, 650, 1064nm)
25.4mm Dia. x 6.35mm 532/630-655/1064nm, 0-45° AOI, Dual Band Laser Mirror28-98110-5 Laser Mirror <3 >90 Commercial Polished 99.5 Ravg ≥ 99.50% @ 532nm & 1064nm @ 0-45° AOI   Ravg ≥ 80% @ 630 – 655nm @ 0-45° AOI λ/10 Dielectric Laser Mirror (532, 635, 650, 1064nm)
50.8mm Dia. x 9.53mm 532/630-655/1064nm, Dual Band Laser Mirror26-92810-5 Laser Mirror <3 >90 Commercial Polish 99.5 Ravg ≥99.50% @ 532nm & 1064nm @ 45° AOI  Ravg ≥80% @ 630 – 655nm @ 45° AOI λ/10 Dielectric Laser Mirror (532, 635, 650, 1064nm)
50.8mm Dia. x 9.53mm 532/630-655/1064nm, 0-45° AOI, Dual Band Laser Mirror28-98210-5 Laser Mirror <3 >90 Commercial Polished 99.5 Ravg ≥ 99.50% @ 532nm & 1064nm @ 0-45° AOI   Ravg ≥ 80% @ 630 – 655nm @ 0-45° AOI λ/10 Dielectric Laser Mirror (532, 635, 650, 1064nm)
12.5mm Dia. x 3mm 635-670/1064nm, Dual Band Laser Mirror20-39910-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 635, 670 & 1064nm λ/10 Dielectric Laser Mirror (635, 670, 1064nm)
MIRROR 1064NM & 635/670NM 12.5MM47-97810-5 Laser Mirror <3 >90 Ground 99.5 Rabs >99.5% @ 635, 670 & 1064nm λ/10 Dielectric Laser Mirror (635, 670, 1064nm)
12.7mm Dia. x 6.35mm 635-670/1064nm, 0-45° AOI, Dual Band Laser Mirror28-97710-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 635, 670 & 1064nm λ/10 Dielectric Laser Mirror (635, 670, 1064nm)
25mm Dia. x 3mm 635-670/1064nm, Dual Band Laser Mirror20-59910-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 635, 670 & 1064nm λ/10 Dielectric Laser Mirror (635, 670, 1064nm)
MIRROR 1064NM & 635/670NM 25MM47-97910-5 Laser Mirror <3 >90 Ground 99.5 Rabs >99.5% @ 635, 670 & 1064nm λ/10 Dielectric Laser Mirror (635, 670, 1064nm)
25.4mm Dia. x 6.35mm 635-670/1064nm, 0-45° AOI, Dual Band Laser Mirror28-97810-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 635, 670 & 1064nm λ/10 Dielectric Laser Mirror (635, 670, 1064nm)
MIRROR 1064NM & 635/670NM 50MM63-11910-5 Laser Mirror <3 >90 Ground 99.5 Rabs >99.5% @ 635, 670 & 1064nm λ/10 Dielectric Laser Mirror (635, 670, 1064nm)
50.8mm Dia. x 6.35mm 635-670/1064nm, Dual Band Laser Mirror20-60710-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 635, 670 & 1064nm λ/10 Dielectric Laser Mirror (635, 670, 1064nm)
50.8mm Dia. x 9.53mm 635-670/1064nm, 0-45° AOI, Dual Band Laser Mirror28-97910-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 635, 670 & 1064nm λ/10 Dielectric Laser Mirror (635, 670, 1064nm)
76.2mm Dia. x 12.70mm 635-670/1064nm, Dual Band Laser Mirror27-03810-5 Laser Mirror <3 >90 Commercial Polished 99.5 Rabs >99.5% @ 635, 670 & 1064nm λ/10 Dielectric Laser Mirror (635, 670, 1064nm)
12.7mm Dia. x 6.35mm 800/1030nm, Dual Band Laser Mirror28-96510-5 Laser Mirror <3 >90 Commercial Polished 99.9 Ravg S & P ≥ 99.90% @ 800nm & 1030nm @ 45° AOI Ravg ≥ 99.6% @ 760 –840nm @ 45° AOI Ravg ≥ 99.6% @ 980 –1080nm @ 45° AOI λ/10 Dielectric Laser Mirror (800, 1030nm)
12.7mm Dia. x 6.35mm 800/1030nm, 0-45° AOI, Dual Band Laser Mirror28-96810-5 Laser Mirror <3 >90 Commercial Polished 99.9 Ravg S & P ≥ 99.90% @ 800nm & 1030nm @ 0-45° AOI Ravg ≥ 99.6% @ 780 –820nm @ 0-45° AOI Ravg ≥ 99.6% @ 1010 –1050nm @ 0-45° AOI λ/10 Dielectric Laser Mirror (800, 1030nm)
25.4mm Dia. x 6.35mm 800/1030nm, Dual Band Laser Mirror28-96610-5 Laser Mirror <3 >90 Commercial Polished 99.9 Ravg S & P ≥ 99.90% @ 800nm & 1030nm @ 45° AOI Ravg ≥ 99.6% @ 760 –840nm @ 45° AOI Ravg ≥ 99.6% @ 980 –1080nm @ 45° AOI λ/10 Dielectric Laser Mirror (800, 1030nm)
25.4mm Dia. x 6.35mm 800/1030nm, 0-45° AOI, Dual Band Laser Mirror28-96910-5 Laser Mirror <3 >90 Commercial Polished 99.9 Ravg S & P ≥ 99.90% @ 800nm & 1030nm @ 0-45° AOI Ravg ≥ 99.6% @ 780 –820nm @ 0-45° AOI Ravg ≥ 99.6% @ 1010 –1050nm @ 0-45° AOI λ/10 Dielectric Laser Mirror (800, 1030nm)
50.8mm Dia. x 9.53mm 800/1030nm, Dual Band Laser Mirror28-96710-5 Laser Mirror <3 >90 Commercial Polished 99.9 Ravg S & P ≥ 99.90% @ 800nm & 1030nm @ 45° AOI Ravg ≥ 99.6% @ 760 –840nm @ 45° AOI Ravg ≥ 99.6% @ 980 –1080nm @ 45° AOI λ/10 Dielectric Laser Mirror (800, 1030nm)
50.8mm Dia. x 9.53mm 800/1030nm, 0-45° AOI, Dual Band Laser Mirror28-97010-5 Laser Mirror <3 >90 Commercial Polished 99.9 Ravg S & P ≥ 99.90% @ 800nm & 1030nm @ 0-45° AOI Ravg ≥ 99.6% @ 780 –820nm @ 0-45° AOI Ravg ≥ 99.6% @ 1010 –1050nm @ 0-45° AOI λ/10 Dielectric Laser Mirror (800, 1030nm)
