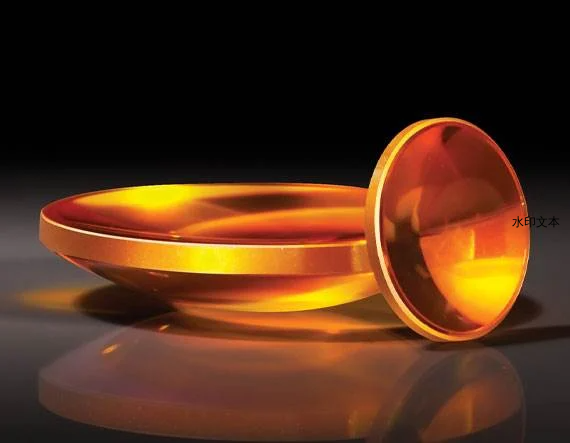

硒化锌（ZnSe）非球面透镜

硒化锌（ZnSe）非球面透镜

￥ 0.00
0.00


TECHSPEC® 硒化锌 (ZnSe) 非球面透镜的设计旨在为 10.6µm CO2 激光器提供衍射极限的聚焦性能。这些透镜由 Coherent® 红外硒化锌材料制成，在 10.6µm 波长上的体吸收系数为 <0.0005 cm-1，并具备无镀膜或宽带抗反射镀膜选项，在 8 - 12µm 范围内可提供极佳的透射率。其精密设计使其成为集成到激光系统，热成像组件和 FTIR 器件的理想选择。TECHSPEC® 硒化锌非球面透镜在 10.6µm 波长上的不规则性为 <λ/20，表面质量为 40-20，表面粗糙度 <50Å。


  • 由爱特蒙特光学设计，Coherent® 材料制成

  • 优质等级的硒化锌材料

  • 可提供无镀膜或宽带 8-12µm 抗反射镀膜选项

                            产品

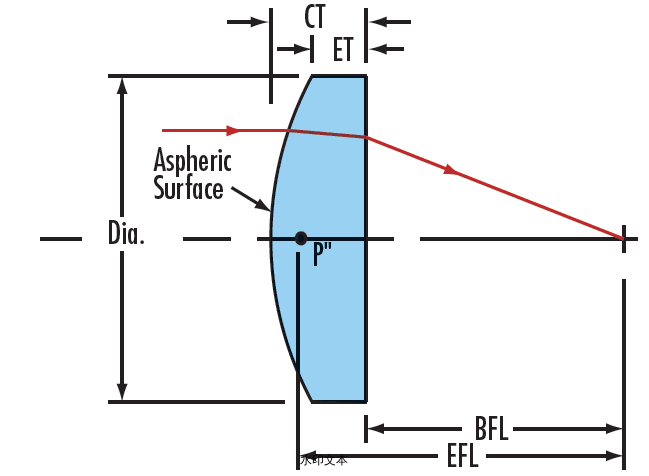

标题产品编码Dia. (mm)EFL (mm)NABFL (mm)基底Asphere Figure Error涂层涂层规格中心偏（弧分）Centering, ETD (μm)
12.7mm Dia. x 6.35mm FL, Uncoated, ZnSe Aspheric Lens39-46912.70 +0.00/-0.106.35 1.00 4.69 Coherent® Infrared ZnSe λ/2 Uncoated
≤20 ≤50.8
12.7mm Dia. x 12.7mm FL, Uncoated, ZnSe Aspheric Lens39-47012.70 +0.00/-0.1012.70 0.50 11.25 Coherent® Infrared ZnSe λ/2 Uncoated
≤20 ≤50.8
25.4mm Dia. x 12.7mm FL, Uncoated, ZnSe Aspheric Lens39-47125.40 +0.00/-0.1012.70 1.00 10.21 Coherent® Infrared ZnSe λ/2 Uncoated
≤3 ≤12.7
25.4mm Dia. x 15.0mm FL, Uncoated, ZnSe Aspheric Lens39-47225.40 +0.00/-0.1015.00 0.85 12.71 Coherent® Infrared ZnSe λ/2 Uncoated
≤3 ≤12.7
25.4mm Dia. x 20.0mm FL, Uncoated, ZnSe Aspheric Lens39-47625.40 +0.00/-0.1020.00 0.64 17.92 Coherent® Infrared ZnSe λ/2 Uncoated
≤3 ≤12.7
25.4mm Dia. x 25.4mm FL, Uncoated, ZnSe Aspheric Lens39-47725.40 +0.00/-0.1025.40 0.50 23.53 Coherent® Infrared ZnSe λ/2 Uncoated
≤3 ≤12.7
25.4mm Dia. x 50.8mm FL, Uncoated, ZnSe Aspheric Lens39-49525.40 +0.00/-0.1050.80 0.25 49.35 Coherent® Infrared ZnSe λ/2 Uncoated
≤3 ≤12.7
50.8mm Dia. x 50.8mm FL, Uncoated, ZnSe Aspheric Lens39-49650.80 +0.00/-0.1050.80 0.50 48.10 Coherent® Infrared ZnSe λ/2 Uncoated
≤3 ≤12.7
12.7mm Dia. x 6.35mm FL, 8-12µm AR Coated, ZnSe Aspheric Lens39-50412.70 +0.00/-0.106.35 1.00 4.69 Coherent® Infrared ZnSe λ/2 BBAR (8000-12000nm) Ravg <0.5% @ 8 - 12μm ≤20 ≤50.8
12.7mm Dia. x 12.7mm FL, 8-12µm AR Coated, ZnSe Aspheric Lens39-50912.70 +0.00/-0.1012.70 0.50 11.25 Coherent® Infrared ZnSe λ/2 BBAR (8000-12000nm) Ravg <0.5% @ 8 - 12μm ≤20 ≤50.8
25.4mm Dia. x 12.7mm FL, 8-12µm AR Coated, ZnSe Aspheric Lens39-51025.40 +0.00/-0.1012.70 1.00 10.21 Coherent® Infrared ZnSe λ/2 BBAR (8000-12000nm) Ravg <0.5% @ 8 - 12μm ≤3 ≤12.7
25.4mm Dia. x 15.0mm FL, 8-12µm AR Coated, ZnSe Aspheric Lens39-51425.40 +0.00/-0.1015.00 0.85 12.71 Coherent® Infrared ZnSe λ/2 BBAR (8000-12000nm) Ravg <0.5% @ 8 - 12μm ≤3 ≤12.7
25.4mm Dia. x 20.0mm FL, 8-12µm AR Coated, ZnSe Aspheric Lens39-51525.40 +0.00/-0.1020.00 0.64 17.92 Coherent® Infrared ZnSe λ/2 BBAR (8000-12000nm) Ravg <0.5% @ 8 - 12μm ≤3 ≤12.7
25.4mm Dia. x 25.4mm FL, 8-12µm AR Coated, ZnSe Aspheric Lens39-51625.40 +0.00/-0.1025.40 0.50 23.53 Coherent® Infrared ZnSe λ/2 BBAR (8000-12000nm) Ravg <0.5% @ 8 - 12μm ≤3 ≤12.7
25.4mm Dia. x 50.8mm FL, 8-12µm AR Coated, ZnSe Aspheric Lens39-51725.40 +0.00/-0.1050.80 0.25 49.35 Coherent® Infrared ZnSe λ/2 BBAR (8000-12000nm) Ravg <0.5% @ 8 - 12μm ≤3 ≤12.7
50.8mm Dia. x 50.8mm FL, 8-12µm AR Coated, ZnSe Aspheric Lens39-51850.80 +0.00/-0.1050.80 0.50 48.10 Coherent® Infrared ZnSe λ/2 BBAR (8000-12000nm) Ravg <0.5% @ 8 - 12μm ≤3 ≤12.7
