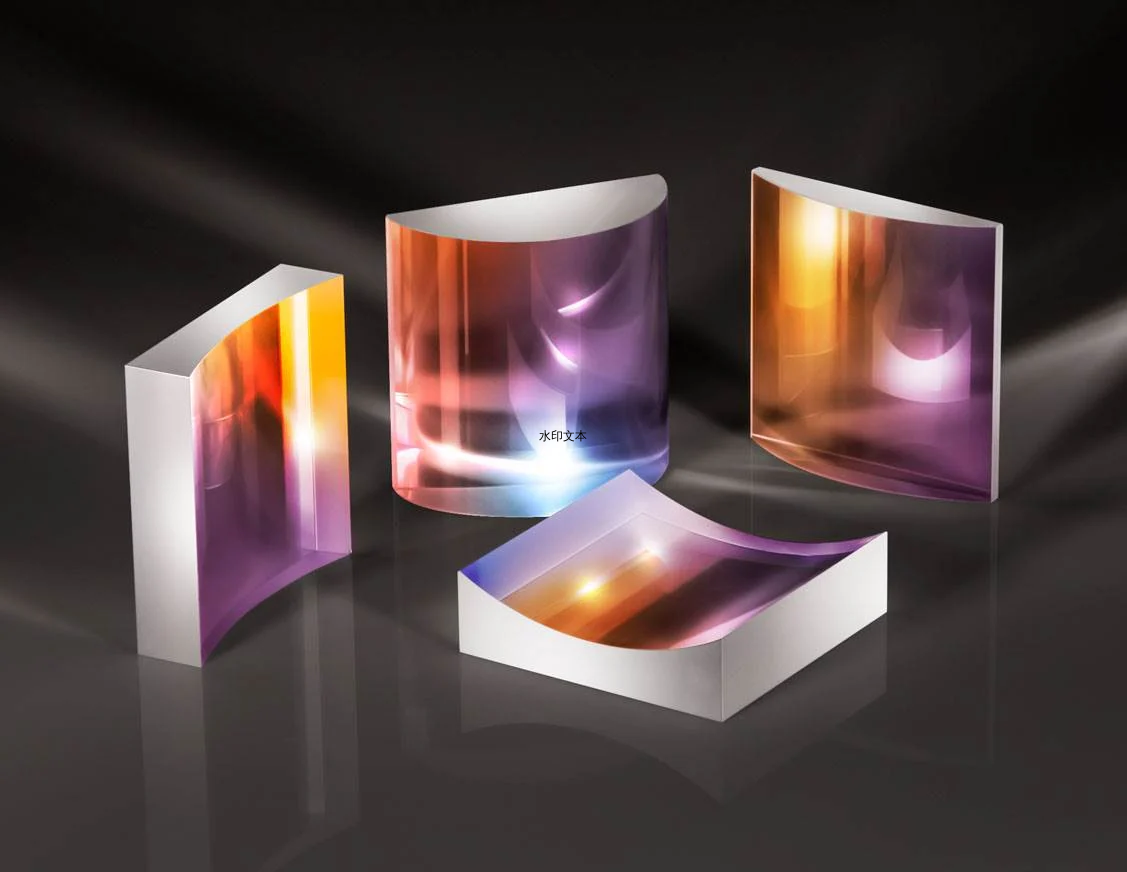

激光级宽带柱面透镜
￥ 0.00
0.00
TECHSPEC® 激光级宽带柱面透镜采用精密规格，适用于最严苛的应用。这些透镜的构造采用优质熔融石英光学玻璃，并针对激光应用量身打造，具有20-10的表面质量。我们的TECHSPEC®激光级宽带柱面透镜采用精密的楔形容差（通常在所有方向都小于3弧分）。采用方形可以方便固定，有助于集成这些透镜。
在UV至IR范围内提供卓越性能
采用熔融石英基底
具有激光光学表面质量
产品
| 标题 | 产品编码 | EFL (mm) | 基底 | 有效焦距/有效孔径直径比 | NA | 涂层 | 类型 | 波长范围 (nm) | BFL (mm) | 倒角 | CT (mm) |
| 12.7 x 12.7mm x 25mm FL, Uncoated Laser Grade PCX Cylinder Lens | 13-469 | 25.00 | Fused Silica (Corning 7980) | 2 | 0.25 | Uncoated | Cylinder Lens, Plano-Convex | 200 - 2200 | 22.94 | Protective bevel as needed | 3.00 |
| 柱面镜 正方形12.7mm 焦距50mm 不镀膜 | 36-089 | 50.00 | Fused Silica (Corning 7980) | 4.00 | 0.125 | Uncoated | Cylinder Lens, Plano-Convex | 200 - 2200 | 47.95 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 12.7 SQ X 50 FL UV VIS | 36-107 | 50.00 | Fused Silica (Corning 7980) | 4 | 0.125 | UV-VIS (250-700nm) | Cylinder Lens, Plano-Convex | 350 - 700 | 47.95 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 12.7 SQ X 50 FL VIS 0 | 36-098 | 50.00 | Fused Silica (Corning 7980) | 4 | 0.125 | VIS 0° (425-675nm) | Cylinder Lens, Plano-Convex | 425 - 675 | 47.95 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 12.7 SQ X 50 FL NIR I | 36-116 | 50.00 | Fused Silica (Corning 7980) | 4.00 | 0.125 | NIR I (600-1050nm) | Cylinder Lens, Plano-Convex | 600 - 1050 | 47.95 | Protective bevel as needed | 3.00 |
| 12.7 x 12.7mm x -25mm FL, Uncoated Laser Grade PCV Cylinder Lens | 13-468 | -25.00 | Fused Silica (Corning 7980) | 2 | 0.25 | Uncoated | Cylinder Lens, Plano-Concave | 200 - 2200 | -27.06 | Protective bevel as needed | 3.00 |
| 柱面镜 正方形12.7mm 焦距-50mm 不镀膜 | 36-094 | -50.00 | Fused Silica (Corning 7980) | 1.00 | 0.50 | Uncoated | Cylinder Lens, Plano-Concave | 200 - 2200 | -52.06 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 12.7 SQ X -50 FL UV VIS | 36-112 | -50.00 | Fused Silica (Corning 7980) | 1.00 | 0.50 | UV-VIS (250-700nm) | Cylinder Lens, Plano-Concave | 350 - 700 | -52.06 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 12.7 SQ X -50 FL VIS 0 | 36-103 | -50.00 | Fused Silica (Corning 7980) | 1.00 | 0.50 | VIS 0° (425-675nm) | Cylinder Lens, Plano-Concave | 425 - 675 | -52.06 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 12.7 SQ X -50 FL NIR I | 36-122 | -50.00 | Fused Silica (Corning 7980) | 1.00 | 0.50 | NIR I (600-1050nm) | Cylinder Lens, Plano-Concave | 600 - 1050 | -52.06 | Protective bevel as needed | 3.00 |
| 12.7 x 12.7mm x 150mm FL, Uncoated Laser Grade PCX Cylinder Lens | 13-471 | 150.00 | Fused Silica (Corning 7980) | 12 | 0.04 | Uncoated | Cylinder Lens, Plano-Convex | 200 - 2200 | 147.94 | Protective bevel as needed | 3.00 |
| 柱面镜 正方形25.4mm 焦距50mm 不镀膜 | 36-090 | 50.00 | Fused Silica (Corning 7980) | 2.00 | 0.17 | Uncoated | Cylinder Lens, Plano-Convex | 200 - 2200 | 46.58 | Protective bevel as needed | 5.00 |
| LENS CYL SHAPING 25.4 SQ X 50 FL UV VIS | 36-108 | 50.00 | Fused Silica (Corning 7980) | 2.00 | 0.17 | UV-VIS (250-700nm) | Cylinder Lens, Plano-Convex | 350 - 700 | 46.58 | Protective bevel as needed | 5.00 |
| LENS CYL SHAPING 25.4 SQ X 50 FL VIS 0 | 36-099 | 50.00 | Fused Silica (Corning 7980) | 2.00 | 0.17 | VIS 0° (425-675nm) | Cylinder Lens, Plano-Convex | 425 - 675 | 46.58 | Protective bevel as needed | 5.00 |
| LENS CYL SHAPING 25.4 SQ X 50 FL NIR I | 36-117 | 50.00 | Fused Silica (Corning 7980) | 2.00 | 0.17 | NIR I (600-1050nm) | Cylinder Lens, Plano-Convex | 600 - 1050 | 46.58 | Protective bevel as needed | 5.00 |
| 柱面镜 正方形25.4mm 焦距-50mm 不镀膜 | 36-095 | -50.00 | Fused Silica (Corning 7980) | 2.00 | 0.25 | Uncoated | Cylinder Lens, Plano-Concave | 200 - 2200 | -52.06 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 25.4 SQ X -50 FL UV VIS | 36-113 | -50.00 | Fused Silica (Corning 7980) | 2.00 | 0.25 | UV-VIS (250-700nm) | Cylinder Lens, Plano-Concave | 350 - 700 | -52.06 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 25.4 SQ X -50 FL VIS 0 | 36-104 | -50.00 | Fused Silica (Corning 7980) | 2.00 | 0.25 | VIS 0° (425-675nm) | Cylinder Lens, Plano-Concave | 425 - 675 | -52.06 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 25.4 SQ X -50 FL NIR I | 36-123 | -50.00 | Fused Silica (Corning 7980) | 2.00 | 0.25 | NIR I (600-1050nm) | Cylinder Lens, Plano-Concave | 600 - 1050 | -52.06 | Protective bevel as needed | 3.00 |
| 柱面镜 正方形25.4mm 焦距 75mm 不镀膜 | 36-091 | 75.00 | Fused Silica (Corning 7980) | 3.00 | 0.13 | Uncoated | Cylinder Lens, Plano-Convex | 200 - 2200 | 72.26 | Protective bevel as needed | 4.00 |
| LENS CYL SHAPING 25.4 SQ X 75 FL UV VIS | 36-109 | 75.00 | Fused Silica (Corning 7980) | 3.00 | 0.13 | UV-VIS (250-700nm) | Cylinder Lens, Plano-Convex | 350 - 700 | 72.26 | Protective bevel as needed | 4.00 |
| LENS CYL SHAPING 25.4 SQ X 75 FL VIS 0 | 36-100 | 75.00 | Fused Silica (Corning 7980) | 3.00 | 0.13 | VIS 0° (425-675nm) | Cylinder Lens, Plano-Convex | 425 - 675 | 72.26 | Protective bevel as needed | 4.00 |
| LENS CYL SHAPING 25.4 SQ X 75 FL NIR I | 36-118 | 75.00 | Fused Silica (Corning 7980) | 3.00 | 0.13 | NIR I (600-1050nm) | Cylinder Lens, Plano-Convex | 600 - 1050 | 72.26 | Protective bevel as needed | 4.00 |
| 柱面镜 正方形25.4mm 焦距-75mm 不镀膜 | 36-096 | -75.00 | Fused Silica (Corning 7980) | 3.00 | 0.17 | Uncoated | Cylinder Lens, Plano-Concave | 200 - 2200 | -77.06 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 25.4 SQ X -75 FL UV VIS | 36-114 | -75.00 | Fused Silica (Corning 7980) | 3.00 | 0.17 | UV-VIS (250-700nm) | Cylinder Lens, Plano-Concave | 350 - 700 | -77.06 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 25.4 SQ X -75 FL VIS 0 | 36-105 | -75.00 | Fused Silica (Corning 7980) | 3.00 | 0.17 | VIS 0° (425-675nm) | Cylinder Lens, Plano-Concave | 425 - 675 | -77.06 | Protective bevel as needed | 3.00 |
| LENS CYL SHAPING 25.4 SQ X -75 FL NIR I | 36-129 | -75.00 | Fused Silica (Corning 7980) | 3.00 | 0.17 | NIR I (600-1050nm) | Cylinder Lens, Plano-Concave | 600 - 1050 | -77.06 | Protective bevel as needed | 3.00 |
| 柱面镜 正方形25.4mm 焦距100mm 不镀膜 | 36-092 | 100.00 | Fused Silica (Corning 7980) | 4.00 | 0.08 | Uncoated | Cylinder Lens, Plano-Convex | 200 - 2200 | 97.39 | Protective bevel as needed | 3.80 |
| LENS CYL SHAPING 25.4 SQ X 100 FL UV VIS | 36-110 | 100.00 | Fused Silica (Corning 7980) | 4.00 | 0.08 | UV-VIS (250-700nm) | Cylinder Lens, Plano-Convex | 350 - 700 | 97.39 | Protective bevel as needed | 3.80 |
| LENS CYL SHAPING 25.4 SQ X 100 FL VIS 0 | 36-101 | 100.00 | Fused Silica (Corning 7980) | 4.00 | 0.08 | VIS 0° (425-675nm) | Cylinder Lens, Plano-Convex | 425 - 675 | 97.39 | Protective bevel as needed | 3.80 |
| LENS CYL SHAPING 25.4 SQ X 100 FL NIR I | 36-119 | 100.00 | Fused Silica (Corning 7980) | 4.00 | 0.08 | NIR I (600-1050nm) | Cylinder Lens, Plano-Convex | 600 - 1050 | 97.39 | Protective bevel as needed | 3.80 |
