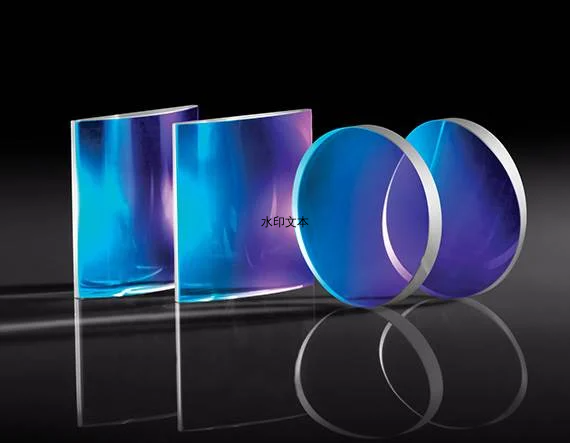

成像级 PCX 柱面透镜

成像级 PCX 柱面透镜

￥ 0.00
0.00


TECHSPEC®成像级 PCX 柱面透镜不仅拥有严格控制的公差，还提供适用于批量集成的批量定价。与能在两个维度上聚焦光的球面透镜不同，柱面透镜只能在一个维度上聚焦光束。可选适用于激光应用的增透膜，从而最大限度地减少杂散光，并最大限度地提高系统的光通量。 我们的TECHSPEC成像级 PCX 柱面透镜拥有严格控制的几何特性，以确保从设计到制造始终保持其高性能。 典型应用包括将激光二极管椭圆光束变圆，形成片光用于测量系统，或将激光线投射到表面上。


  • 非常适用于光束整形应用

  • 严格控制的光学公差和几何公差

  • 可选矩形和圆形尺寸

                         产品

标题产品编码Dia. (mm)EFL (mm)基底有效焦距/有效孔径直径比NA涂层类型波长范围 (nm)BFL (mm)倒角
直径12.7毫米 x 焦距50mm 平凸柱面镜34-60612.70 +0.0/-0.02550.00 N-BK7 6.00 0.13 Uncoated Cylinder Lens, Plano-Convex 350 - 2200 48.75 Protective bevel as needed
直径12.7毫米 x 焦距75mm 平凸柱面镜34-60712.70 +0.0/-0.02575.00 N-BK7 4.00 0.08 Uncoated Cylinder Lens, Plano-Convex 350 - 2200 73.68 Protective bevel as needed
直径12.7毫米 x 焦距100mm 平凸柱面镜34-60812.70 +0.0/-0.025100.00 N-BK7 6.00 0.06 Uncoated Cylinder Lens, Plano-Convex 350 - 2200 98.68 Protective bevel as needed
LENS CYL SHP 12.7 DIA X 50 FL  VIS 034-64812.70 +0.0/-0.02550.00 N-BK7 2.00 0.13 VIS 0° (425-675nm) Cylinder Lens, Plano-Convex 425 - 675 48.75 Protective bevel as needed
LENS CYL SHP 12.7 DIA X 75 FL  VIS 034-64912.70 +0.0/-0.02575.00 N-BK7 4.00 0.08 VIS 0° (425-675nm) Cylinder Lens, Plano-Convex 425 - 675 73.68 Protective bevel as needed
LENS CYL SHP 12.7 DIA X 100 FL  VIS 034-65012.70 +0.0/-0.025100.00 N-BK7 6.00 0.06 VIS 0° (425-675nm) Cylinder Lens, Plano-Convex 425 - 675 98.68 Protective bevel as needed
LENS CYL SHP 12.7 DIA X 50 FL  NIR I34-66812.70 +0.0/-0.02550.00 N-BK7 2.00 0.13 NIR I (600-1050nm) Cylinder Lens, Plano-Convex 600 - 1050 48.75 Protective bevel as needed
LENS CYL SHP 12.7 DIA X 75 FL  NIR I34-66912.70 +0.0/-0.02575.00 N-BK7 4.00 0.08 NIR I (600-1050nm) Cylinder Lens, Plano-Convex 600 - 1050 73.68 Protective bevel as needed
LENS CYL SHP 12.7 DIA X 100 FL  NIR I34-67012.70 +0.0/-0.025100.00 N-BK7 6.00 0.06 NIR I (600-1050nm) Cylinder Lens, Plano-Convex 600 - 1050 98.68 Protective bevel as needed
LENS CYL SHP 12.7 DIA X 50 FL  NIR II34-62712.70 +0.0/-0.02550.00 N-BK7 2.00 0.13 NIR II (750-1550nm) Cylinder Lens, Plano-Convex 750 - 1550 48.75 Protective bevel as needed
LENS CYL SHP 12.7 DIA X 75 FL  NIR II34-62812.70 +0.0/-0.02575.00 N-BK7 4.00 0.08 NIR II (750-1550nm) Cylinder Lens, Plano-Convex 750 - 1550 73.68 Protective bevel as needed
LENS CYL SHP 12.7 DIA X 100 FL  NIR II34-62912.70 +0.0/-0.025100.00 N-BK7 6.00 0.06 NIR II (750-1550nm) Cylinder Lens, Plano-Convex 750 - 1550 98.68 Protective bevel as needed
直径25.4毫米 x 焦距50mm 平凸柱面镜34-61125.40 +0.0/-0.02550.00 N-BK7 2.00 0.25 Uncoated Cylinder Lens, Plano-Convex 350 - 2200 47.14 Protective bevel as needed
直径25.4毫米 x 焦距75mm 平凸柱面镜34-61225.40 +0.0/-0.02575.00 N-BK7 3.00 0.17 Uncoated Cylinder Lens, Plano-Convex 350 - 2200 72.93 Protective bevel as needed
直径25.4毫米 x 焦距100mm 平凸柱面镜34-61325.40 +0.0/-0.025100.00 N-BK7 4.00 0.13 Uncoated Cylinder Lens, Plano-Convex 350 - 2200 97.92 Protective bevel as needed
直径25.4毫米 x 焦距150mm 平凸柱面镜34-61425.40 +0.0/-0.025150.00 N-BK7 6.00 0.08 Uncoated Cylinder Lens, Plano-Convex 350 - 2200 147.69 Protective bevel as needed
25.4mm Dia x 50mm FL PCX Cyl Lens NIR II34-63125.40 +0.0/-0.02550.00 N-BK7 2.00 0.25 NIR II (750-1550nm) Cylinder Lens, Plano-Convex 750 - 1550 47.14 Protective bevel as needed
25.4mm Dia x 75mm FL PCX Cyl Lens NIR II34-63225.40 +0.0/-0.02575.00 N-BK7 3.00 0.17 NIR II (750-1550nm) Cylinder Lens, Plano-Convex 750 - 1550 72.93 Protective bevel as needed
25.4mm Dia x 100mm FL PCXCyl Lens NIR II34-63325.40 +0.0/-0.025100.00 N-BK7 4.00 0.13 NIR II (750-1550nm) Cylinder Lens, Plano-Convex 750 - 1550 97.92 Protective bevel as needed
25.4mm Dia x 150mm FL PCXCyl Lens NIR II34-63425.40 +0.0/-0.025150.00 N-BK7 6.00 0.08 NIR II (750-1550nm) Cylinder Lens, Plano-Convex 750 - 1550 147.69 Protective bevel as needed
25.4mm Dia x 50mm FL PCX Cyl Lens VIS 034-65225.40 +0.0/-0.02550.00 N-BK7 2.00 0.25 VIS 0° (425-675nm) Cylinder Lens, Plano-Convex 425 - 675 47.14 Protective bevel as needed
25.4mm Dia x 75mm FL PCX Cyl Lens VIS 034-65325.40 +0.0/-0.02575.00 N-BK7 3.00 0.17 VIS 0° (425-675nm) Cylinder Lens, Plano-Convex 425 - 675 72.93 Protective bevel as needed
25.4mm Dia x 100mm FL PCX Cyl Lens VIS 034-65425.40 +0.0/-0.025100.00 N-BK7 4.00 0.13 VIS 0° (425-675nm) Cylinder Lens, Plano-Convex 425 - 675 97.92 Protective bevel as needed
25.4mm Dia x 150mm FL PCX Cyl Lens VIS 034-65525.40 +0.0/-0.025150.00 N-BK7 6.00 0.08 VIS 0° (425-675nm) Cylinder Lens, Plano-Convex 425 - 675 147.69 Protective bevel as needed
25.4mm Dia x 50mm FL PCX Cyl Lens NIR I34-67225.40 +0.0/-0.02550.00 N-BK7 2.00 0.25 NIR I (600-1050nm) Cylinder Lens, Plano-Convex 600 - 1050 47.14 Protective bevel as needed
25.4mm Dia x 75mm FL PCX Cyl Lens NIR I34-67325.40 +0.0/-0.02575.00 N-BK7 3.00 0.17 NIR I (600-1050nm) Cylinder Lens, Plano-Convex 600 - 1050 72.93 Protective bevel as needed
25.4mm Dia x 100mm FL PCX Cyl Lens NIR I34-67425.40 +0.0/-0.025100.00 N-BK7 4.00 0.13 NIR I (600-1050nm) Cylinder Lens, Plano-Convex 600 - 1050 97.92 Protective bevel as needed
25.4mm Dia x 150mm FL PCX Cyl Lens NIR I34-67525.40 +0.0/-0.025150.00 N-BK7 6.00 0.08 NIR I (600-1050nm) Cylinder Lens, Plano-Convex 600 - 1050 147.69 Protective bevel as needed
正方形12.7 x 12.7mm x焦距 50mm 平凸柱面镜34-752
50.00 N-BK7 8.00 0.13 Uncoated Cylinder Lens, Plano-Convex 350 - 2200 48.68 Protective bevel as needed
LENS CYL SHP 12.7 SQ X 50 FL  VIS 034-986
50.00 N-BK7 8.00 0.13 VIS 0° (425-675nm) Cylinder Lens, Plano-Convex 425 - 675 48.68 Protective bevel as needed
LENS CYL SHP 12.7 SQ X 50 FL  NIR I34-998
50.00 N-BK7 8.00 0.13 NIR I (600-1050nm) Cylinder Lens, Plano-Convex 600 - 1050 48.68 Protective bevel as needed
LENS CYL SHP 12.7 SQ X 50 FL  NIR II35-010
50.00 N-BK7 8.00 0.13 NIR II (750-1550nm) Cylinder Lens, Plano-Convex 750 - 1550 48.68 Protective bevel as needed
正方形25.4 x 25.4mm  x焦距 25mm 平凸柱面镜34-753
25.00 N-BK7 1.00 0.50 Uncoated Cylinder Lens, Plano-Convex 350 - 2200 17.39 Protective bevel as needed
正方形25.4 x 25.4mm  x焦距 50mm 平凸柱面镜34-754
50.00 N-BK7 2.00 0.25 Uncoated Cylinder Lens, Plano-Convex 350 - 2200 47.14 Protective bevel as needed
正方形25.4 x 25.4mm  x焦距 75mm 平凸柱面镜34-755
75.00 N-BK7 3.00 0.17 Uncoated Cylinder Lens, Plano-Convex 350 - 2200 72.93 Protective bevel as needed
25.4mm Sq x 25mm FL PCX Cyl Lens VIS 034-987
25.00 N-BK7 1.00 0.50 VIS 0° (425-675nm) Cylinder Lens, Plano-Convex 425 - 675 17.39 Protective bevel as needed
25.4mm Sq x 50mm FL PCX Cyl Lens VIS 034-988
50.00 N-BK7 2.00 0.25 VIS 0° (425-675nm) Cylinder Lens, Plano-Convex 425 - 675 47.14 Protective bevel as needed
25.4mm Sq x 75mm FL PCX Cyl Lens VIS 034-989
75.00 N-BK7 3.00 0.17 VIS 0° (425-675nm) Cylinder Lens, Plano-Convex 425 - 675 72.93 Protective bevel as needed
25.4mm Sq x 25mm FL PCX Cyl Lens NIR I34-999
25.00 N-BK7 1.00 0.50 NIR I (600-1050nm) Cylinder Lens, Plano-Convex 600 - 1050 17.39 Protective bevel as needed
25.4mm Sq x 50mm FL PCX Cyl Lens NIR I35-000
50.00 N-BK7 2.00 0.25 NIR I (600-1050nm) Cylinder Lens, Plano-Convex 600 - 1050 47.14 Protective bevel as needed
25.4mm Sq x 75mm FL PCX Cyl Lens NIR I35-001
75.00 N-BK7 3.00 0.17 NIR I (600-1050nm) Cylinder Lens, Plano-Convex 600 - 1050 72.93 Protective bevel as needed
25.4mm Sq x 25mm FL PCXCyl Lens NIR II35-011
25.00 N-BK7 1.00 0.50 NIR II (750-1550nm) Cylinder Lens, Plano-Convex 750 - 1550 17.39 Protective bevel as needed
25.4mm Sq x 50mm FL PCXCyl Lens NIR II35-012
50.00 N-BK7 2.00 0.25 NIR II (750-1550nm) Cylinder Lens, Plano-Convex 750 - 1550 47.14 Protective bevel as needed
25.4mm Sq x 75mm FL PCXCyl Lens NIR II35-013
75.00 N-BK7 3.00 0.17 NIR II (750-1550nm) Cylinder Lens, Plano-Convex 750 - 1550 72.93 Protective bevel as needed
