非球面透镜
￥ 0.00
0.00

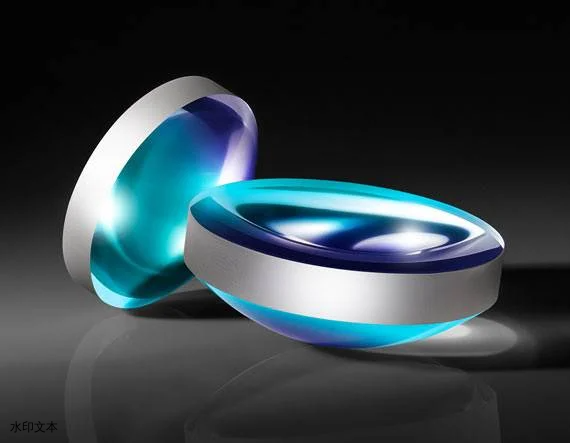

TECHSPEC®非球面透镜设计用于聚焦光线，同时消除高度扩散光源应用中的球面像差，其中的应用之一包括聚焦来自激光二极管的输出。非球面透镜能提高透镜的数值孔径，同时最大限度地减少系统像差。 非球面透镜也能减少多元件光学系统所需的元件数量。非球面透镜可以降低系统总重量，同时提供诸多优势，如简化装配及提高光通量。
直径从 10 至 200mm
焦距从 7.5 至 300mm
有宽带增透镀膜可选
产品
| 标题 | 产品编码 | Dia. (mm) | EFL (mm) | NA | BFL (mm) | 基底 | Aspheric DWL (nm) | Asphere Figure Error | 涂层 | 涂层规格 | 中心偏（弧分） | 表面质量 |
| 10mm直径，0.50数值孔径，镀可见光膜，非球面镜片 | 69-857 | 10.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.50 | 7.48 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 10mm直径，0.50数值孔径，镀近红外膜，非球面镜片 | 69-861 | 10.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.50 | 7.48 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 10mm直径，0.50数值孔径，未镀膜，非球面镜片 | 69-853 | 10.00 +0.0/-0.1 | 10.00 @ 587.6nm | 0.50 | 7.48 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 10mm直径，0.75数值孔径，镀可见光膜，非球面镜片 | 69-856 | 10.00 +0.0/-0.1 | 7.50 @ 587.6nm | 0.67 | 4.51 | N-SF5 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 10mm直径，0.75数值孔径，镀近红外膜，非球面镜片 | 69-860 | 10.00 +0.0/-0.1 | 7.50 @ 587.6nm | 0.67 | 4.51 | N-SF5 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 10mm直径，0.75数值孔径，未镀膜，非球面镜片 | 69-852 | 10.00 +0.0/-0.1 | 7.50 @ 587.6nm | 0.67 | 4.51 | N-SF5 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 12.5mm直径，0.50数值孔径，镀可见光膜，非球面镜片 | 69-859 | 12.50 +0.0/-0.1 | 12.50 @ 587.6nm | 0.50 | 9.35 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 12.5mm直径，0.50数值孔径，镀近红外膜，非球面镜片 | 69-863 | 12.50 +0.0/-0.1 | 12.50 @ 587.6nm | 0.50 | 9.35 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 12.5mm直径，0.50数值孔径，未镀膜，非球面镜片 | 69-855 | 12.50 +0.0/-0.1 | 12.50 @ 587.6nm | 0.50 | 9.35 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 12.5mm直径，0.76数值孔径，镀可见光膜，非球面镜片 | 69-858 | 12.50 +0.0/-0.1 | 9.50 @ 587.6nm | 0.66 | 6.51 | N-SF5 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 12.5mm直径，0.76数值孔径，镀近红外膜，非球面镜片 | 69-862 | 12.50 +0.0/-0.1 | 9.50 @ 587.6nm | 0.66 | 6.51 | N-SF5 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 12.5mm直径，0.76数值孔径，未镀膜，非球面镜片 | 69-854 | 12.50 +0.0/-0.1 | 9.50 @ 587.6nm | 0.66 | 6.51 | N-SF5 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 15mm直径， 0.33数值孔径，镀可见光膜，非球面透镜 | 49-100 | 15.00 +0.0/-0.1 | 22.50 @ 587.6nm | 0.33 | 19.98 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 15mm直径， 0.33数值孔径，镀近红外膜，非球面透镜 | 49-112 | 15.00 +0.0/-0.1 | 22.50 @ 587.6nm | 0.33 | 19.98 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 直径15mm， 0.33 NA 不镀膜， 非球面透镜 | 47-728 | 15.00 +0.0/-0.1 | 22.50 @ 587.6nm | 0.33 | 19.98 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 15mm直径， 0.40数值孔径，镀可见光膜，非球面透镜 | 49-099 | 15.00 +0.0/-0.1 | 18.75 @ 587.6nm | 0.40 | 15.92 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 15mm直径， 0.40数值孔径，镀近红外膜，非球面透镜 | 49-111 | 15.00 +0.0/-0.1 | 18.75 @ 587.6nm | 0.40 | 15.92 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 直径15mm， 0.40 NA 不镀膜， 非球面透镜 | 47-727 | 15.00 +0.0/-0.1 | 18.75 @ 587.6nm | 0.40 | 15.92 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 15mm直径， 0.50数值孔径，镀可见光膜，非球面透镜 | 49-098 | 15.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.50 | 11.54 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 15mm直径， 0.50数值孔径，镀近红外膜，非球面透镜 | 49-110 | 15.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.50 | 11.54 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 直径15mm， 0.50 NA 不镀膜， 非球面透镜 | 47-726 | 15.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.50 | 11.54 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 15mm直径， 0.66数值孔径，镀可见光膜，非球面透镜 | 49-097 | 15.00 +0.0/-0.1 | 11.25 @ 587.6nm | 0.66 | 6.85 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 15mm直径， 0.66数值孔径，镀近红外膜，非球面透镜 | 49-109 | 15.00 +0.0/-0.1 | 11.25 @ 587.6nm | 0.66 | 6.85 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 直径15mm， 0.66 NA 不镀膜， 非球面透镜 | 47-725 | 15.00 +0.0/-0.1 | 11.25 @ 587.6nm | 0.66 | 6.85 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 15mm直径，0.83数值孔径，镀可见光膜，非球面镜片 | 67-250 | 15.00 +0.0/-0.1 | 9.00 @ 587.6nm | 0.83 | 4.81 | N-SF5 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 15mm直径，0.83数值孔径，镀近红外膜，非球面镜片 | 67-257 | 15.00 +0.0/-0.1 | 9.00 @ 587.6nm | 0.83 | 4.81 | N-SF5 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 15mm直径，0.83数值孔径，未镀膜，非球面镜片 | 67-243 | 15.00 +0.0/-0.1 | 9.00 @ 587.6nm | 0.83 | 4.81 | N-SF5 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 20mm直径，0.50数值孔径，镀可见光膜，非球面镜片 | 66-320 | 20.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.50 | 15.19 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 20mm直径，0.50数值孔径，镀近红外膜，非球面镜片 | 66-330 | 20.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.50 | 15.19 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 20mm直径，0.50数值孔径，未镀膜，非球面镜片 | 66-310 | 20.00 +0.0/-0.1 | 20.00 @ 587.6nm | 0.50 | 15.19 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 20mm直径，0.66数值孔径，镀可见光膜，非球面镜片 | 66-319 | 20.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.66 | 9.16 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 20mm直径，0.66数值孔径，镀近红外膜，非球面镜片 | 66-329 | 20.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.66 | 9.16 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 20mm直径，0.66数值孔径，未镀膜，非球面镜片 | 66-309 | 20.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.66 | 9.16 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 20mm直径，0.8数值孔径，镀可见光膜，非球面镜片 | 67-251 | 20.00 +0.0/-0.1 | 12.50 @ 587.6nm | 0.80 | 7.12 | N-SF5 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 20mm直径，0.8数值孔径，镀近红外膜，非球面镜片 | 67-258 | 20.00 +0.0/-0.1 | 12.50 @ 587.6nm | 0.80 | 7.12 | N-SF5 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 20mm直径，0.8数值孔径，未镀膜，非球面镜片 | 67-244 | 20.00 +0.0/-0.1 | 12.50 @ 587.6nm | 0.80 | 7.12 | N-SF5 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| LENS ASPHERE 25MM X 50MM VIS CTD | 33-945 | 25.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.25 | 46.54 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| LENS ASPHERE 25MM X 50MM NIR CTD | 33-946 | 25.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.25 | 46.54 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| LENS ASPHERE 25MM X 50MM UNCTD | 33-944 | 25.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.25 | 46.54 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 25mm直径， 0.33数值孔径，镀可见光膜，非球面透镜 | 49-104 | 25.00 +0.0/-0.1 | 37.50 @ 587.6nm | 0.33 | 33.72 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 25mm直径， 0.33数值孔径，镀近红外膜，非球面透镜 | 49-116 | 25.00 +0.0/-0.1 | 37.50 @ 587.6nm | 0.33 | 33.72 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 直径25mm， 0.33 NA 不镀膜， 非球面透镜 | 47-732 | 25.00 +0.0/-0.1 | 37.50 @ 587.6nm | 0.33 | 33.72 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 25mm直径， 0.40数值孔径，镀可见光膜，非球面透镜 | 49-103 | 25.00 +0.0/-0.1 | 31.25 @ 587.6nm | 0.40 | 27.16 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 25mm直径， 0.40数值孔径，镀近红外膜，非球面透镜 | 49-115 | 25.00 +0.0/-0.1 | 31.25 @ 587.6nm | 0.40 | 27.16 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 直径25mm， 0.40 NA 不镀膜， 非球面透镜 | 47-731 | 25.00 +0.0/-0.1 | 31.25 @ 587.6nm | 0.40 | 27.16 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 25mm直径， 0.50数值孔径，镀可见光膜，非球面透镜 | 49-102 | 25.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.50 | 20.28 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 25mm直径， 0.50数值孔径，镀近红外膜，非球面透镜 | 49-114 | 25.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.50 | 20.28 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 直径25mm， 0.50 NA 不镀膜， 非球面透镜 | 47-730 | 25.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.50 | 20.28 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 25mm直径， 0.66数值孔径，镀可见光膜，非球面透镜 | 49-101 | 25.00 +0.0/-0.1 | 18.75 @ 587.6nm | 0.66 | 12.46 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 25mm直径， 0.66数值孔径，镀近红外膜，非球面透镜 | 49-113 | 25.00 +0.0/-0.1 | 18.75 @ 587.6nm | 0.66 | 12.46 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 直径25mm， 0.66 NA 不镀膜， 非球面透镜 | 47-729 | 25.00 +0.0/-0.1 | 18.75 @ 587.6nm | 0.66 | 12.46 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 25mm直径，0.83数值孔径，镀可见光膜，非球面镜片 | 67-252 | 25.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.83 | 8.42 | N-SF5 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 25mm直径，0.83数值孔径，镀近红外膜，非球面镜片 | 67-259 | 25.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.83 | 8.42 | N-SF5 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 25mm直径，0.83数值孔径，未镀膜，非球面镜片 | 67-245 | 25.00 +0.0/-0.1 | 15.00 @ 587.6nm | 0.83 | 8.42 | N-SF5 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 30mm直径，0.50数值孔径，镀可见光膜，非球面镜片 | 66-322 | 30.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.50 | 22.99 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 30mm直径，0.50数值孔径，镀近红外膜，非球面镜片 | 66-332 | 30.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.50 | 22.99 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 30mm直径，0.50数值孔径，未镀膜，非球面镜片 | 66-312 | 30.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.50 | 22.99 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 30mm直径，0.66数值孔径，镀可见光膜，非球面镜片 | 66-321 | 30.00 +0.0/-0.1 | 22.50 @ 587.6nm | 0.66 | 13.73 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 30mm直径，0.66数值孔径，镀近红外膜，非球面镜片 | 66-331 | 30.00 +0.0/-0.1 | 22.50 @ 587.6nm | 0.66 | 13.73 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 30mm直径，0.66数值孔径，未镀膜，非球面镜片 | 66-311 | 30.00 +0.0/-0.1 | 22.50 @ 587.6nm | 0.66 | 13.73 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 30mm直径，0.86数值孔径，镀可见光膜，非球面镜片 | 67-253 | 30.00 +0.0/-0.1 | 17.50 @ 587.6nm | 0.86 | 9.43 | N-SF5 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 30mm直径，0.86数值孔径，镀近红外膜，非球面镜片 | 67-260 | 30.00 +0.0/-0.1 | 17.50 @ 587.6nm | 0.86 | 9.43 | N-SF5 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 30mm直径，0.86数值孔径，未镀膜，非球面镜片 | 67-246 | 30.00 +0.0/-0.1 | 17.50 @ 587.6nm | 0.86 | 9.43 | N-SF5 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 40mm直径，0.50数值孔径，镀可见光膜，非球面镜片 | 66-324 | 40.00 +0.0/-0.1 | 40.00 @ 587.6nm | 0.50 | 30.68 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 40mm直径，0.50数值孔径，镀近红外膜，非球面镜片 | 66-334 | 40.00 +0.0/-0.1 | 40.00 @ 587.6nm | 0.50 | 30.68 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 40mm直径，0.50数值孔径，未镀膜，非球面镜片 | 66-314 | 40.00 +0.0/-0.1 | 40.00 @ 587.6nm | 0.50 | 30.68 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 40mm直径，0.66数值孔径，镀可见光膜，非球面镜片 | 66-323 | 40.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.66 | 20.60 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 40mm直径，0.66数值孔径，镀近红外膜，非球面镜片 | 66-333 | 40.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.66 | 20.60 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 40mm直径，0.66数值孔径，未镀膜，非球面镜片 | 66-313 | 40.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.66 | 20.60 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 40mm直径，0.80数值孔径，镀可见光膜，非球面镜片 | 67-254 | 40.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.80 | 15.73 | N-SF5 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 40mm直径，0.80数值孔径，镀近红外膜，非球面镜片 | 67-261 | 40.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.80 | 15.73 | N-SF5 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 40mm直径，0.80数值孔径，未镀膜，非球面镜片 | 67-247 | 40.00 +0.0/-0.1 | 25.00 @ 587.6nm | 0.80 | 15.73 | N-SF5 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 50mm直径，0.50数值孔径，镀可见光膜，非球面镜片 | 66-326 | 50.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.50 | 38.33 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 50mm直径，0.50数值孔径，镀近红外膜，非球面镜片 | 66-336 | 50.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.50 | 38.33 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 50mm直径，0.50数值孔径，未镀膜，非球面镜片 | 66-316 | 50.00 +0.0/-0.1 | 50.00 @ 587.6nm | 0.50 | 38.33 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 50mm直径，0.66数值孔径，镀可见光膜，非球面镜片 | 66-325 | 50.00 +0.0/-0.1 | 37.50 @ 587.6nm | 0.66 | 25.74 | L-BAL35 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 50mm直径，0.66数值孔径，镀近红外膜，非球面镜片 | 66-335 | 50.00 +0.0/-0.1 | 37.50 @ 587.6nm | 0.66 | 25.74 | L-BAL35 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 50mm直径，0.66数值孔径，未镀膜，非球面镜片 | 66-315 | 50.00 +0.0/-0.1 | 37.50 @ 587.6nm | 0.66 | 25.74 | L-BAL35 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 50mm直径，0.83数值孔径，镀可见光膜，非球面镜片 | 67-255 | 50.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.83 | 18.04 | N-SF5 | 587.6 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 |
| 50mm直径，0.83数值孔径，镀近红外膜，非球面镜片 | 67-262 | 50.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.83 | 18.04 | N-SF5 | 587.6 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 |
| 50mm直径，0.83数值孔径，未镀膜，非球面镜片 | 67-248 | 50.00 +0.0/-0.1 | 30.00 @ 587.6nm | 0.83 | 18.04 | N-SF5 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 75mm Dia., 0.33 Numerical Aperture Uncoated, Aspheric Lens | 15-000 | 75.00 +0.0/-0.1 | 112.50 @ 587.6nm | 0.33 | 101.42 | N-BK7 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 75mm Dia., 0.33 Numerical Aperture VIS Coated, Aspheric Lens | 22-704 | 75.00 +0.0/-0.1 | 112.50 @ 587.6nm | 0.33 | 101.42 | N-BK7 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 | |
| 75mm Dia., 0.33 Numerical Aperture NIR Coated, Aspheric Lens | 22-714 | 75.00 +0.0/-0.1 | 112.50 @ 587.6nm | 0.33 | 101.42 | N-BK7 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 | |
| 75mm Dia., 0.50 Numerical Aperture Uncoated, Aspheric Lens | 14-997 | 75.00 +0.0/-0.1 | 75.00 @ 587.6nm | 0.50 | 58.25 | N-BK7 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 75mm Dia., 0.50 Numerical Aperture VIS Coated, Aspheric Lens | 22-705 | 75.00 +0.0/-0.1 | 75.00 @ 587.6nm | 0.50 | 58.25 | N-BK7 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 | |
| 75mm Dia., 0.50 Numerical Aperture NIR Coated, Aspheric Lens | 22-715 | 75.00 +0.0/-0.1 | 75.00 @ 587.6nm | 0.50 | 58.25 | N-BK7 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 | |
| 75mm Dia., 0.63 Numerical Aperture Uncoated, Aspheric Lens | 14-994 | 75.00 +0.0/-0.1 | 60.00 @ 587.6nm | 0.63 | 45.77 | N-SF5 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 75mm Dia., 0.63 Numerical Aperture VIS Coated, Aspheric Lens | 22-706 | 75.00 +0.0/-0.1 | 60.00 @ 587.6nm | 0.63 | 45.77 | N-SF5 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 | |
| 75mm Dia., 0.63 Numerical Aperture NIR Coated, Aspheric Lens | 22-716 | 75.00 +0.0/-0.1 | 60.00 @ 587.6nm | 0.63 | 45.77 | N-SF5 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 | |
| 100mm Dia., 0.33 Numerical Aperture Uncoated, Aspheric Lens | 15-009 | 100.00 +0.0/-0.1 | 150.00 @ 587.6nm | 0.33 | 135.50 | N-BK7 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 100mm Dia., 0.33 Numerical Aperture VIS Coated, Aspheric Lens | 22-707 | 100.00 +0.0/-0.1 | 150.00 @ 587.6nm | 0.33 | 135.50 | N-BK7 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 | |
| 100mm Dia., 0.33 Numerical Aperture NIR Coated, Aspheric Lens | 22-717 | 100.00 +0.0/-0.1 | 150.00 @ 587.6nm | 0.33 | 135.50 | N-BK7 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 | |
| 100mm Dia., 0.50 Numerical Aperture Uncoated, Aspheric Lens | 15-006 | 100.00 +0.0/-0.1 | 100.00 @ 587.6nm | 0.50 | 78.18 | N-BK7 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 100mm Dia., 0.50 Numerical Aperture VIS Coated, Aspheric Lens | 22-708 | 100.00 +0.0/-0.1 | 100.00 @ 587.6nm | 0.50 | 78.18 | N-BK7 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 | |
| 100mm Dia., 0.50 Numerical Aperture NIR Coated, Aspheric Lens | 22-718 | 100.00 +0.0/-0.1 | 100.00 @ 587.6nm | 0.50 | 78.18 | N-BK7 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 | |
| 100mm Dia., 0.63 Numerical Aperture Uncoated, Aspheric Lens | 15-003 | 100.00 +0.0/-0.1 | 80.00 @ 587.6nm | 0.63 | 61.35 | N-SF5 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 100mm Dia., 0.63 Numerical Aperture VIS Coated, Aspheric Lens | 22-709 | 100.00 +0.0/-0.1 | 80.00 @ 587.6nm | 0.63 | 61.35 | N-SF5 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 | |
| 100mm Dia., 0.63 Numerical Aperture NIR Coated, Aspheric Lens | 22-719 | 100.00 +0.0/-0.1 | 80.00 @ 587.6nm | 0.63 | 61.35 | N-SF5 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 | |
| 150mm Dia., 0.33 Numerical Aperture Uncoated, Aspheric Lens | 15-018 | 150.00 +0.0/-0.1 | 225.00 @ 587.6nm | 0.33 | 204.04 | N-BK7 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 150mm Dia., 0.33 Numerical Aperture VIS Coated, Aspheric Lens | 22-710 | 150.00 +0.0/-0.1 | 225.00 @ 587.6nm | 0.33 | 204.04 | N-BK7 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 | |
| 150mm Dia., 0.33 Numerical Aperture NIR Coated, Aspheric Lens | 22-720 | 150.00 +0.0/-0.1 | 225.00 @ 587.6nm | 0.33 | 204.04 | N-BK7 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 | |
| 150mm Dia., 0.50 Numerical Aperture Uncoated, Aspheric Lens | 15-015 | 150.00 +0.0/-0.1 | 150.00 @ 587.6nm | 0.50 | 118.16 | N-BK7 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 150mm Dia., 0.50 Numerical Aperture VIS Coated, Aspheric Lens | 22-711 | 150.00 +0.0/-0.1 | 150.00 @ 587.6nm | 0.50 | 118.16 | N-BK7 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 | |
| 150mm Dia., 0.50 Numerical Aperture NIR Coated, Aspheric Lens | 22-721 | 150.00 +0.0/-0.1 | 150.00 @ 587.6nm | 0.50 | 118.16 | N-BK7 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 | |
| 150mm Dia., 0.63 Numerical Aperture Uncoated, Aspheric Lens | 15-012 | 150.00 +0.0/-0.1 | 120.00 @ 587.6nm | 0.63 | 92.86 | N-SF5 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 | |
| 150mm Dia., 0.63 Numerical Aperture VIS Coated, Aspheric Lens | 22-712 | 150.00 +0.0/-0.1 | 120.00 @ 587.6nm | 0.63 | 92.86 | N-SF5 | 1.2λ | BBAR (425-675nm) | Ravg ≤1.5% @ 425 - 675nm | ≤5 | 60-40 | |
| 150mm Dia., 0.63 Numerical Aperture NIR Coated, Aspheric Lens | 22-722 | 150.00 +0.0/-0.1 | 120.00 @ 587.6nm | 0.63 | 92.86 | N-SF5 | 1.2λ | BBAR (600-1050nm) | Ravg ≤1.5% @ 600 - 1050nm | ≤5 | 60-40 | |
| 200mm Dia., 0.33 Numerical Aperture Uncoated, Aspheric Lens | 15-027 | 200.00 +0/-0.1 | 300.00 @ 587.6nm | 0.33 | 272.57 | N-BK7 | 587.6 | 1.2λ | Uncoated | ≤5 | 60-40 |
产品概览
TECHSPEC®非球面透镜备有低f#，以带来最佳光线收集性能。我们提供完整的设计数据，能轻易将这些非球面透镜整合到光学系统中。这些透镜均经过计算机优化以消除球差，同时最大限度地减少较高级别的像差。VIS镀膜选项能为波长介于425 – 675nm的光线提供小于1.5%的反射度。NIR镀膜选项则能为波长介于600 – 1050nm的光线提供小于1.5%的反射度。有关定制非球面透镜以及批量定价的详细信息，请联系我们的销售部门。
技术数据
