消色差透镜套件

消色差透镜套件

￥ 0.00
0.00

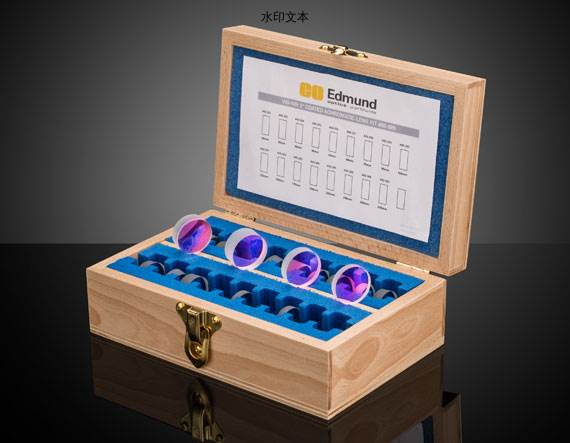

TECHSPEC® 消色差透镜套件包含我们最高品质的光学元件，并配有各种有效焦距以适应我们的光学元件安装。包含的所有透镜都具有抗反射镀膜。有关每组套件中每个透镜的完整规格，请参阅下面的技术信息表。


  • 有直径 12.5mm 和 25mm 的套件可选

  • 可选MgF2, VIS 0°, 以及 VIS-NIR 膜层

  • 与套管系统和光学笼式系统等光机械元件兼容

  • 请注意: 包装方式可能有改变

                                        产品

标题产品编码Dia. (mm)涂层涂层规格焦距包括 (mm)透镜数目波长范围 (nm)Contents of Kit

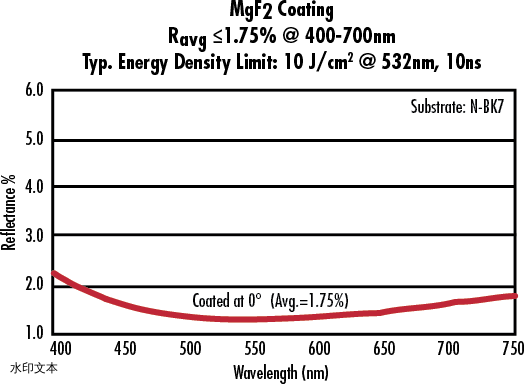

12.5mm直径，MgF2镀膜，消色差镜头套装54-67312.50 MgF2 (400-700nm) Ravg ≤1.75% @ 400 - 700nm 14, 20, 25, 30, 35, 40, 45, 50, 60, 75, 80, 90, 100 13 400 - 700 Achromatic Lens Kit

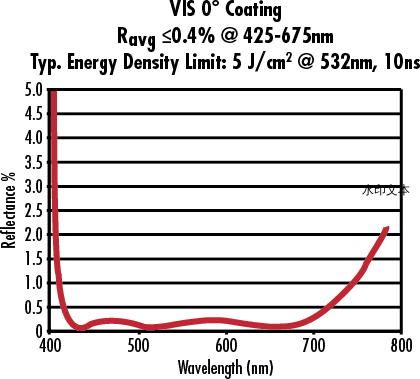

12.5mm直径消色差透镜系列套装，可见光0°镀膜48-54012.50 VIS 0° (425-675nm) Ravg ≤0.4% @ 425 - 675nm 14, 20, 25, 30, 35, 40, 45, 50, 60, 75, 80, 90, 100 13.00 425 - 675 Achromatic Lens Kit

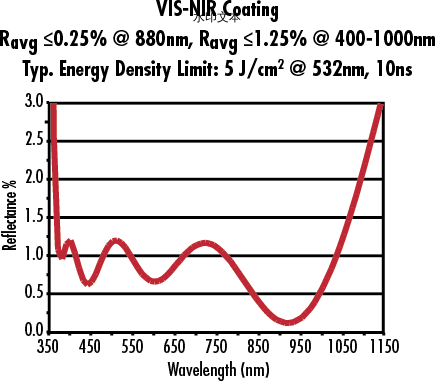

12.5mm直径，镀可见光-近红外膜，消色差透镜套装65-98412.50 VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm   Ravg ≤1.25% @ 400 - 870nm   R avg ≤1.25% @ 890 - 1000nm 14, 20, 25, 30, 35, 40, 45, 50, 60, 75, 80, 90, 100 13.00 400 - 1000 Achromatic Lens Kit
25mm直径，MgF2镀膜，消色差镜片套装52-30625.00 MgF2 (400-700nm) Ravg ≤1.75% @ 400 - 700nm 30, 35, 40, 45, 50, 60, 75, 85, 100, 125, 150, 175, 200, 225, 250, 300, 400 17.00 400 - 700 Achromatic Lens Kit
25.0mm直径消色差透镜系列套装，可见光0°镀膜48-61525.00 VIS 0° (425-675nm) Ravg ≤0.4% @ 425 - 675nm 30, 35, 40, 45, 50, 60, 75, 85, 100, 125, 150, 175, 200, 225, 250, 300, 400 17.00 425 - 675 Achromatic Lens Kit
25.0mm直径，镀可见光-近红外膜，消色差透镜套装65-98525.00 VIS-NIR (400-1000nm) Rabs ≤0.25% @ 880nm   Ravg ≤1.25% @ 400 - 870nm   Ravg ≤1.25% @ 890 - 1000nm 30, 35, 40, 45, 50, 60, 75, 85, 100, 125, 150, 175, 200, 225, 250, 300, 400 17.00 400 - 1000 Achromatic Lens Kit


                                         技术数据


12.5mm Diameter Achromatic Lens Kits
Lens SpecificationsCoating Options
Effective Focal Length EFLBack Focal Length BFLf/#MgF2 CoatingVIS 0° CoatingVIS-NIR Coating
14mm9.92mm1.1#45-209#47-660#49-321
20mm16.45mm1.6#32-309#47-661#49-322
25mm21.47mm2.0#32-311#47-662#49-323
30mm26.12mm2.4#32-313#47-663#49-324
35mm32.5mm2.8#45-210#47-664#49-325
40mm37.54mm3.2#32-315#47-665#49-326
45mm42.52mm3.6#45-136#47-666#49-327
50mm47.61mm4.0#32-317#47-667#49-328
60mm57.59mm4.8#45-137#47-668#49-329
75mm72.35mm6.0#32-882#47-669#49-330
80mm78.40mm6.4#45-409#47-670#49-331
90mm88.47mm7.2#45-410#47-671#49-332
100mm97.92mm8.0#45-265#47-672#49-333
25mm Diameter Achromatic Lens Kits
Lens SpecificationsCoating Options
Effective Focal Length EFLBack Focal length BFLf/#MgF2 CoatingVIS 0° CoatingVIS-NIR Coating
30.0mm22.23mm1.2#45-211#47-633#49-352
35.0mm27.55mm1.4#32-319#47-634#49-353
40.0mm33.26mm1.6#32-321#47-635#49-354
45.0mm39.28mm1.8#45-212#47-636#49-355
50.0mm43.53mm2#32-323#47-637#49-356
60.0mm52.23mm2.4#32-724#47-638#49-357
75.0mm70.39mm3#32-325#47-639#49-358
85.0mm81.12mm3.4#45-213#47-640#49-359
100.0mm95.92mm4#32-327#47-641#49-360
125.0mm120.89mm5#32-492#47-642#49-361
150.0mm146.10mm6#32-494#47-643#49-362
175.0mm170.84mm7#32-884#47-644#49-363
200.0mm194.14mm8#32-917#47-645#49-364
225.0mm222.69mm9#45-214#47-646#49-365
250.0mm243.63mm10#32-919#47-647#49-366
300.0mm297.73mm12#45-215#47-649#49-368
400.0mm397.73mm16#45-216#47-650#49-369
