标准色卡

标准色卡

￥ 0.00
0.00


标准色卡具有独特的测试图案，经过科学设计可帮助确定任何色彩呈现系统的真实色彩平衡或光学密度。它是一个行业标准，提供了一个非主观的比较，其 "测试图案 "由科学准备的方格组成，从自然色到灰度都有。每种颜色在可见光谱的所有部分都会以相同的方式反射光线，从而在不同的照明选项中保持颜色的一致性。标准色卡有亮光和哑光两种色块，亮光色块的动态范围更大，但照明几何形状有限；哑光色块的动态范围较小，但在照明几何形状较窄的情况下更适用。这些标准色卡的尺寸从几分之一英寸到标准 A4 信纸大小不等，因此非常适合光谱分析、机器视觉、摄影、图形艺术、电子出版业和电视行业等各种应用。


  • 测试真实的色彩平衡

  • 包括自然色、色度色、三原色以及灰度色

  • 多达 30 个科学设计的色块

                                     产品

标题产品编码长度（英寸）厚度（英寸）厚度 (mm)宽度（英寸）补丁数目注意 色块大小
光泽， 微色卡68-7671.625
1.52 1.375 30.00 All 12 Grayscale Patches Gloss. All 18 Color Patches Matte.  Product is intended for visual evaluation of resolution, not for objective measurement of resolution. It may be possible that small scratches or blemishes may appear on product and will not affect performance. 1/4"
磨砂面，Micro 色板87-4201.625
1.52 1.375 30.00 All 12 Grayscale Patches Matte. All 18 Color Patches Matte.  Product is intended for visual evaluation of resolution, not for objective measurement of resolution. It may be possible that small scratches or blemishes may appear on product and will not affect performance. 1/4"
光泽， 纳米色卡68-7680.688
1.52 0.813 30.00 All 12 Grayscale Patches Gloss. All 18 Color Patches Matte.  Product is intended for visual evaluation of resolution, not for objective measurement of resolution. It may be possible that small scratches or blemishes may appear on product and will not affect performance. 1/8"
磨砂面，Nano 色板87-4210.688
1.52 0.813 30.00 All 12 Grayscale Patches Matte. All 18 Color Patches Matte.  Product is intended for visual evaluation of resolution, not for objective measurement of resolution. It may be possible that small scratches or blemishes may appear on product and will not affect performance. 1/8"
光泽，高灵敏度色卡87-4130.375
1.52 0.4375 30.00 All 12 Grayscale Patches Gloss. All 18 Color Patches Matte.  Product is intended for visual evaluation of resolution, not for objective measurement of resolution. It may be possible that small scratches or blemishes may appear on product and will not affect performance. 1/16"
磨砂面，Pico 色板87-4140.375
1.52 0.4375 30.00 All 12 Grayscale Patches Matte. All 18 Color Patches Matte.  Product is intended for visual evaluation of resolution, not for objective measurement of resolution. It may be possible that small scratches or blemishes may appear on product and will not affect performance. 1/16"

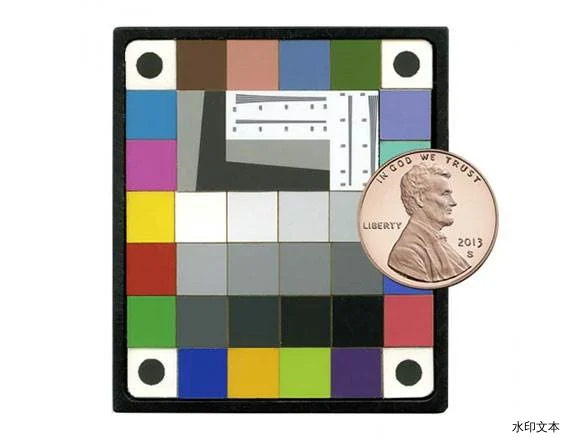

Rez Checker Nano, Matte14-2811.00
1.52 0.875 30 12 Grayscale Patches are Matte Finish. 18 Color Patches are Matte Finish.  Product is intended for visual evaluation of resolution, not for objective measurement of resolution. It may be possible that small scratches or blemishes may appear on product and will not affect performance. 1/8"
Rez Checker Nano, Gloss14-2801.00
1.52 0.875 30 12 Grayscale Patches are Gloss Finish. 18 Color Patches are Matte Finish.  Product is intended for visual evaluation of resolution, not for objective measurement of resolution. It may be possible that small scratches or blemishes may appear on product and will not affect performance. 1/8"
光泽， Rez色卡87-4221.875
1.52 1.625 30 12 Grayscale Patches are Gloss Finish. 18 Color Patches are Matte Finish.  Product is intended for visual evaluation of resolution, not for objective measurement of resolution. It may be possible that small scratches or blemishes may appear on product and will not affect performance. 1/4"
磨砂 Rez颜色检测板87-4231.875
1.52 1.625 30 12 Grayscale Patches are Gloss Finish. 18 Color Patches are Matte Finish.  Product is intended for visual evaluation of resolution, not for objective measurement of resolution. It may be possible that small scratches or blemishes may appear on product and will not affect performance. 1/4"

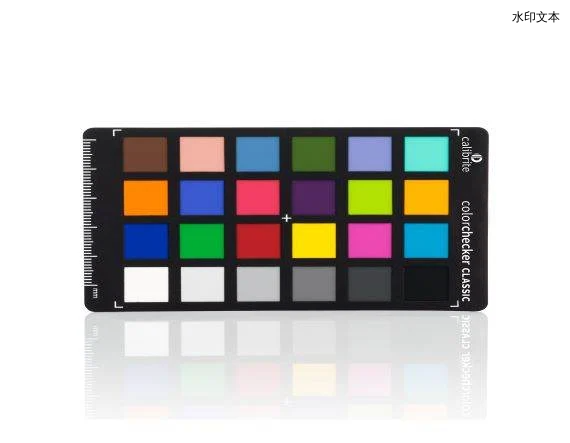

Colorchecker Classic Mini19-9732.5 0.2
4.3 24.00
